UACC-Cable-DoorLockRelay Ubiquiti Door Lock Relay Cable

From £110.18 GBP

Pair Options

1-Pair Relay Cable 2-Pair Relay Cable

Description

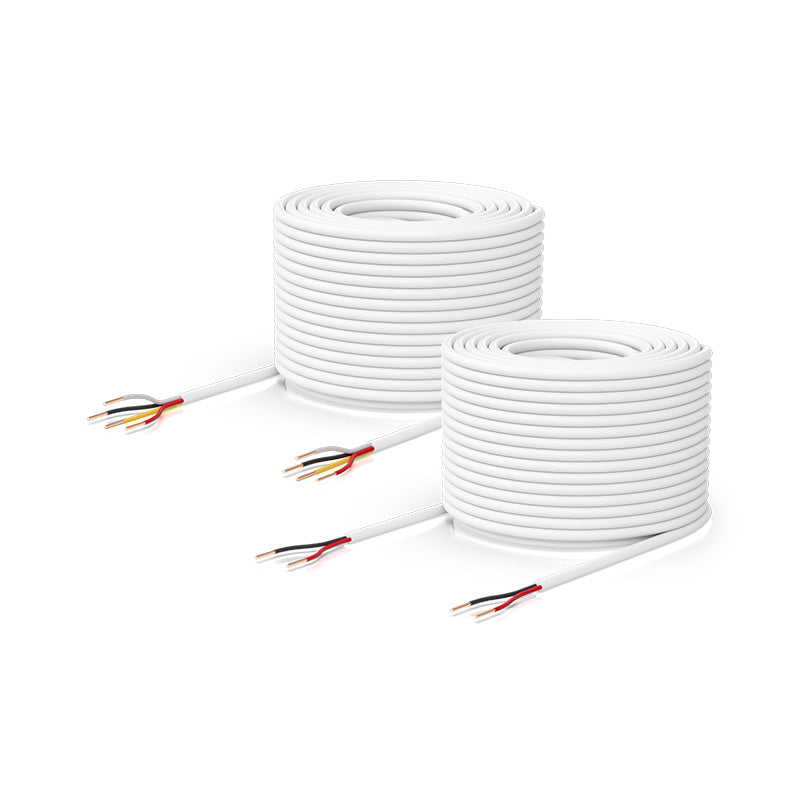

A 500-foot (152.4 m) spool of one or two-pair, low-voltage cable.

Features:

1-Pair Relay Cable: Connects an electric/magnetic lock to an Access Hub

2-Pair Relay Cable: Connects an electric/magnetic lock and door position sensor to an Access Hub

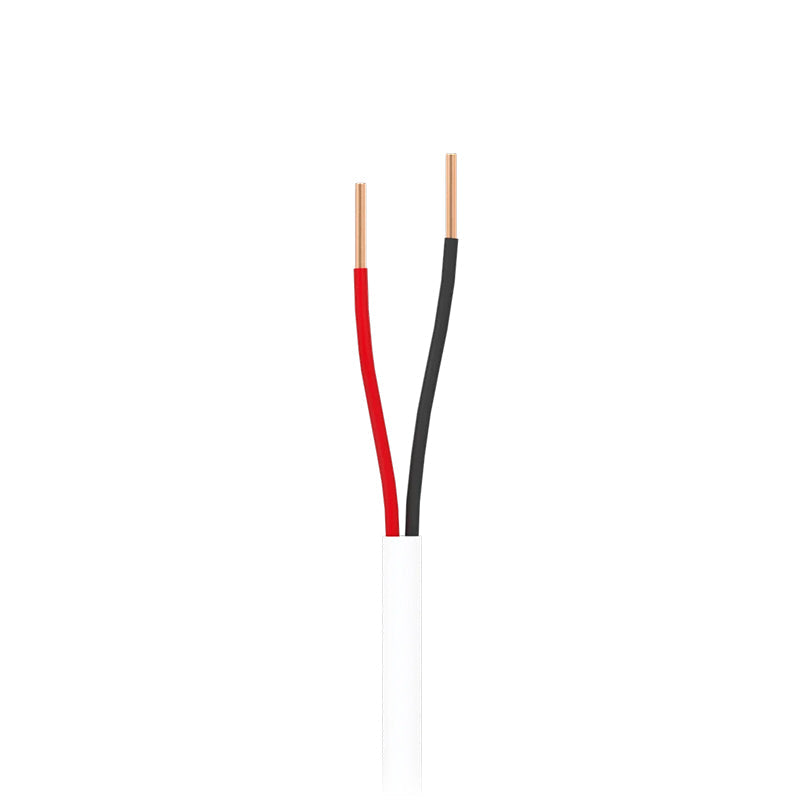

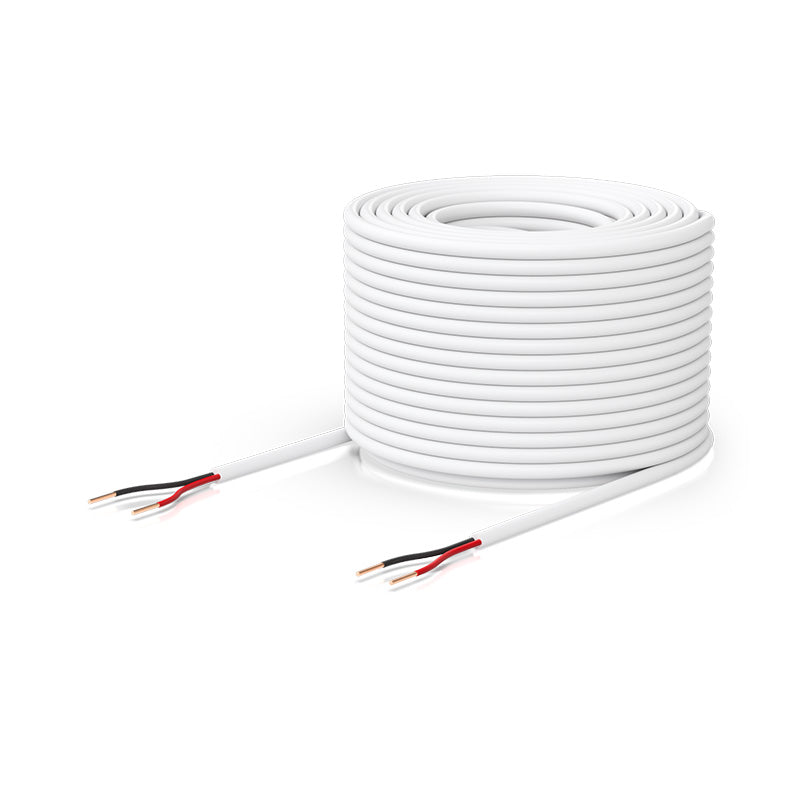

1-Pair Relay Cable:
— (2) 18 AWG conductors for an electric/magnetic lock

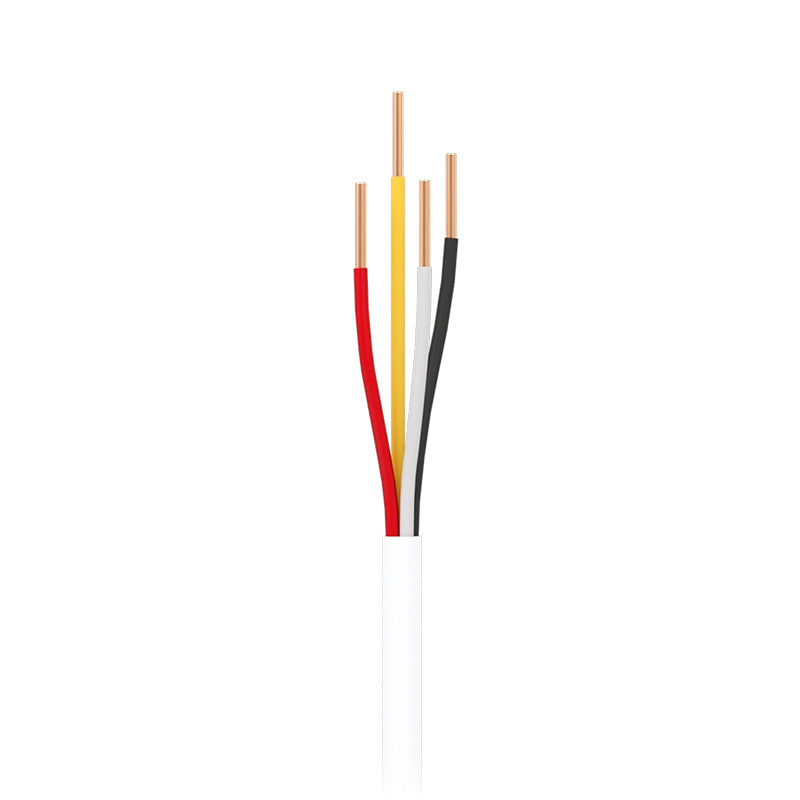

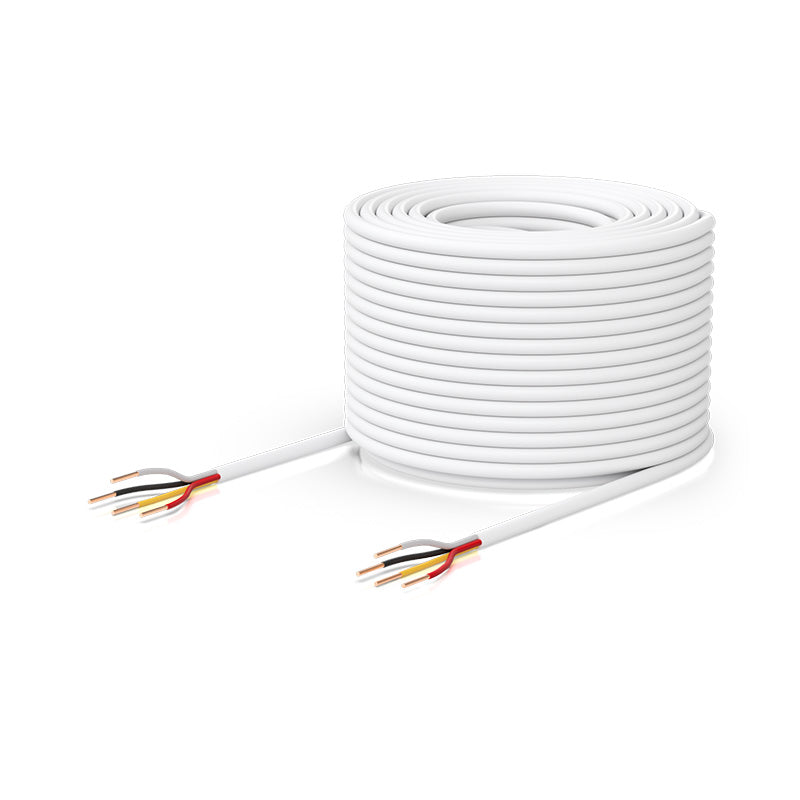

2-Pair Relay Cable:
— (2) 18 AWG conductors for an electric/magnetic lock
— (2) 22 AWG conductors for a door position sensor

Cable length 152.4 m

Plenum-rated

Specifications16 specifications · 1 sections

Overview
Length	152.4 m (500 ft)
Material	Conductor: Solid bare copper / Jacket: Thermoplastic elastomer (TPE) / Insulation: Semi-rigid polyvinyl chloride (SR-PVC)
Insulation	UACC-Cable-DoorLockRelay-2P: black/red (18AWG), amber/white (22AWG) / UACC-Cable-DoorLockRelay-1P: black/red (18AWG)
Current Rating	18AWG: 2A for 500 ft length / 22AWG: 1A for 500 ft length
Flame Rating	VW-1
Conductor Wire Gauge	UACC-Cable-DoorLockRelay-2P: 18/22 AWG / UACC-Cable-DoorLockRelay-1P: 18 AWG
Weight	UACC-Cable-DoorLockRelay-2P: 5.6 kg (12.3 lb) / UACC-Cable-DoorLockRelay-1P: 4.58 kg (10.1 lb)
Cable · Jacket Outer Diameter	UACC-Cable-DoorLockRelay-2P: 4.5 mm (0.18") / UACC-Cable-DoorLockRelay-1P: 4.2 mm (0.17")
Cable · Jacket Color	White
Cable · Bend Radius	UACC-Cable-DoorLockRelay-2P: 56 mm (2.2") / UACC-Cable-DoorLockRelay-1P: 33 mm (1.3")
Pulling Tension	UACC-Cable-DoorLockRelay-2P: 24.2 kgf / UACC-Cable-DoorLockRelay-1P: 16.4 kgf
Conductor DCR	UACC-Cable-DoorLockRelay-2P: 23.2 ohm/km (18AWG), 59.4 ohm/km (22AWG) / UACC-Cable-DoorLockRelay-1P: 23.2 ohm/km (18AWG)
Supported Voltage Range	36V DC
Number of Conductors	UACC-Cable-DoorLockRelay-2P: 4 / UACC-Cable-DoorLockRelay-1P: 2
Ambient Storage Temperature	-45 to 65° C (-49 to 149° F)
Ambient Operating Temperature	-45 to 65° C (-49 to 149° F)

Source: Ubiquiti technical specifications, checked 28 Oct 2026.Model UACC-Cable-DoorLockRelay-1P · Ubiquiti's spec sheet
