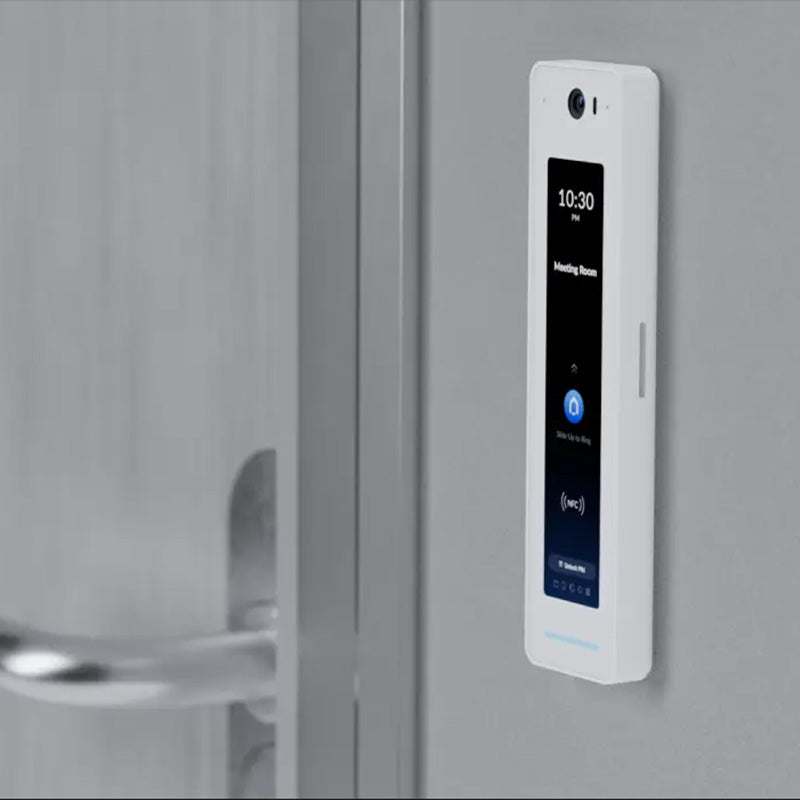

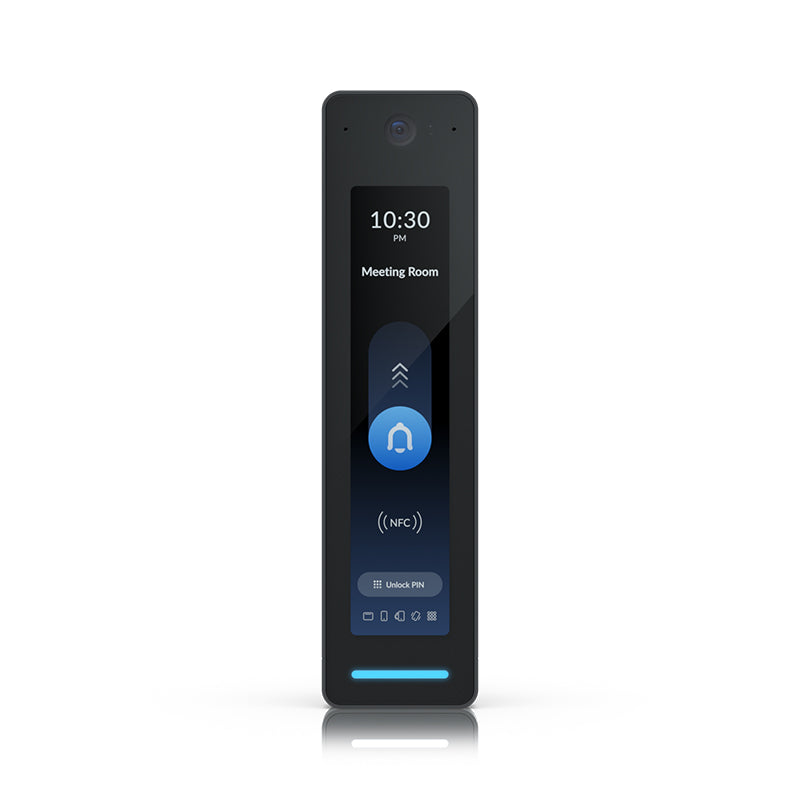

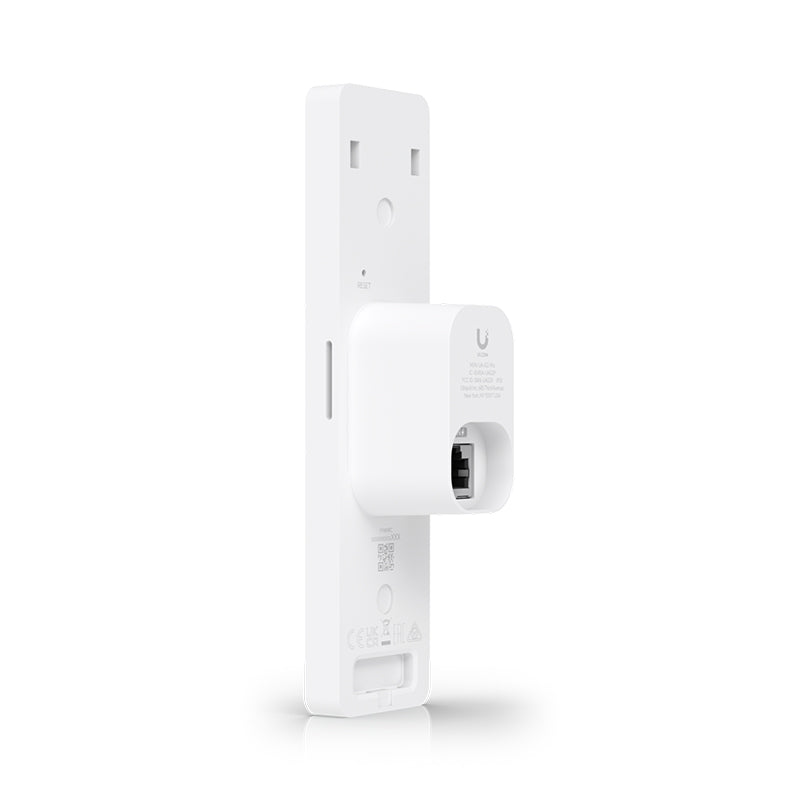

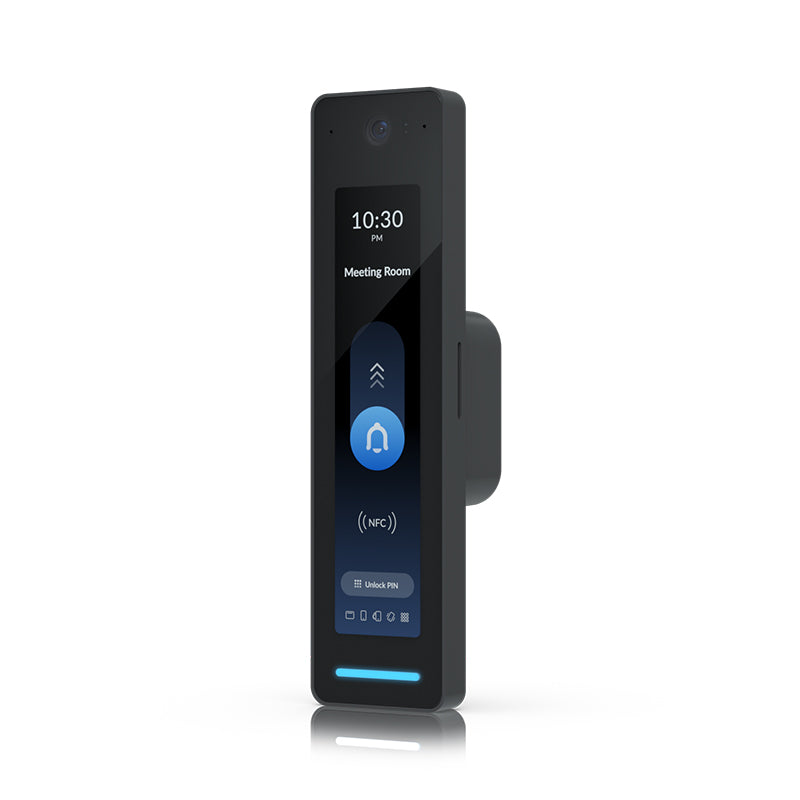

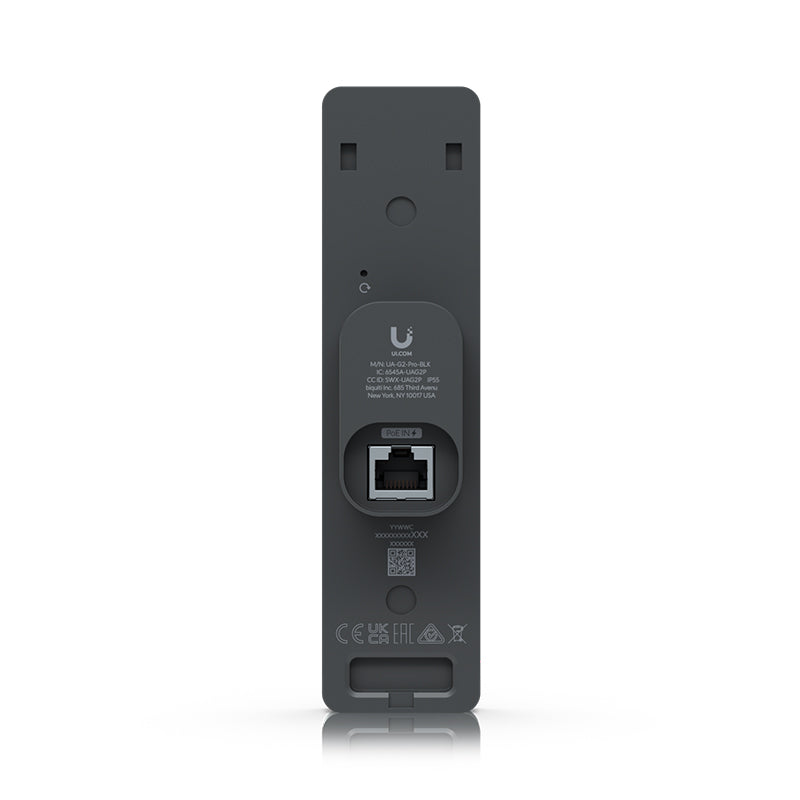

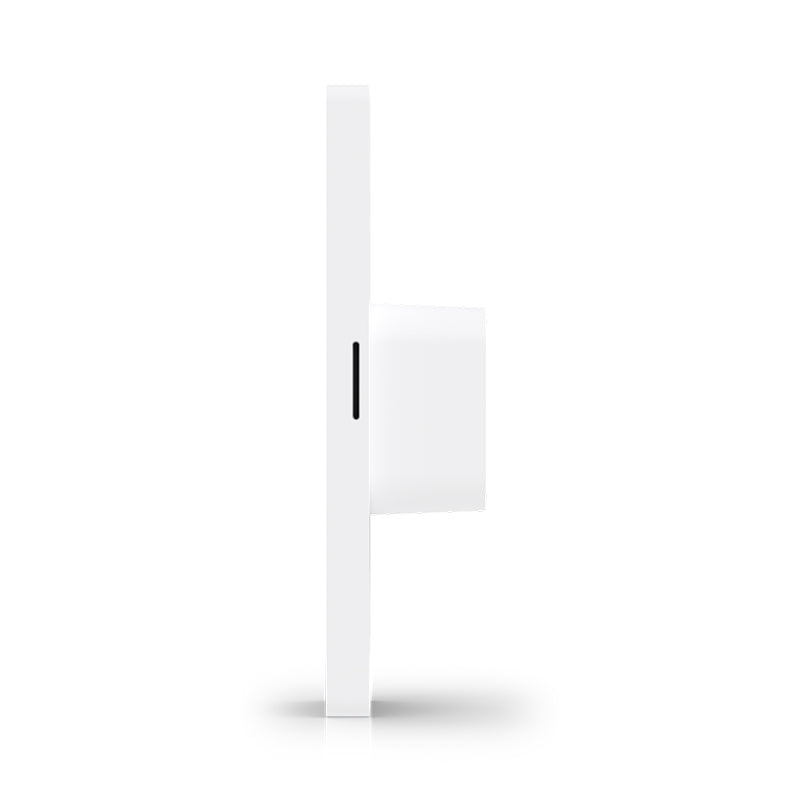

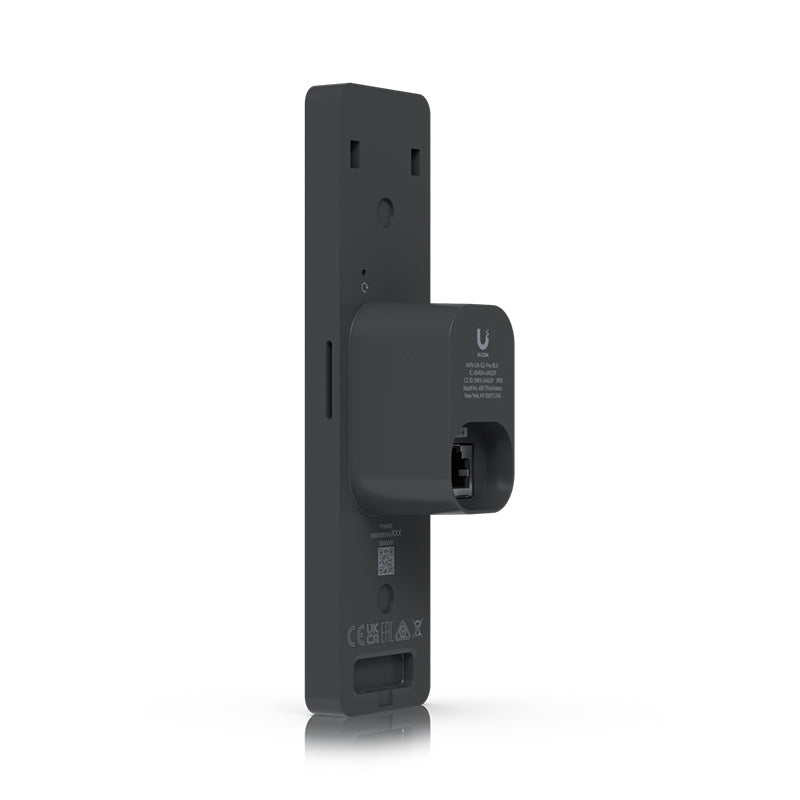

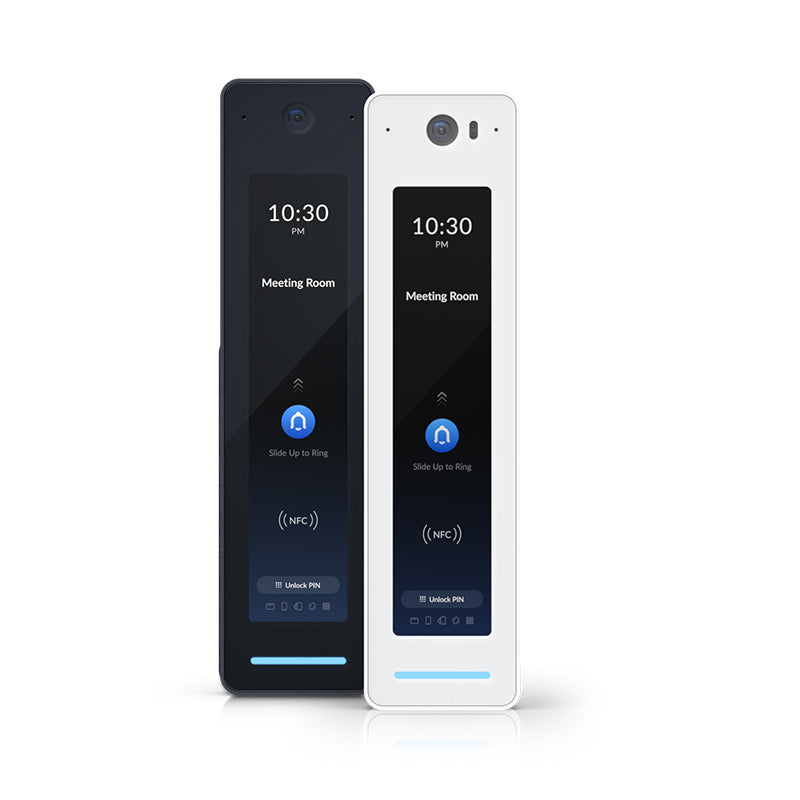

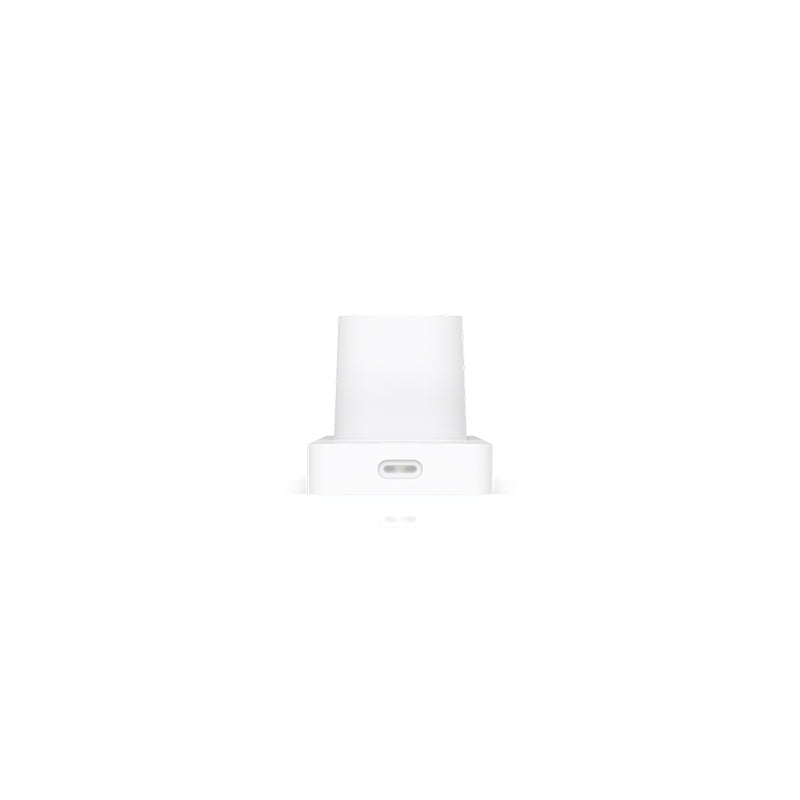

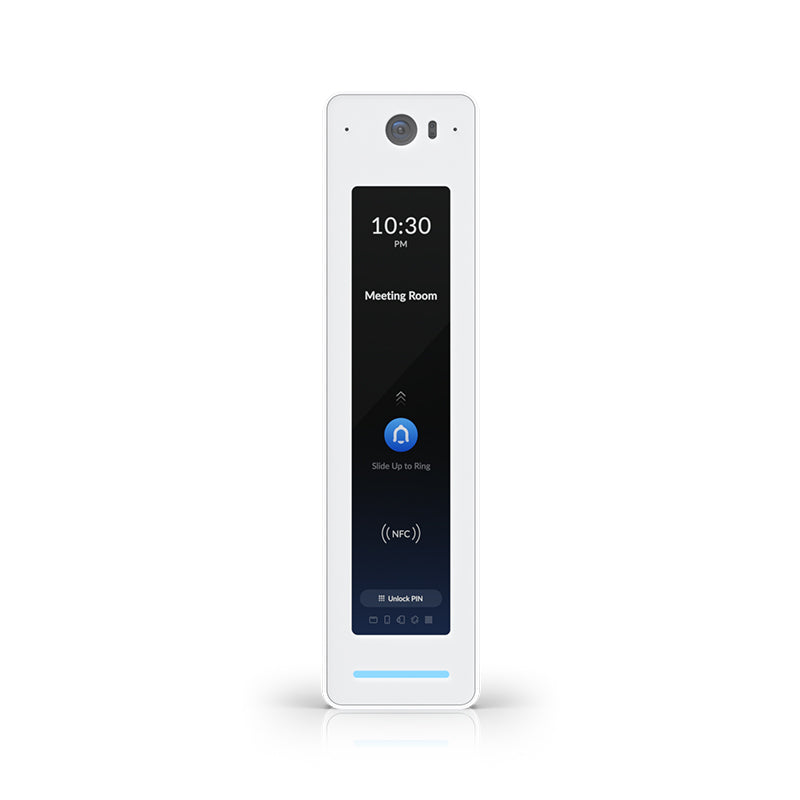

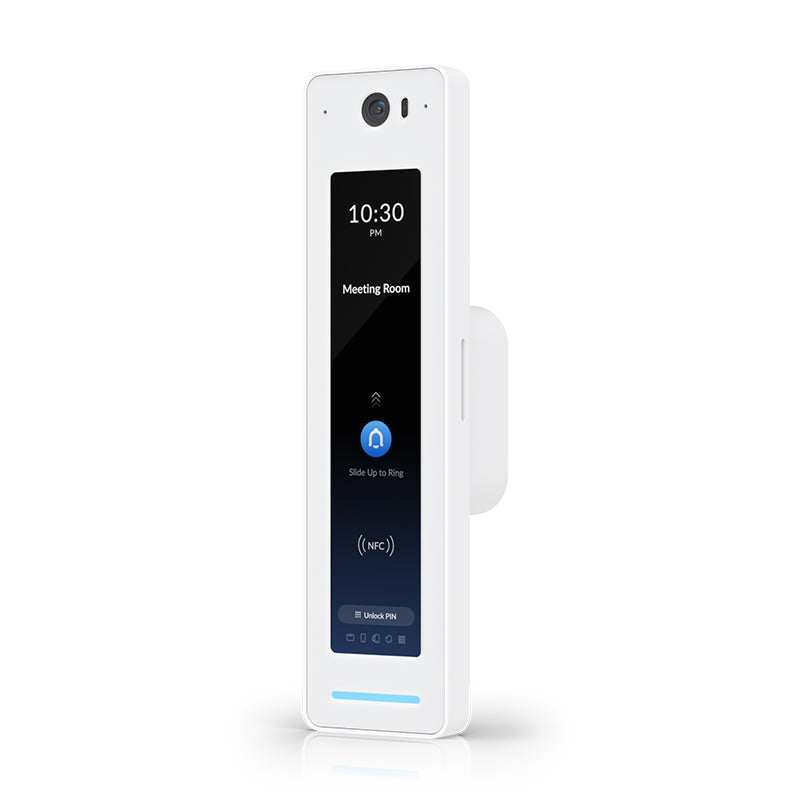

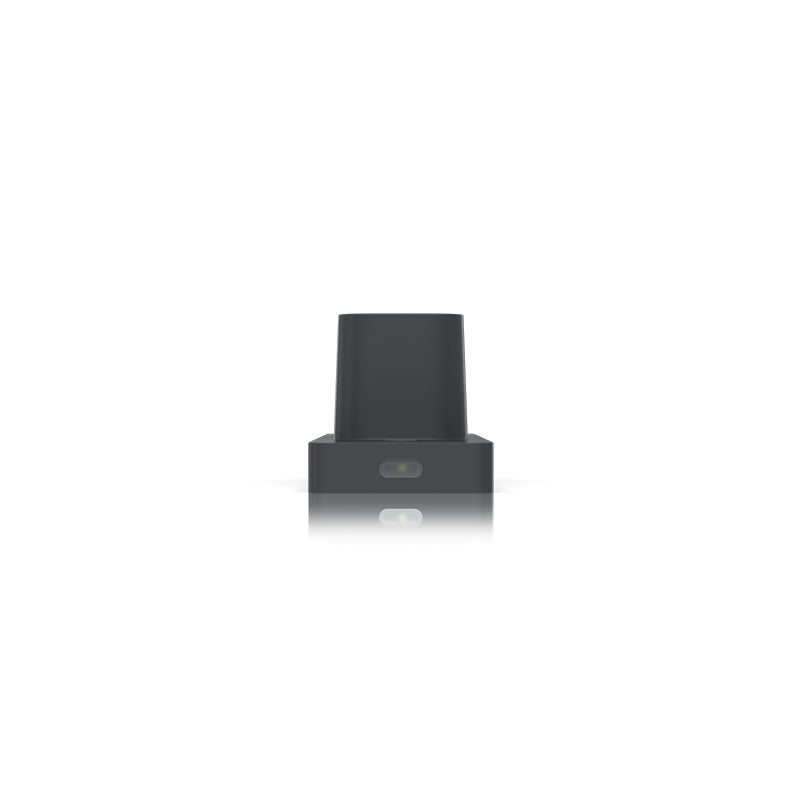

Manufacturer's photos. Where a power lead is pictured, a UK one is provided.
UA-G2-Pro Ubiquiti UniFi Access Reader G2 Professional
Description
Description
Second-generation NFC card reader and intercom.
The Ubiquiti UniFi Access Reader G2 Pro is a cutting-edge access control solution that combines convenience, security, and versatility. Unlock your doors effortlessly using an NFC card or the UniFi Identity mobile app, offering flexible access options for users. The built-in doorbell feature triggers an intercom system with a video feed of the visitor, ensuring clear communication and ADA-compliant visibility. With PIN unlocking on the screen, an extra layer of authentication enhances security.
Seamless integration is made possible by connecting the UniFi Access Reader G2 Pro to the UniFi Access Hub using Power over Ethernet (PoE). This eliminates the need for additional power supplies and streamlines the installation process. Rain-resistant with an IP55 rating and capable of operating in temperatures from -10 to 40° C, this reader is suitable for indoor and outdoor use.
Features:
Unlock using an NFC card or UniFi Identity mobile app
Doorbell to unlock, triggering the intercom with a video of a visitor
Video works at ADA-compliant mounting height
PIN unlocking on the screen
Connects to UniFi Access Hub using PoE
IP55 rain resistance (-10 to 40° C)
Specifications39 specifications · 4 sections
| Overview | |
|---|---|

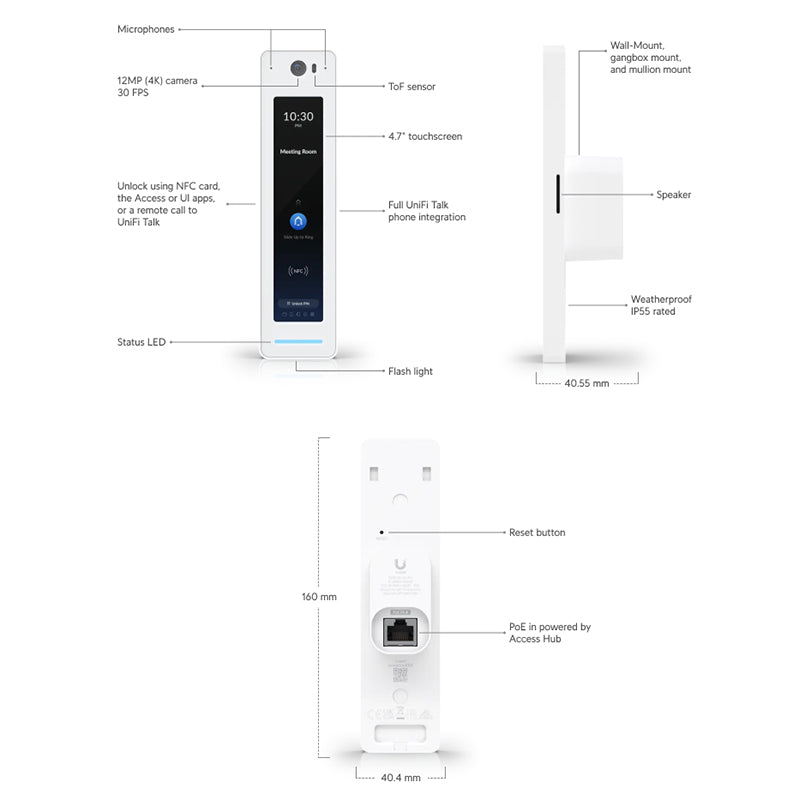

| Dimensions | 160 x 40.4 x 40.55 mm / (6.3 x 1.59 x 1.6") |
| UniFi Application Suite | Protect / Access |
| Weatherproofing | IP55 |
| UL 294 Level | Destructive attack: Level I / Line security: Level I / Endurance: Level I / Standby power: Level I |
| Mechanical | |
| Weight | 136 g (4.8 oz) |
| Enclosure Material | Polycarbonate, glass |
| Mount Material | Aluminum alloy |

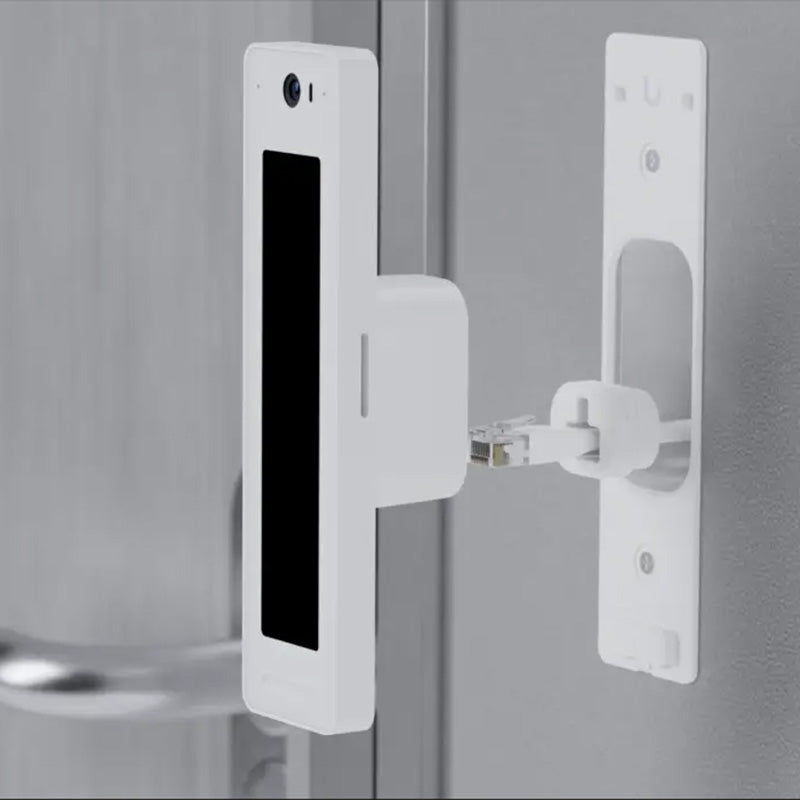

| Mounting | Wall, gang-box mount (Included) / Angle mount, junction box (Optional) |
| Hardware | |
| Indoor and Outdoor Use | Yes |

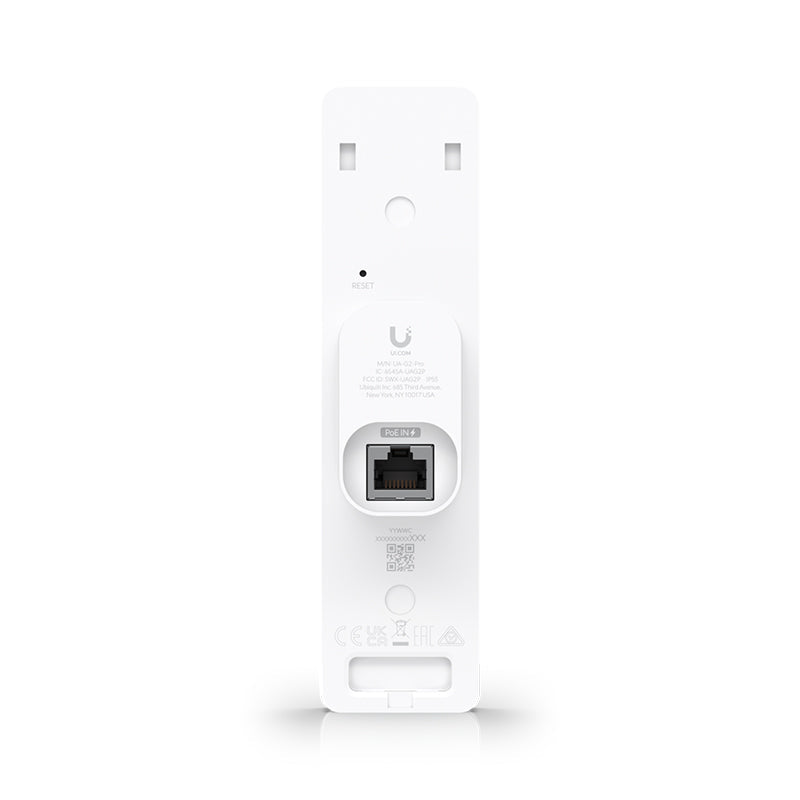

| Networking Interface | (1) GbE RJ45 port |
| Connectivity | BLE 4.2 / NFC |
| Power Method | PoE / UL 294 Power-limited Class 2 PSU / UL 60950-1/62368-1 LPS/PS2 PSU |
| Max. Power Consumption | 6W |
| Supported Voltage Range | 48V DC |
| ESD/EMP Protection | Air: ± 15kV, contact: ± 8kV |
| Video · Max. Frame Rate | 30 FPS |
| Video · Resolution | 2MP 1200 x 1600 (3:4) |
| Optics · Resolution | 12 MP (3072 × 4096) |
| Optics · Field of View | H: 98.6°, V: 125.7°, D: 157.8° |
| Sensors | Proximity sensor |
| Display · Size | 120 mm (4.7") diagonal |
| Display · Screen Technology | Capacitive touch |
| Display · Luminance | 480 nits (Typical) |
| Display · Screen Orientation | Portrait |
| Display · Resolution | 1280 x 286 px |
| LEDs | R/G/B/W/Amber <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> |
| Button | (1) Factory reset |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm (1.18'') |
| NFC Technology | ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) / MIFARE Classic / MIFARE DESFIRE / Sony FeliCa™ (ID only) / NFC Forum tags T1T, T2T, T3T, T4T and T5T |
| PoE Cabling Requirements | Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. / The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable. |
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. / The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Certifications | CE, FCC, IC, SRRC, UL 294, CAN/ULC-60839-11-1 |
| Document number, and issue date and/or revision level | UA-G2-Pro/UA-G2-Pro-Black, V02 |
| Ambient Operating Temperature | Device: -30 to 45° C (-22 to 113° F) / Display: -10 to 45° C (14 to 113° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Software | |
| Management Application | Access |
| Software Information | The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a> |
