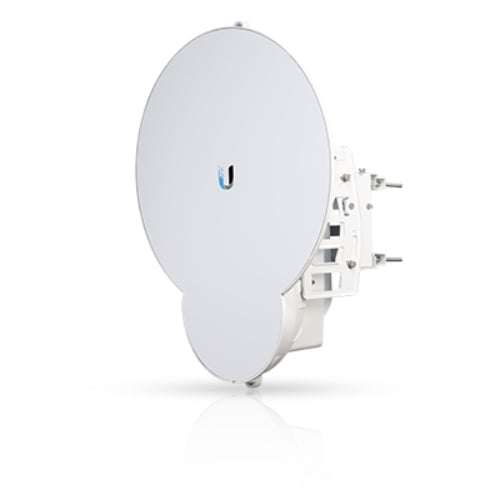

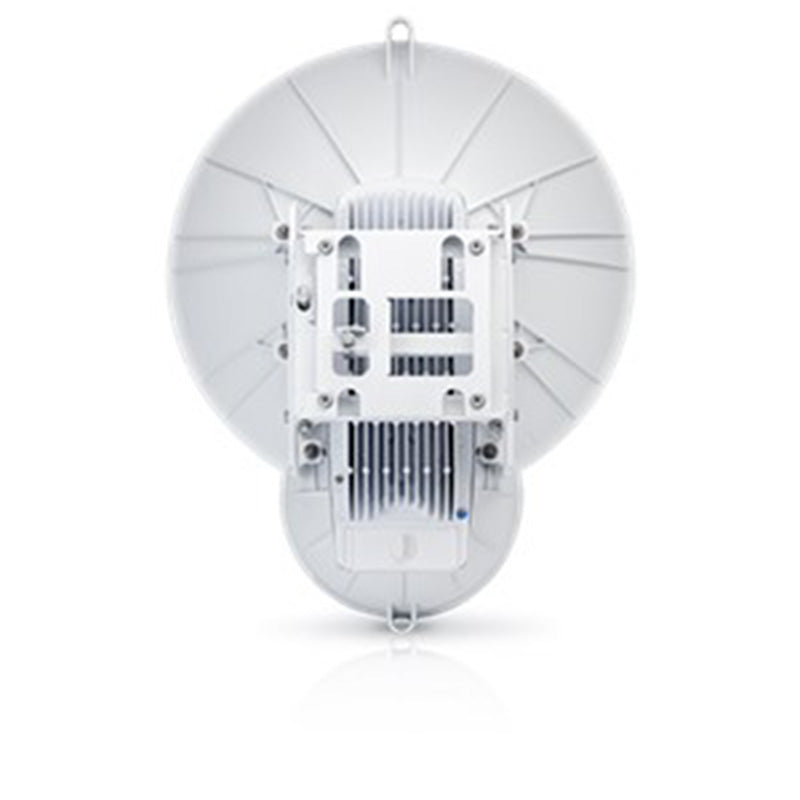

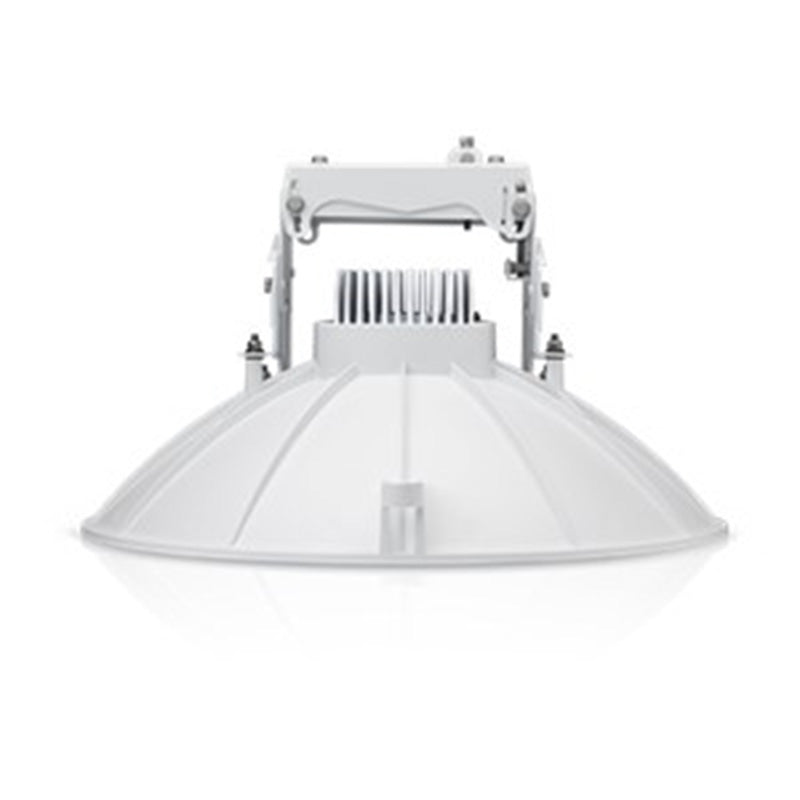

AF-24HD Ubiquiti airFiber HD 24GHz Bridge

Q: What ports and mounting hardware does it have?

It has one 10\/100 Ethernet port, one 10\/100\/1000 Ethernet port and one RJ-12 alignment tone port. A pole mounting kit is included, and eight status LEDs show port speed, activity, RF status and GPS synchronisation.

£2,670.90 GBP

Description

Revolutionary Wireless Technology : Introducing airFiber^®, a truly revolutionary Point-to-Point wireless platform from Ubiquiti.

Housed in a compact, highly efficient form factor, airFiber delivers amazing wireless gigabit+ performance, low latency, and long range. airFiber ushers in a new era in price-disruptive wireless technology ideal for carrier backhaul, building-to-building enterprise use, or public safety applications. Supports 24 GHz frequencies.

Features:

Ideal for carrier backhaul, building-to-building networking, and public safety applications
Supports 24 GHz frequencies
20+ km transmission range
Powered with the included 50V, 1.2A PoE Gigabit Ethernet adapter
(1) 10/100 Ethernet port
(1) 10/100/1000 Ethernet port
(1) RJ-12 alignment tone port
2 Gbps aggregate throughput
50W maximum power consumption
(8) status LEDs that denote port speed, activity, RF status, and GPS synchronization
Included pole mounting kit

Note. Price shown is for a single unit. airFiber^® is normally purchased in pairs to form a single link.

Frequently asked questions5 questions

What is the AF-24HD designed for?

It is a point-to-point wireless bridge suited to carrier backhaul, building-to-building enterprise networking and public safety applications. It operates on 24 GHz frequencies.

Do I need more than one unit to make a link?

Yes. airFiber units are normally purchased in pairs to form a single link, and the price shown is for one unit.

What range and throughput does it offer?

It provides a transmission range of 20+ km and 2 Gbps aggregate throughput. It is described as delivering gigabit+ performance with low latency.

How is the AF-24HD powered?

It is powered by the included 50V, 1.2A PoE Gigabit Ethernet adapter. Maximum power consumption is 50W.

What ports and mounting hardware does it have?

It has one 10/100 Ethernet port, one 10/100/1000 Ethernet port and one RJ-12 alignment tone port. A pole mounting kit is included, and eight status LEDs show port speed, activity, RF status and GPS synchronisation.
