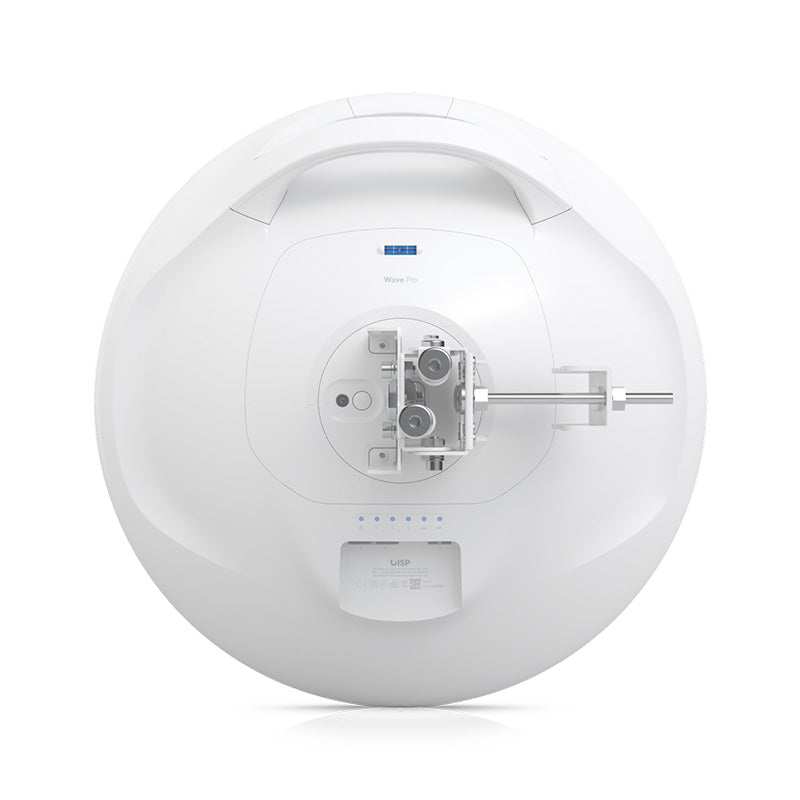

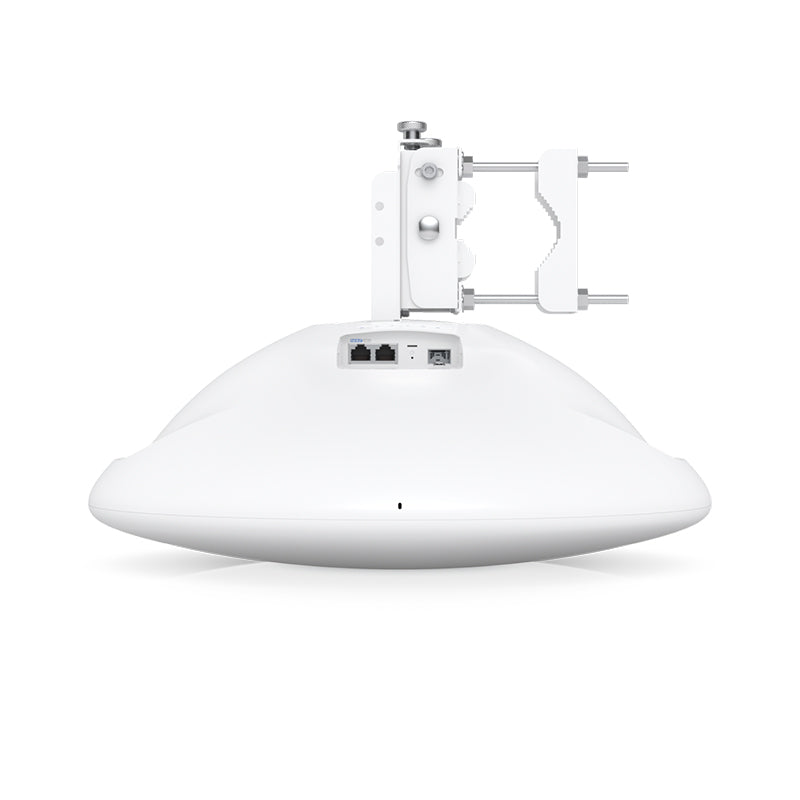

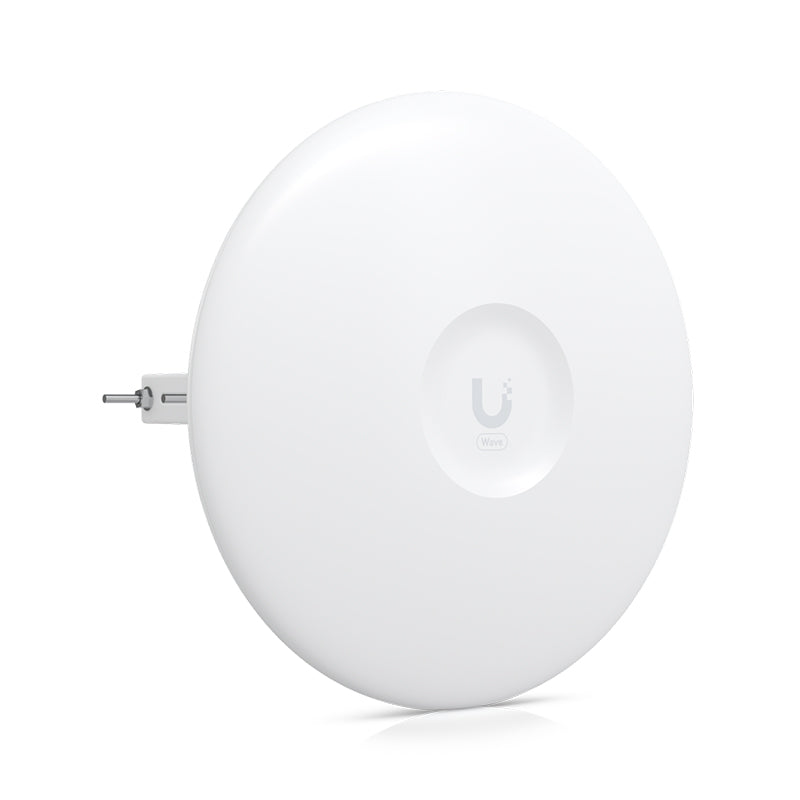

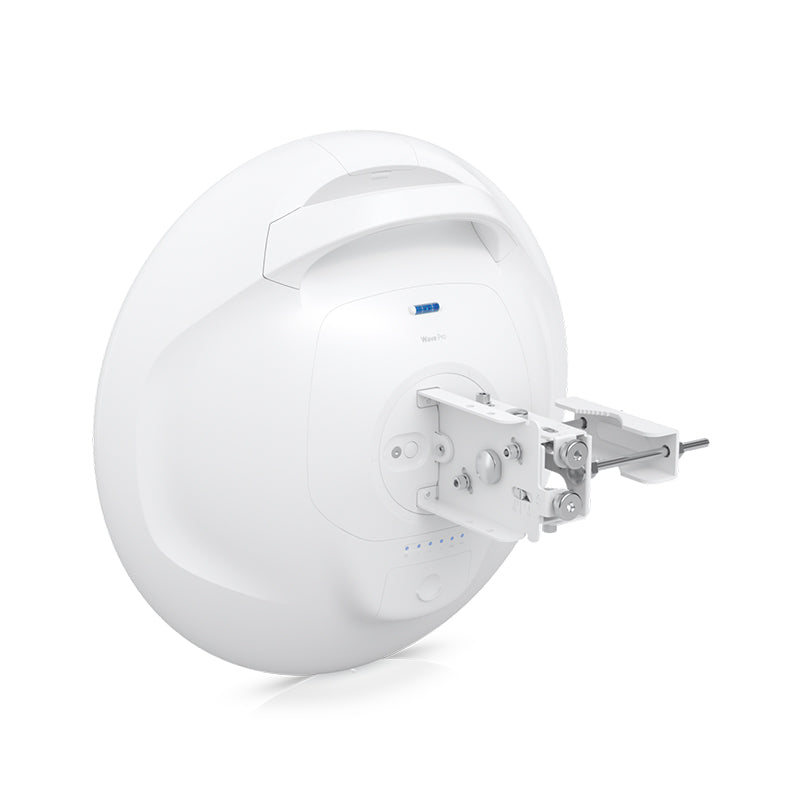

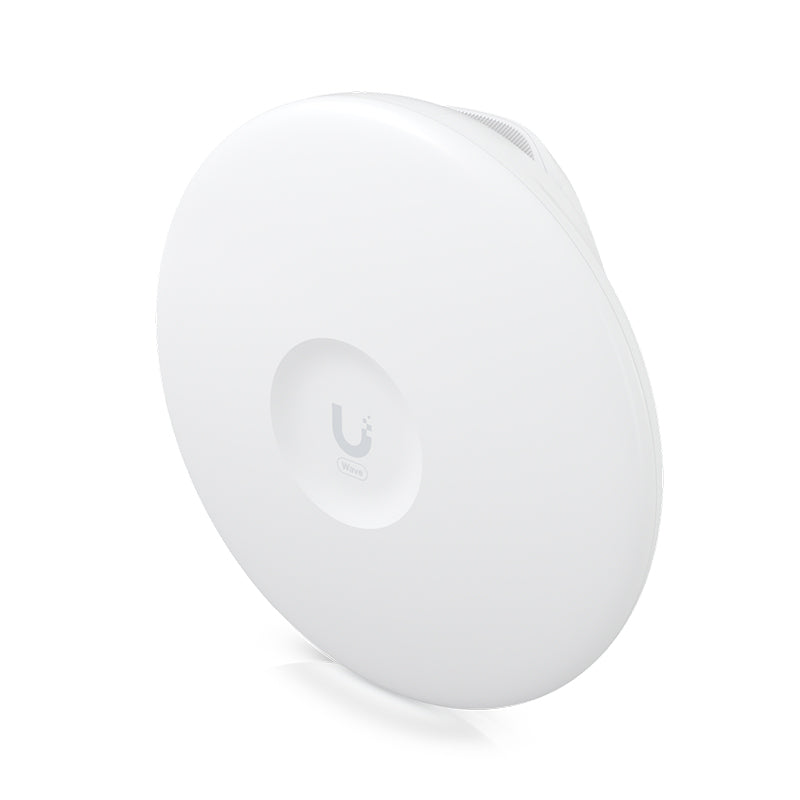

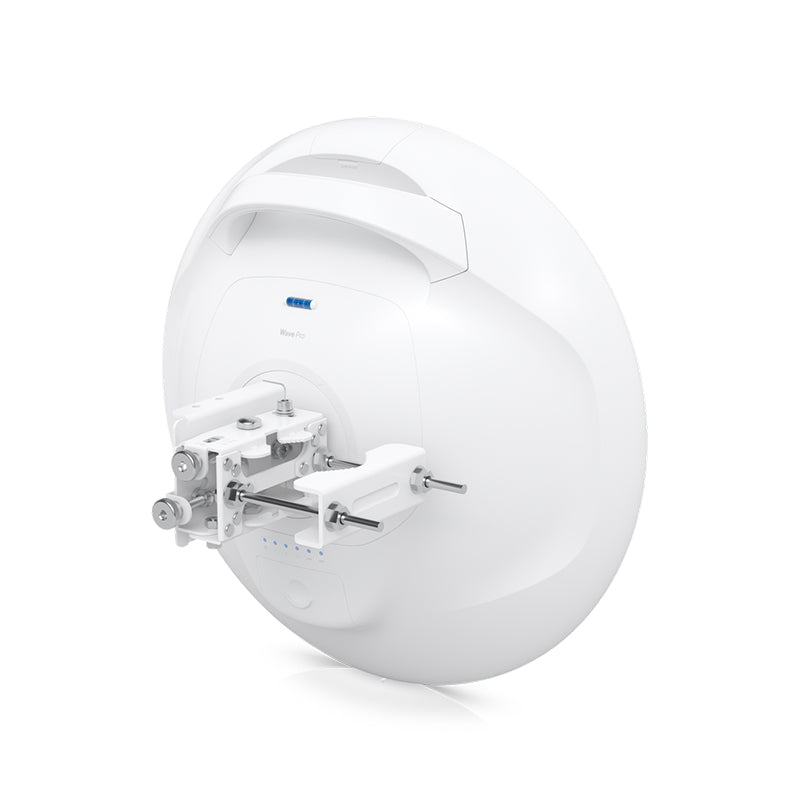

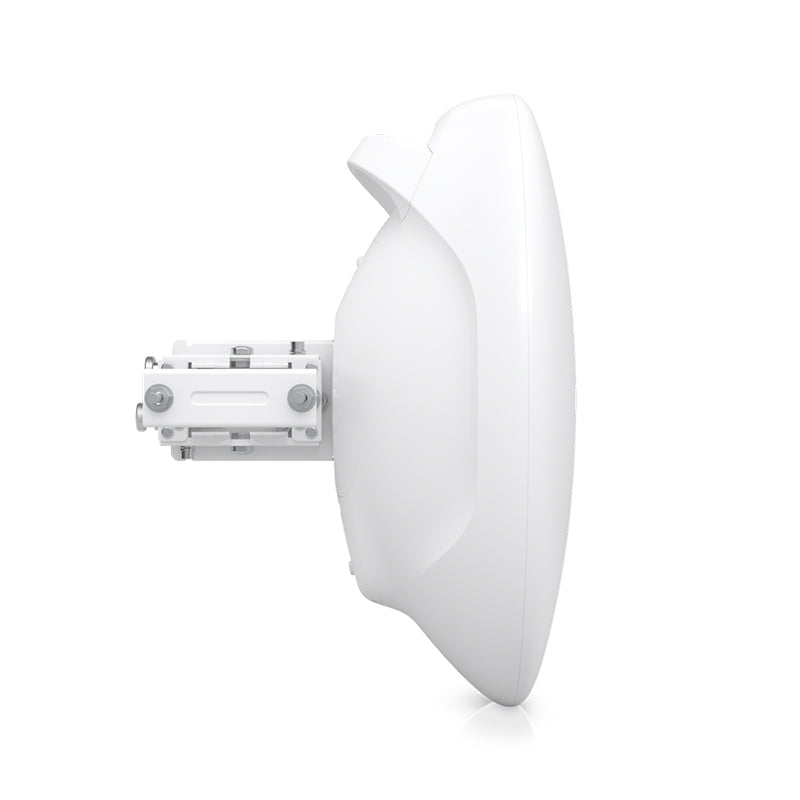

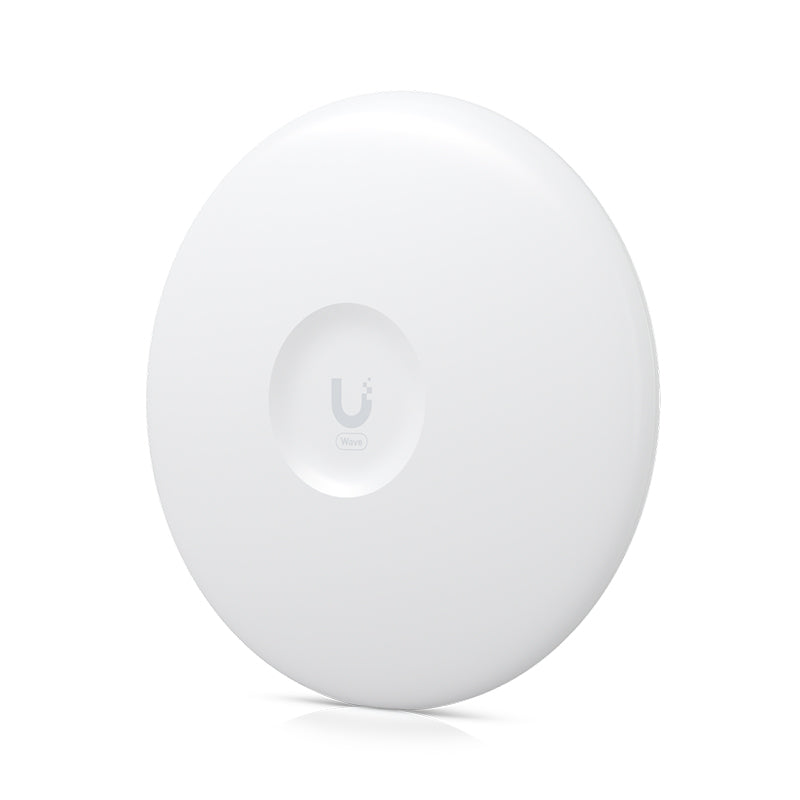

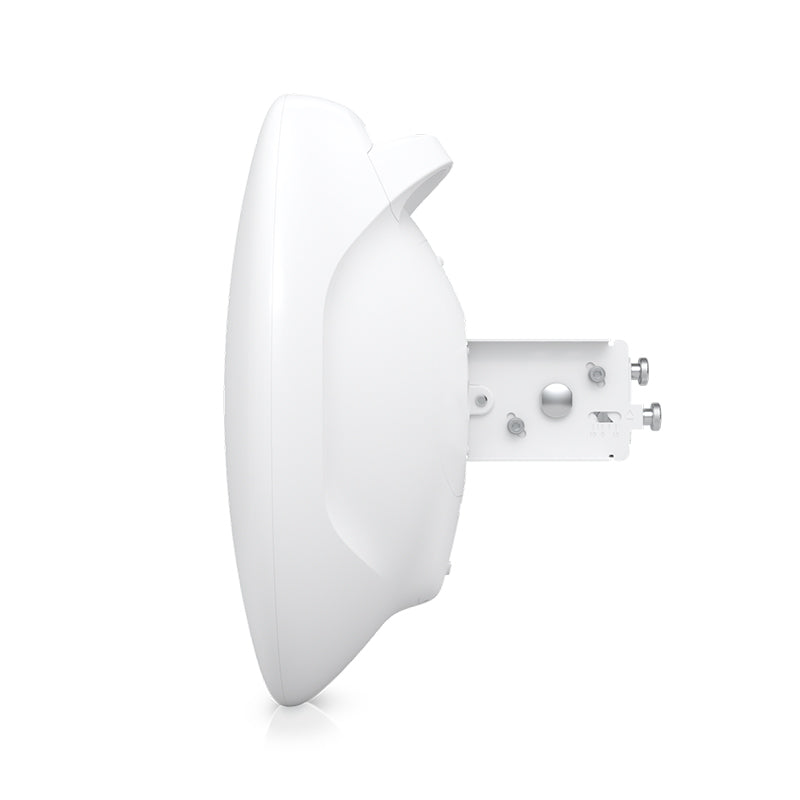

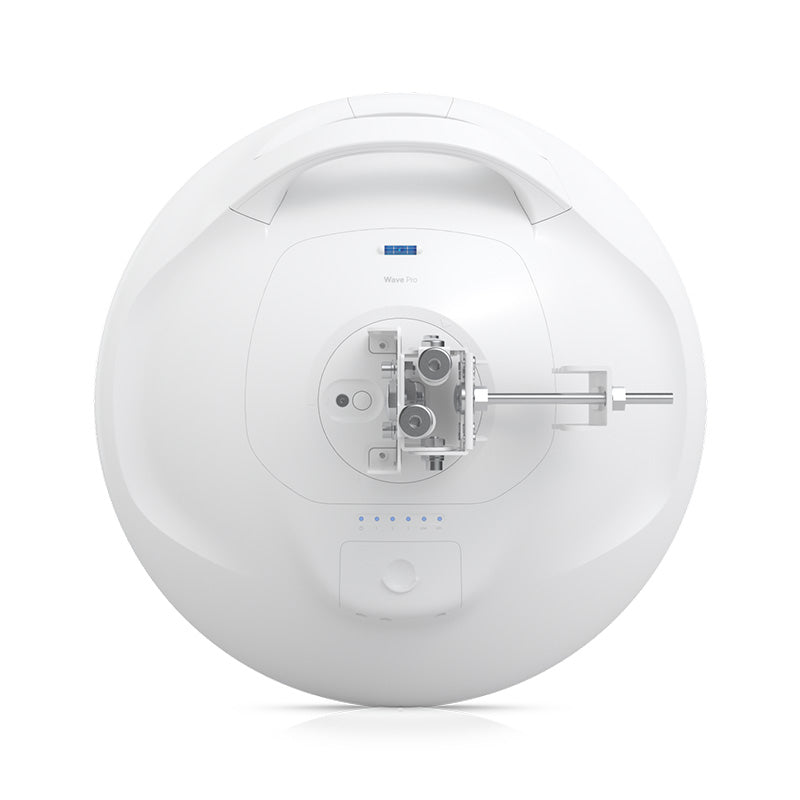

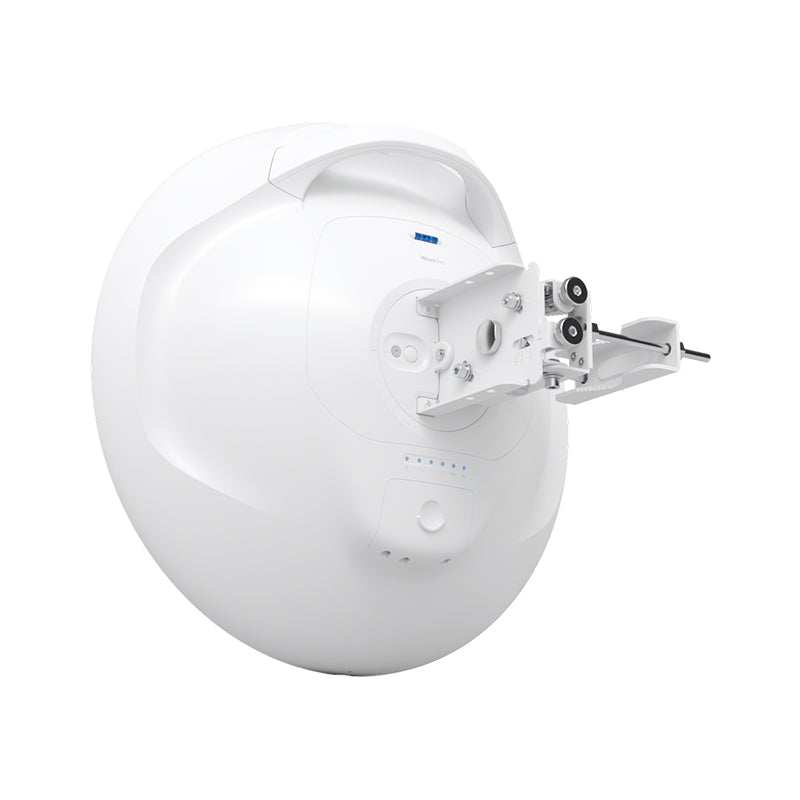

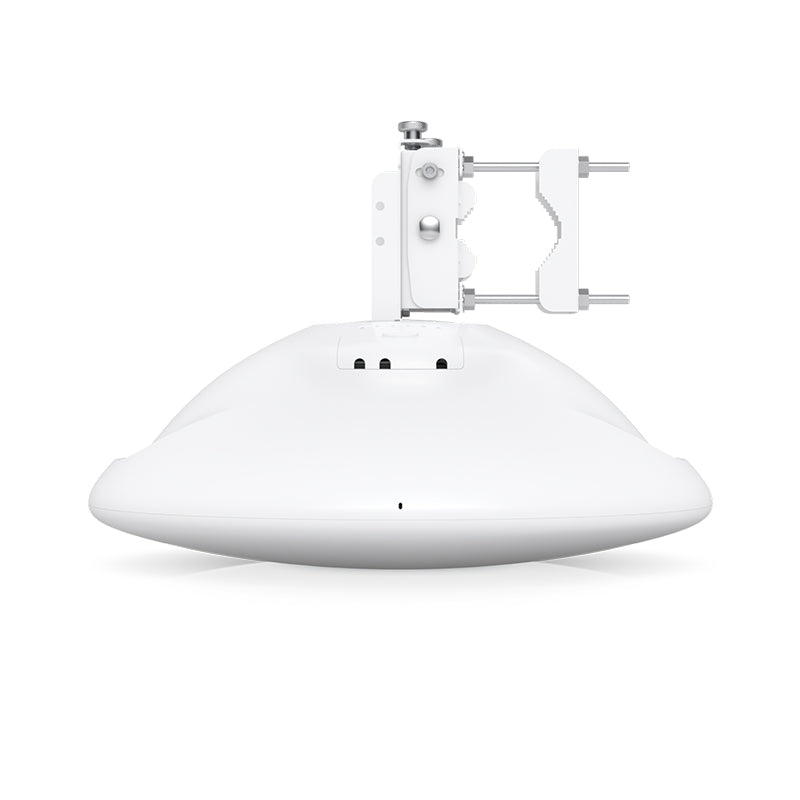

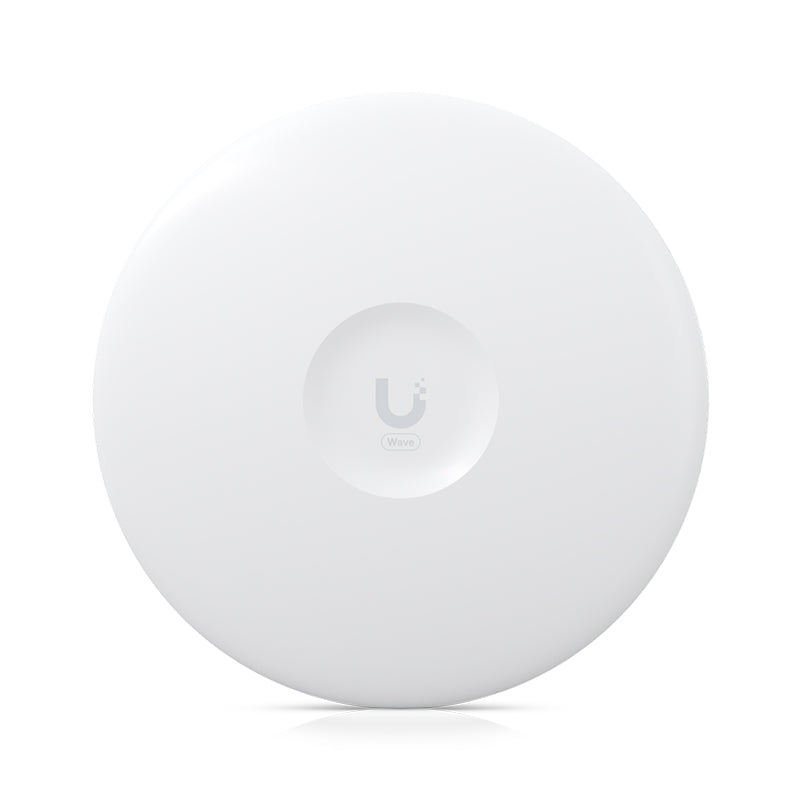

Manufacturer's photos. Where a power lead is pictured, a UK one is provided.
SKU:
WAVE-PRO
WAVE-PRO Ubiquiti UISP Wave Pro
Regular price
£617.07 GBP
Unit price
Description
Description
High-capacity 60 GHz radio that supports long-distance PtP (bridge) and PtMP links.
Features:
Max. link range:
— PtP: Up to 15 km
— PtMP: Up to 8 km (Wave AP), up to 6 km (Wave AP Micro)
Max. throughput: 5.4 Gbps (2.7 Gbps duplex)
5 GHz weatherproof backup radio (Max. throughput: 800 Mbps)
(2) 2.5 GbE and (1) 10G SFP+ ports
Ergonomic transportation handle
Precision alignment mount
Integrated GPS & Bluetooth
Specifications46 specifications · 6 sections
| Mechanical | |
|---|---|

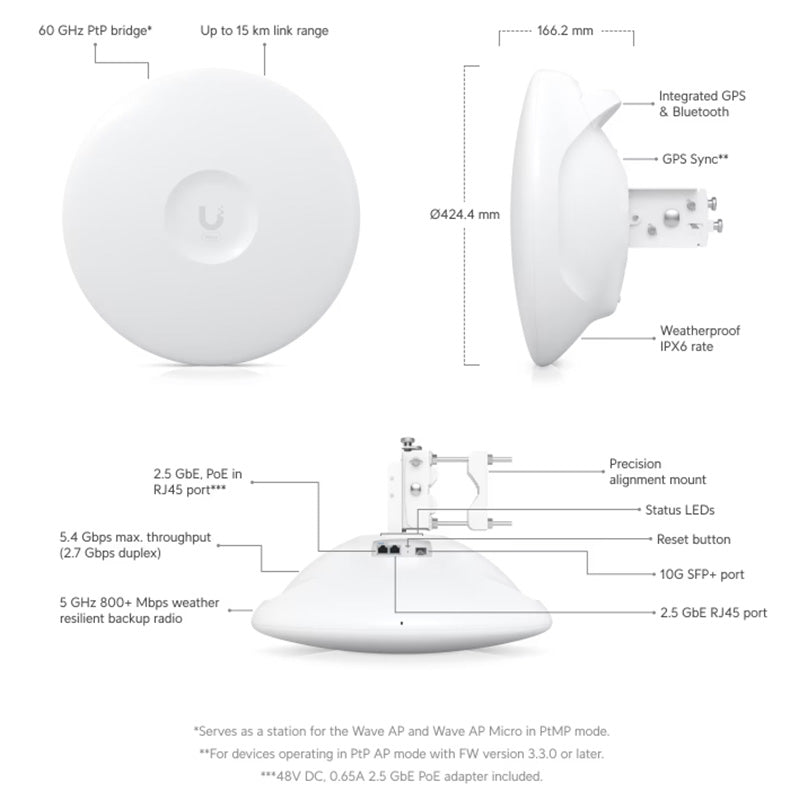

| Dimensions | ⌀424.4 x 166.2 mm / (⌀16.7 x 6.5") |
| Weight | Without mount: 2.8 kg (6.2 lb) / With mount: 4 kg (8.8 lb) |
| Enclosure Material | Aluminum alloy, UV stabilized polycarbonate |
| Mount Material | Stainless steel |
| Pole Mount Diameter | 25 to 76.2 mm (1 to 3") |
| Wind Loading | 369 N at 200 km/h (83 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Processor | Quad-core ARM® Cortex®-A53 at 1.4 GHz |
| Memory | 512 MB |
| Networking Interface | (2) 2.5 GbE RJ45 ports / (1) 10G SFP+ port |
| Max. Power Consumption | 26W |
| Power Method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) / Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only |
| Supported Voltage Range | 44–54V DC / 22–27V DC |
| Power Supply | 48V DC, 0.65A, 2.5 GbE PoE adapter (Included) |
| Buttons | (1) Factory reset |
| LEDs · Power | Flashing white: bootup in progress / White: not connected to UISP application / Blue: connected to UISP application / Flashing blue: locate in progress / Blue/white: firmware upgrade in progress |
| LEDs · Ethernet | (2) Flashing blue: Ethernet traffic detected |
| LEDs · GPS | Blue: receiving at least (4) GPS satellite signal |
| LEDs · Link | White: 5 GHz link / Blue: 60 GHz link |
| LEDs · SFP+ | (1) Flashing blue: SFP+ traffic detected |
| Ambient Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| Software | |
| Operating Modes | PtP / PtMP Station |
| Network | Bridge/Router mode |
| Application Requirements · UISP | Version 2.3.0 and later |
| System | |
| Total Throughput | 5.4 Gbps |
| Max. Range | PtP: Up to 15 km (9.3 miles) / PtMP: Up to 8 km (5 miles) (Wave AP), up to 6 km (3.7 miles) (Wave AP Micro, Wave AP Gen2) |
| Encryption | WPA2-PSK (AES) |
| Radio Frequency | |
| Operating Frequency · Worldwide | 57–71 GHz |
| Channel Bandwidth | 2160, 1080, 540 MHz |
| Operating Channels | 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200, 70560 MHz |
| Modulation | 16QAM, QPSK |
| Antenna Gain | 46 dBi |
| Polarization | Vertically-Linear |
| Beamwidth | Azimuth: 3 dB 1.3° / Elevation: 3 dB 1.3° |
| Radio Frequency (Back-Up) | |
| WiFi Standard | 802.11ax (WiFi 6) |
| Operating Frequency · US/CA | U-NII-1 5150 - 5250 MHz / U-NII-2A 5250 - 5350 MHz / U-NII-2C 5470 - 5725 MHz / U-NII-3 5725 - 5850 MHz |
| Operating Frequency · Worldwide | 5150 - 5875 MHz |
| Channel Bandwidth | 20, 40, 80 MHz |
| Modulation | BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6) |
| Antenna Gain | 22 dBi |
| Polarization | Dual-Linear |
| Beamwidth | Azimuth: 3 dB 8° / Elevation: 3 dB 8° |
| Cross-Pol Isolation | 20 dB |
| Electrical Downtilt | 0° |
Source: Ubiquiti technical specifications, checked 28 Oct 2026.Model WAVE-PRO · Ubiquiti's spec sheet
