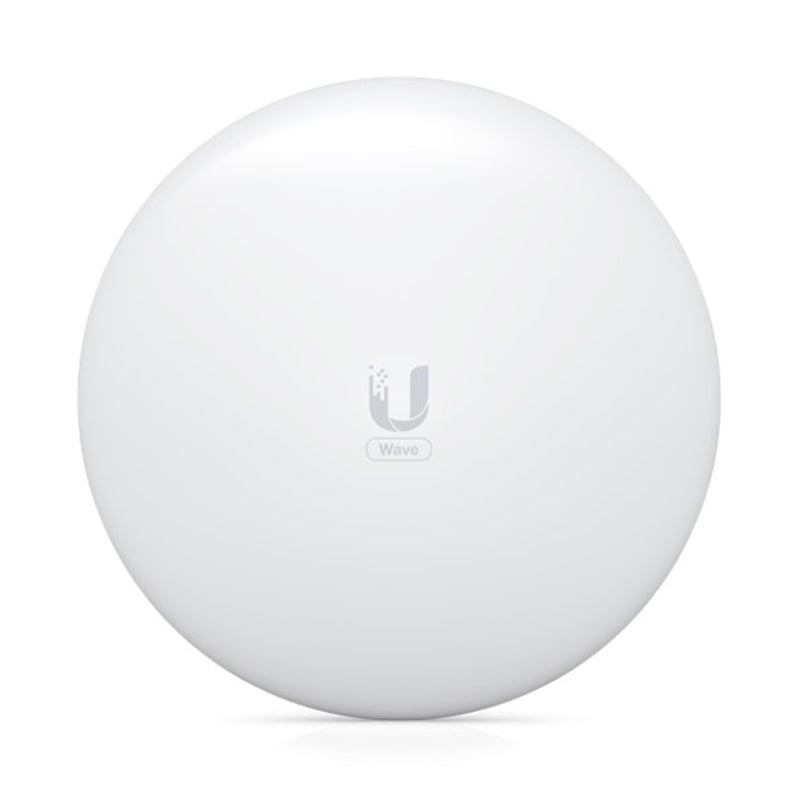

WAVE-LR Ubiquiti UISP Wave Long Range
Description
Description
60 GHz PtMP station powered by Wave Technology.
The Ubiquiti Wave Long-Range Outdoor 60GHz 46dBi WiFi PoE Access Point can connect to a Wave AP (sold separately) and deliver 2 Gbps total throughput (1 Gbps duplex). The Wave Long-Range is equipped with a high-performance 5GHz backup radio to ensure uninterrupted connection, and a Bluetooth radio to simplify setup via the UISP Mobile app.
Features:
Compatibility and supported distances:
— Wave AP - 8 km link range
— Wave AP Micro - 6 km link range
2 Gbps max. throughput (1 Gbps duplex)
5 GHz 800+ Mbps weather-resilient backup radio
(1) GbE RJ45 port

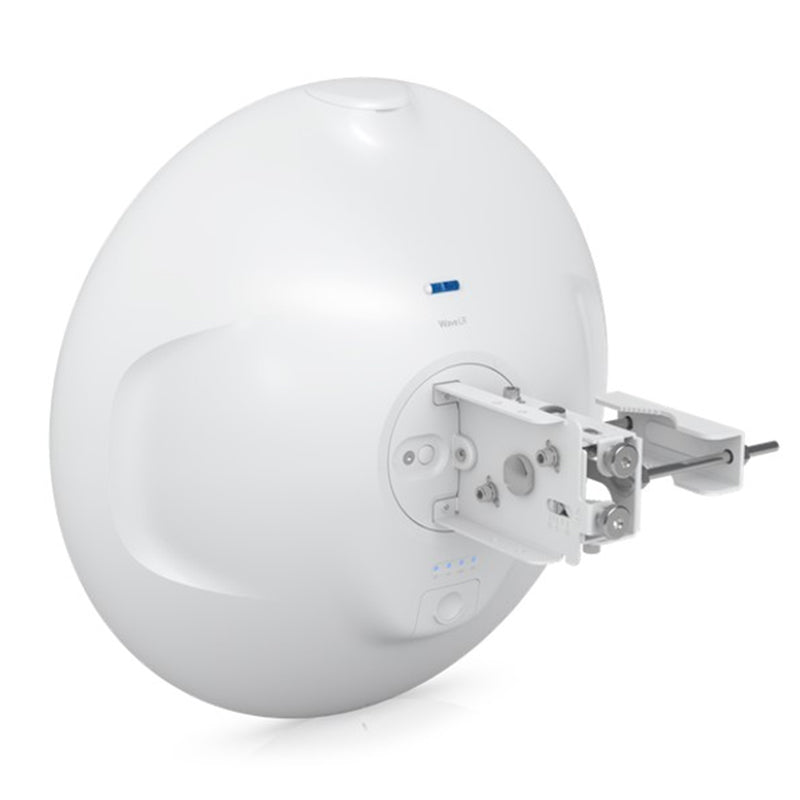

Precision alignment mount
Integrated GPS & Bluetooth
Specifications44 specifications · 6 sections
| Mechanical | |
|---|---|

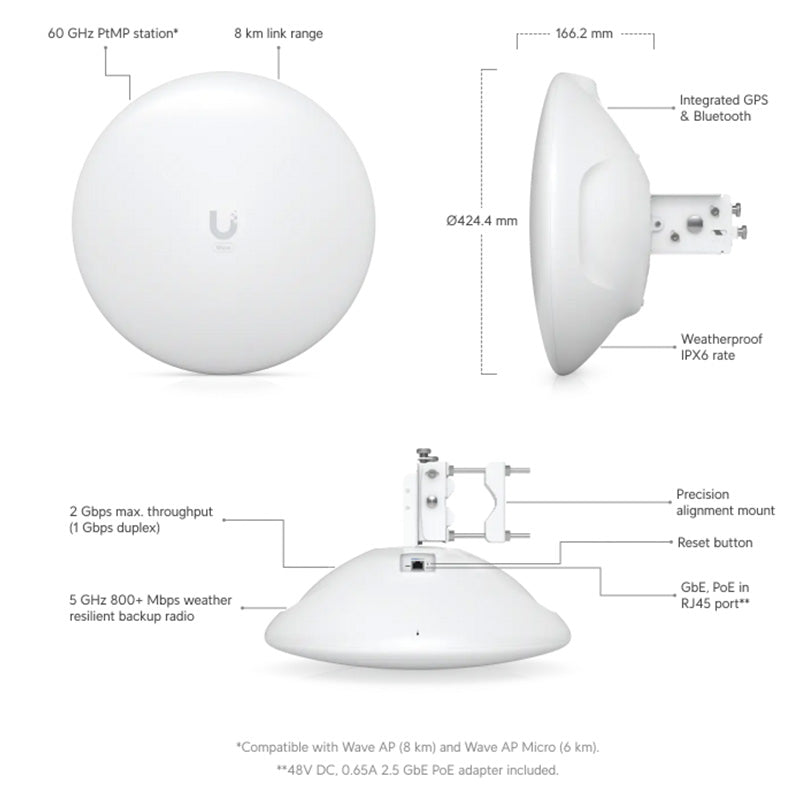

| Dimensions | ⌀424.4 x 166.2 mm / (⌀16.7 x 6.5") |
| Weight | Without mount: 2.6 kg (5.7 lb) / With mount: 3.8 kg (8.4 lb) |
| Enclosure Material | UV stabilized polycarbonate |
| Mount Material | Stainless steel |
| Mounting | Pole Mount |
| Pole Mount Diameter | 25 to 76.2 mm (1 to 3") |
| Wind Loading | 286 N at 200 km/h (64.3 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
| Processor | Dual-core ARM® Cortex®-A53 at 1 GHz |
| Memory | 512 MB |
| Networking Interface | (1) GbE RJ45 port |
| Max. Power Consumption | 20W |
| Power Method | Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) / Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only |
| Supported Voltage Range | 44–54V DC / 22–27V DC |
| Power Supply | 48V DC, 0.65A gigabit PoE adapter (Included) |
| Buttons | (1) Factory reset |
| LEDs · Power | Flashing white: bootup in progress / White: not connected to UISP application / Blue: connected to UISP application / Flashing blue: locate in progress / Blue/white: firmware upgrade in progress |
| LEDs · Ethernet | Flashing blue: Ethernet traffic detected |
| LEDs · GPS | Blue: receiving at least (4) GPS satellite signal |
| LEDs · Link | White: 5GHz link / Blue: 60GHz link |
| Ambient Operating Temperature | -40 to 60° C (-40 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| Software | |
| Operating Modes | PtP / PtMP Station |
| Network | Bridge/Router mode |
| Application Requirements · UISP | Version 1.4.5 and later |
| System | |
| Total Throughput | 2 Gbps |
| Max. Range | 8+ km (5 mi) |
| Encryption | WPA2-PSK (AES) |
| Radio Frequency | |
| Operating Frequency · Worldwide | 57–71 GHz |
| Channel Bandwidth | 2160, 1080, 540 MHz |
| Operating Channels | 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200, 70560 MHz |
| Modulation | 16QAM, QPSK |
| Antenna Gain | 46 dBi |
| Polarization | Vertically-Linear |
| Beamwidth | Azimuth: 3 dB 1° / Elevation: 3 dB 1° |
| Radio Frequency (Back-Up) | |
| WiFi Standard | 802.11ax (WiFi 6) |
| Operating Frequency · US/CA | U-NII-1 5150 - 5250 MHz / U-NII-2A 5250 - 5350 MHz / U-NII-2C 5470 - 5725 MHz / U-NII-3 5725 - 5850 MHz |
| Operating Frequency · Worldwide | 5150 - 5875 MHz |
| Channel Bandwidth | 20, 40, 80 MHz |
| Antenna Gain | 22 dBi |
| Polarization | Dual-Linear |
| Beamwidth | Azimuth: 3 dB 8° / Elevation: 3 dB 8° |
| Cross-Pol Isolation | 20 dB |
