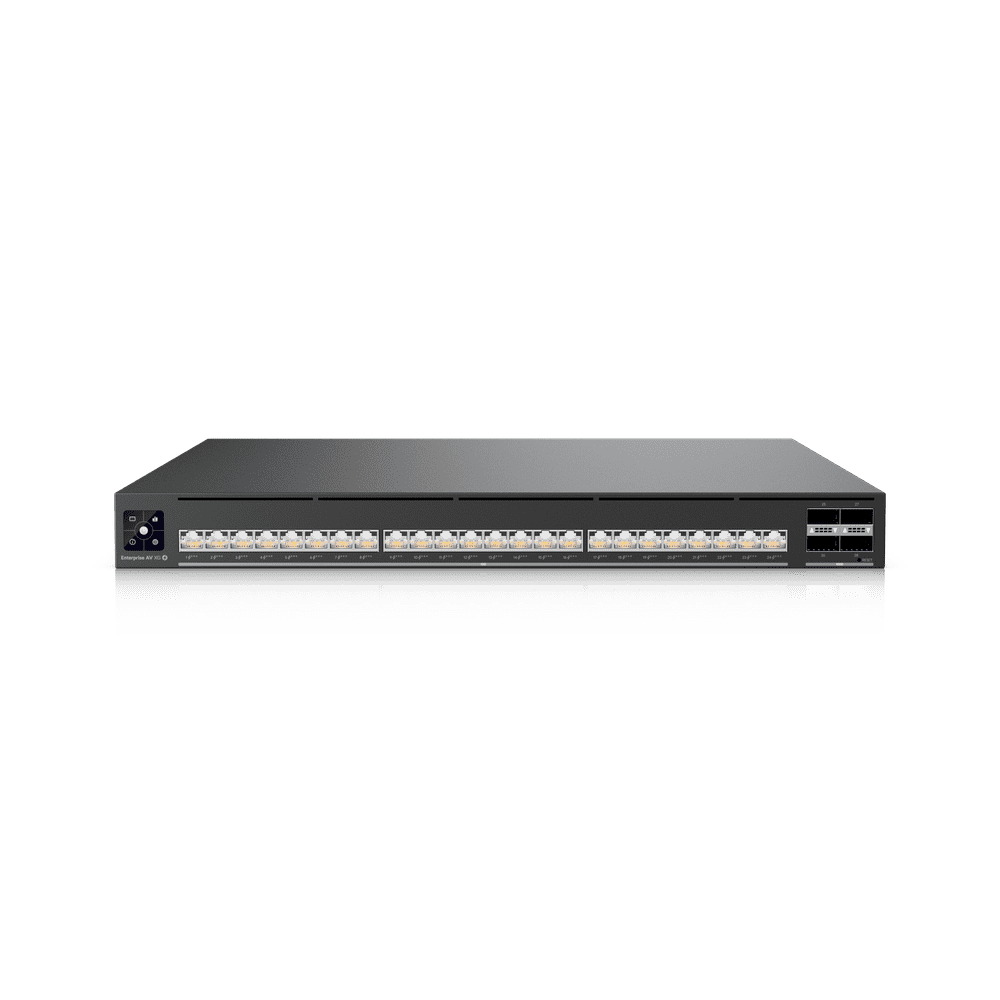

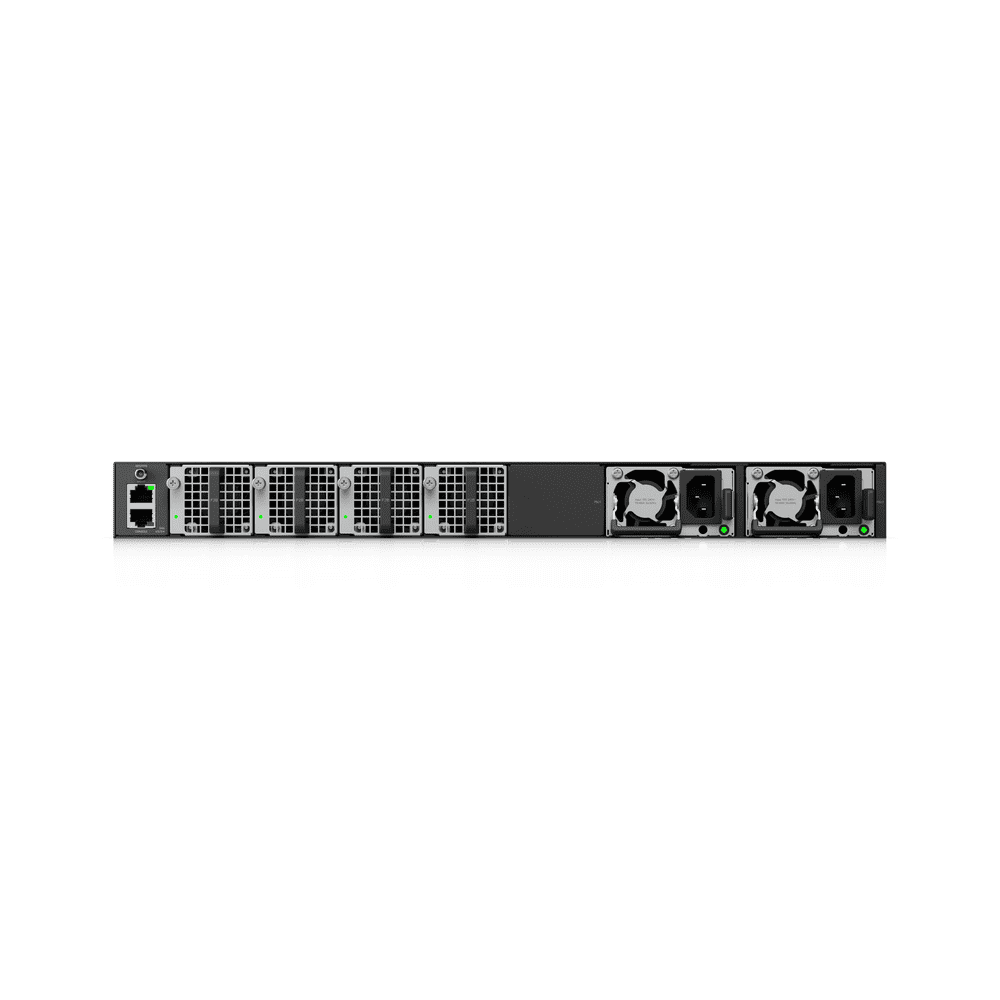

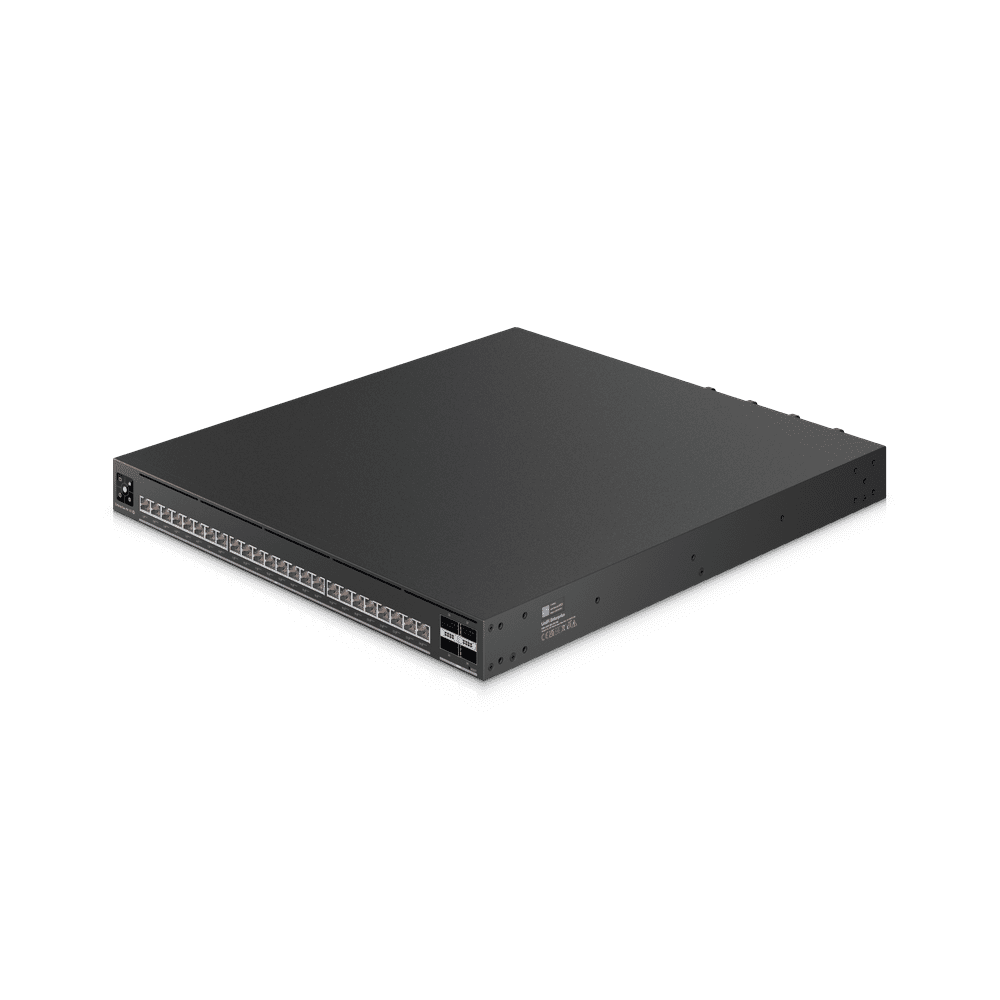

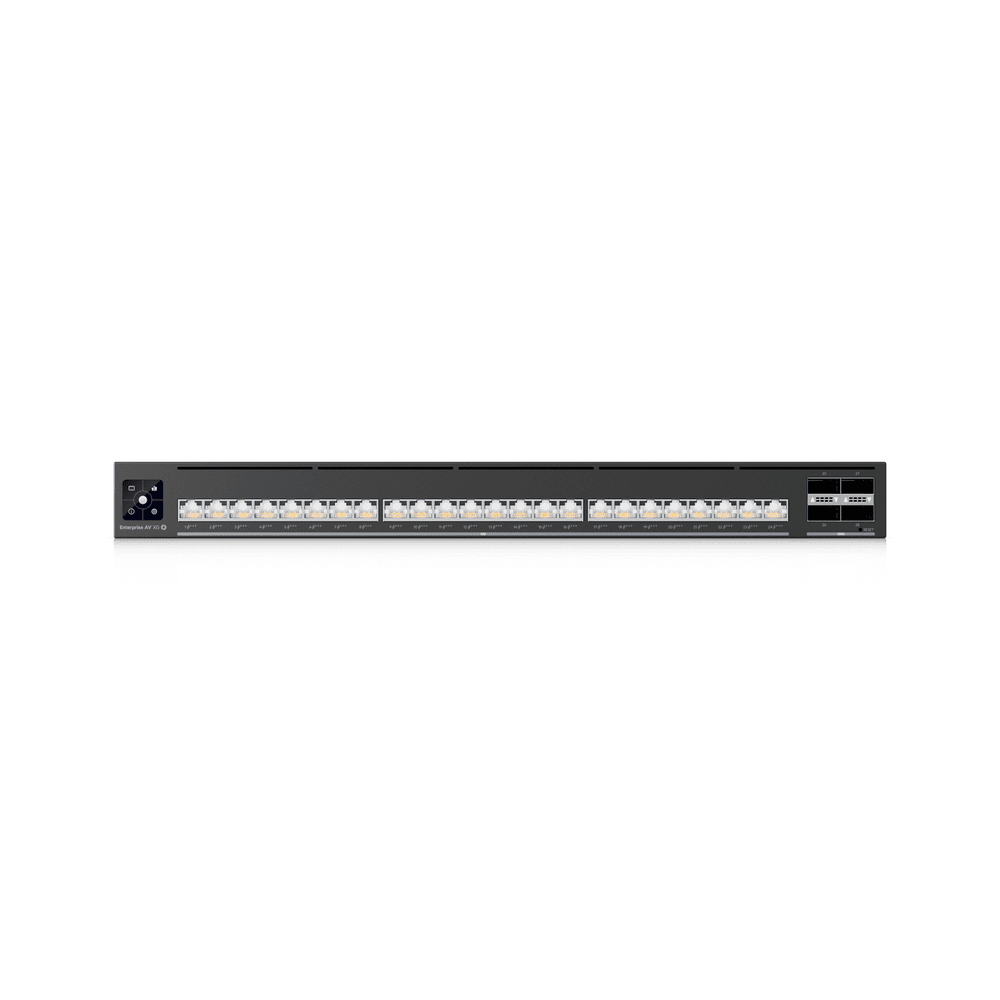

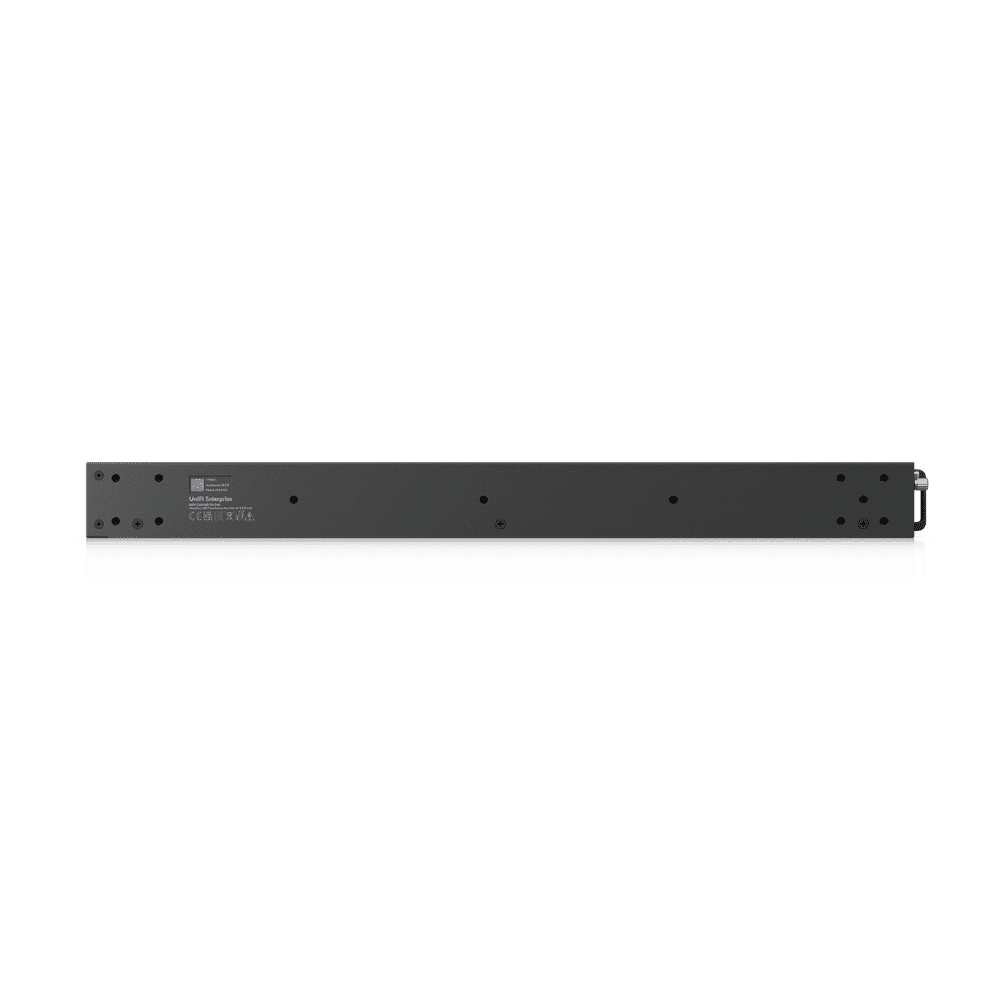

Manufacturer's photos. Where a power lead is pictured, a UK one is provided.
EAV-XG-24-PoE Ubiquiti UniFi Enterprise Audio/Video XG 24‑Port PoE+++ Switch
Description
Description
The Ubiquiti EAV-XG-24-PoE is a flagship enterprise-grade 10GbE PoE+++ switch purpose-built for professional audio and video over IP networks. Designed for deterministic media delivery, this switch is ideal for environments running PTPv2, SMPTE ST 2110, SDVoE, Dante and AES67 workflows.
Featuring 24 x 10GbE PoE+++ RJ45 ports and 4 x 100Gb QSFP28 uplinks, the EAV-XG-24-PoE delivers massive throughput with up to 2,150W total PoE capacity in shared mode. A high‑precision OCXO clock and optional GPS grandmaster input (SMA) ensure ultra‑accurate timing and synchronisation across demanding AV infrastructures.
- 24 x 10GbE PoE+++ ports (up to 90W per port)
- 4 x 100Gb QSFP28 uplinks for aggregation and core connectivity
- Layer 3 switching with static routing and inter‑VLAN routing
- PTPv2, SyncE and Pro AV profiles built in

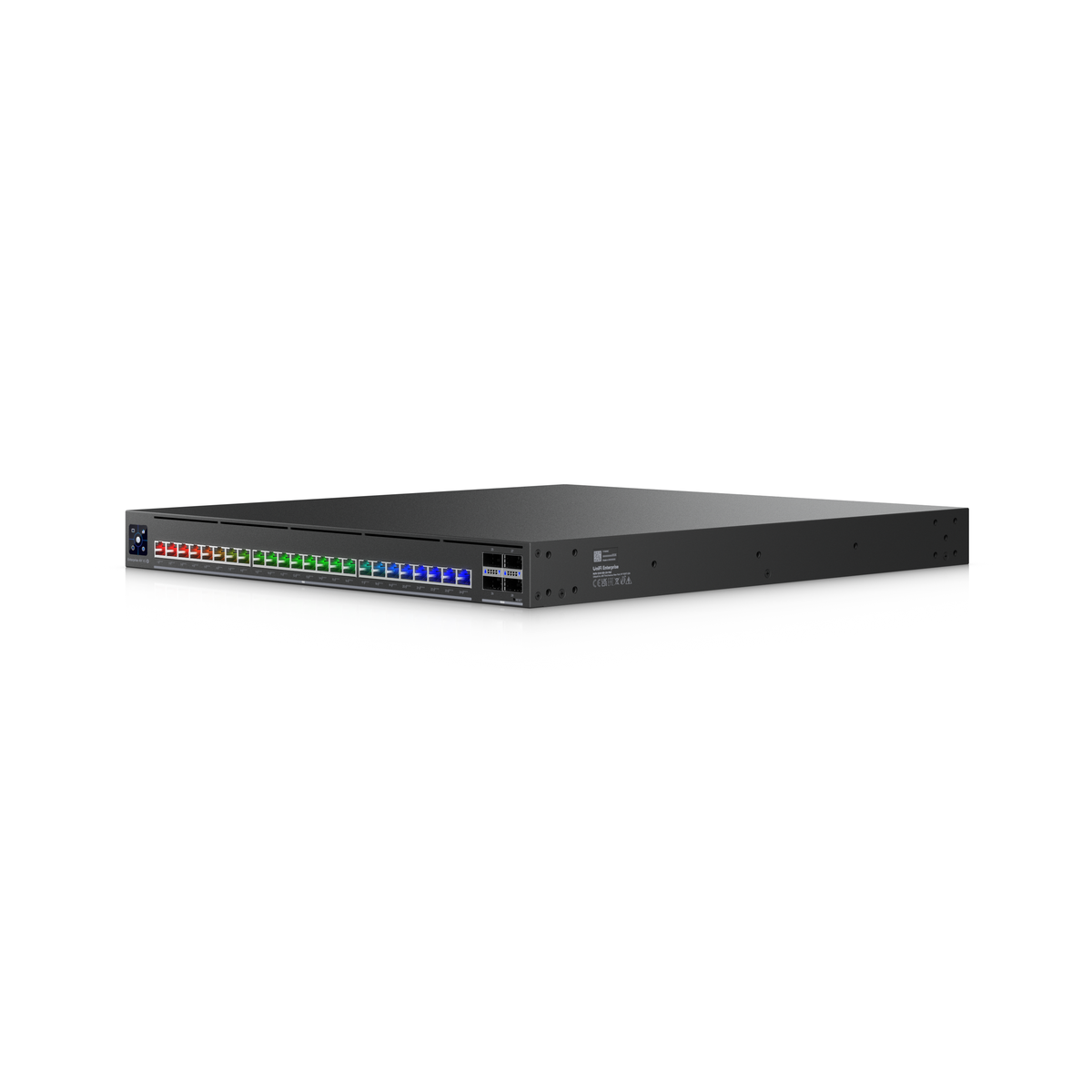

- Etherlighting™ for instant port identification
- Hot‑swappable PSUs and fans for enterprise resilience
Ideal for: broadcast studios, live event venues, enterprise AV deployments, universities, stadiums and large‑scale media production environments requiring guaranteed low‑latency performance.
Compatible Products
UniFi Network Application
UniFi Protect Cameras
UniFi Enterprise and Pro XG Switches
UniFi QSFP28 DAC and Optical Modules
Frequently asked questions3 questions
Does the EAV-XG-24-PoE support full PoE+++ on all ports?
Is this switch suitable for SMPTE ST 2110 workflows?
Does it require a 4‑post rack?
Specifications41 specifications · 3 sections
| Overview | |
|---|---|
| Dimensions | 442.4 x 480 x 43.7 mm / (17.4 x 18.9 x 1.7") |
| Port Layout · 1 GbE RJ45 | 1 / (1G/100M/10M) |
| Port Layout · 10 GbE RJ45 | 24 (All PoE+++) / (10G/5G/2.5G/1G/100M/10M) |
| Port Layout · 100G QSFP28 | 4 / (100G/40G) |
| Port Layout · Console | 1 |
| Port Layout · SMA | 1 |
| Max. PoE Output | Up to PoE+++ |
| Total PoE Availability | 200-240V AC Shared Mode: 2,150W with (2) 1,200W modules / 100-120V AC Shared Mode: 1,850W with (2) 1,200W modules / 200-240V AC Redundant Mode: 1,050W with (2) 1,200W modules / 100-120V AC Redundant Mode: 850W with (2) 1,200W modules |
| Redundancy | (2) Hot-Swappable PSUs / (4) Hot-Swappable Fans |
| Form Factor | Rack Mount (1U, Full-Depth) |
| Performance | |
| Switching Capacity | 1,280 Gbps |
| Total Non-Blocking Throughput | 640 Gbps |
| Forwarding Rate | 810 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| IPv4 Static Routes | 512 |
| Packet Buffer Size | 8 MB |
| Access Lists · IPv4 | 256 |
| Access Lists · MAC | 256 |
| Hardware | |
| PoE Ports · PoE+++ | 24 |
| Max. PoE Wattage per Port by PSE · PoE | 15.4W |
| Max. PoE Wattage per Port by PSE · PoE+ | 30W |
| Max. PoE Wattage per Port by PSE · PoE++ | 60W |
| Max. PoE Wattage per Port by PSE · PoE+++ | 90W |
| Max. Power Consumption | 150W (Excluding PoE Output) / 2,400W (Including PoE Output) |
| Power Method | (2) Universal input, 100–240V AC, 50/60 Hz |
| Power Input Method | (2) AC input, Hot-swappable power modules |
| Power Supply | (2) Hot-swappable AC/DC 1,200W power modules |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet / AR / Serial Console |
| Heat Dissipation | 512 BTU/hr (Excluding PoE Output) |
| Weight | Without mounting brackets: 9.85 kg (21.7 lb) / With mounting brackets: 9.95 kg (21.9 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |

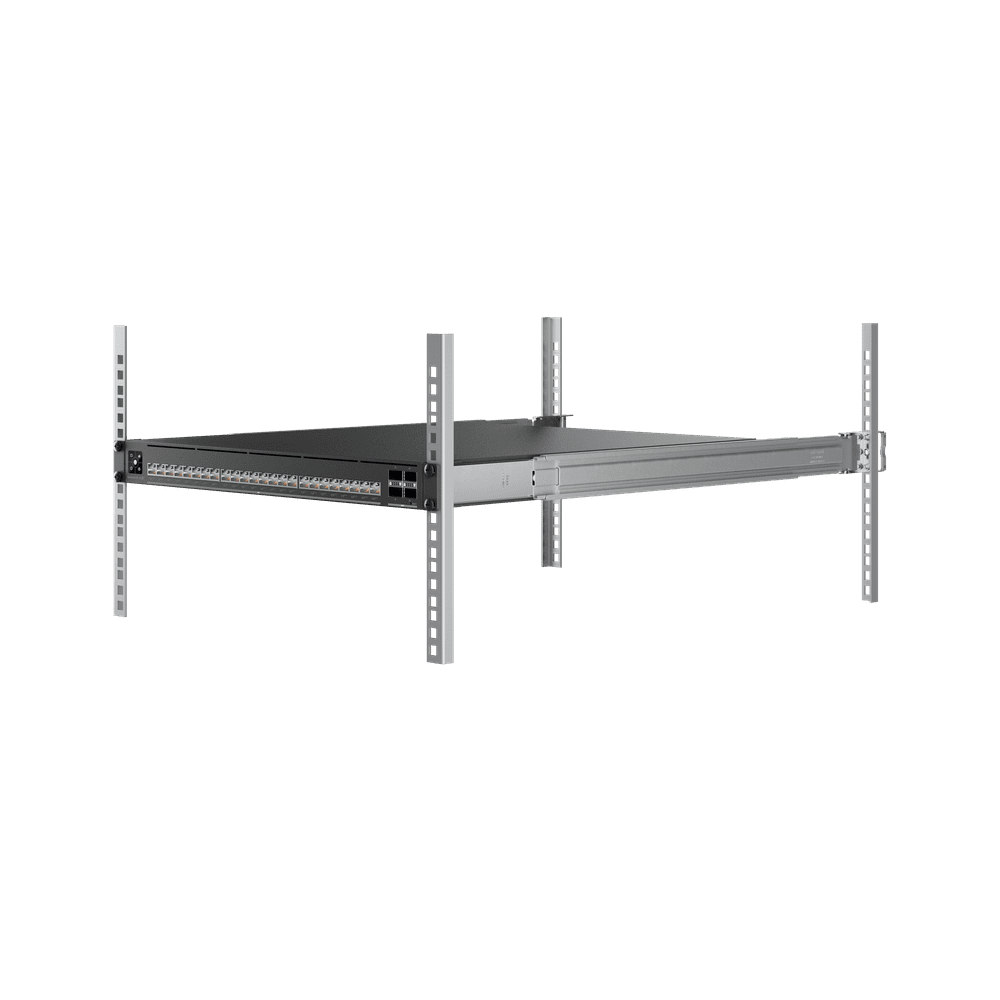

| Supported Rack Depth | 482.6 mm (19") four-post racks / Posts depths ranging from 650 to 1,000 mm (25.6–39.4”) |
| LCM Display | 1.3" touchscreen |
| Fan Method | (4) Hot-swappable fan modules |
| ESD Protection | Air: ± 2KV, contact: ± 8KV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
