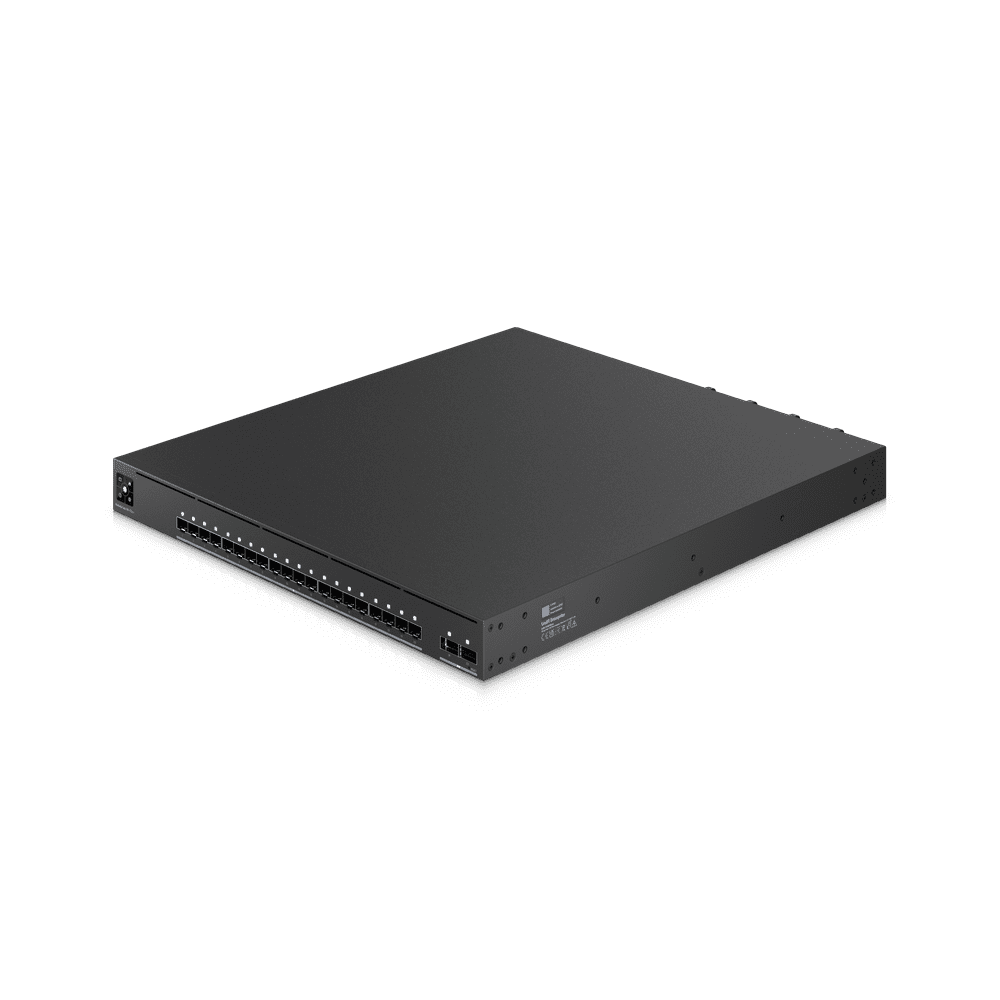

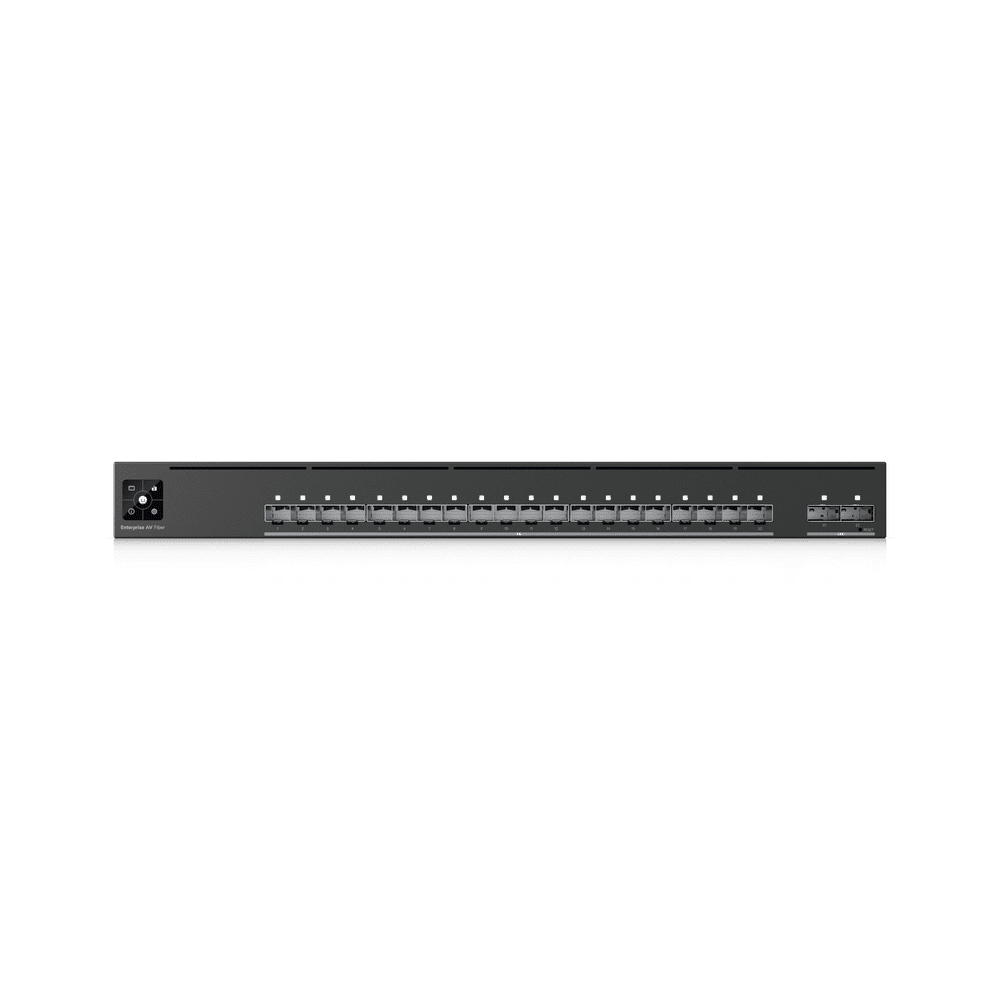

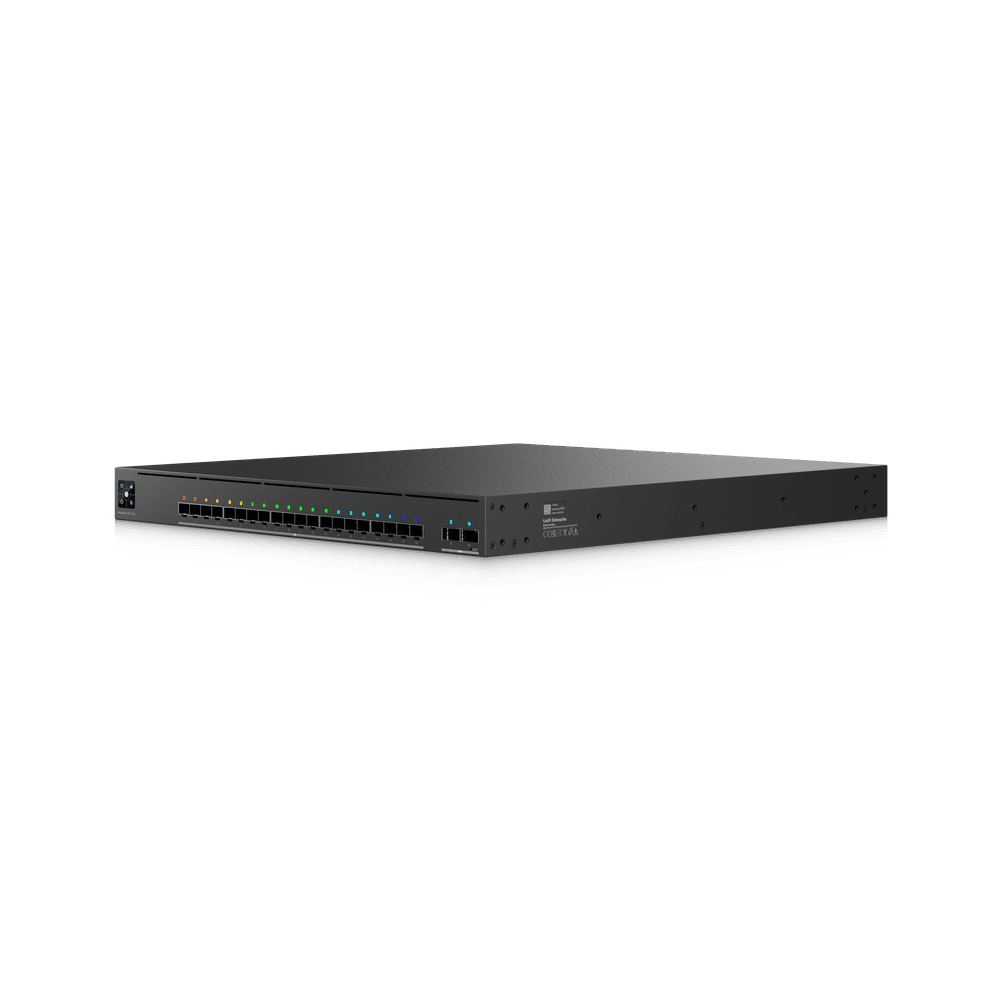

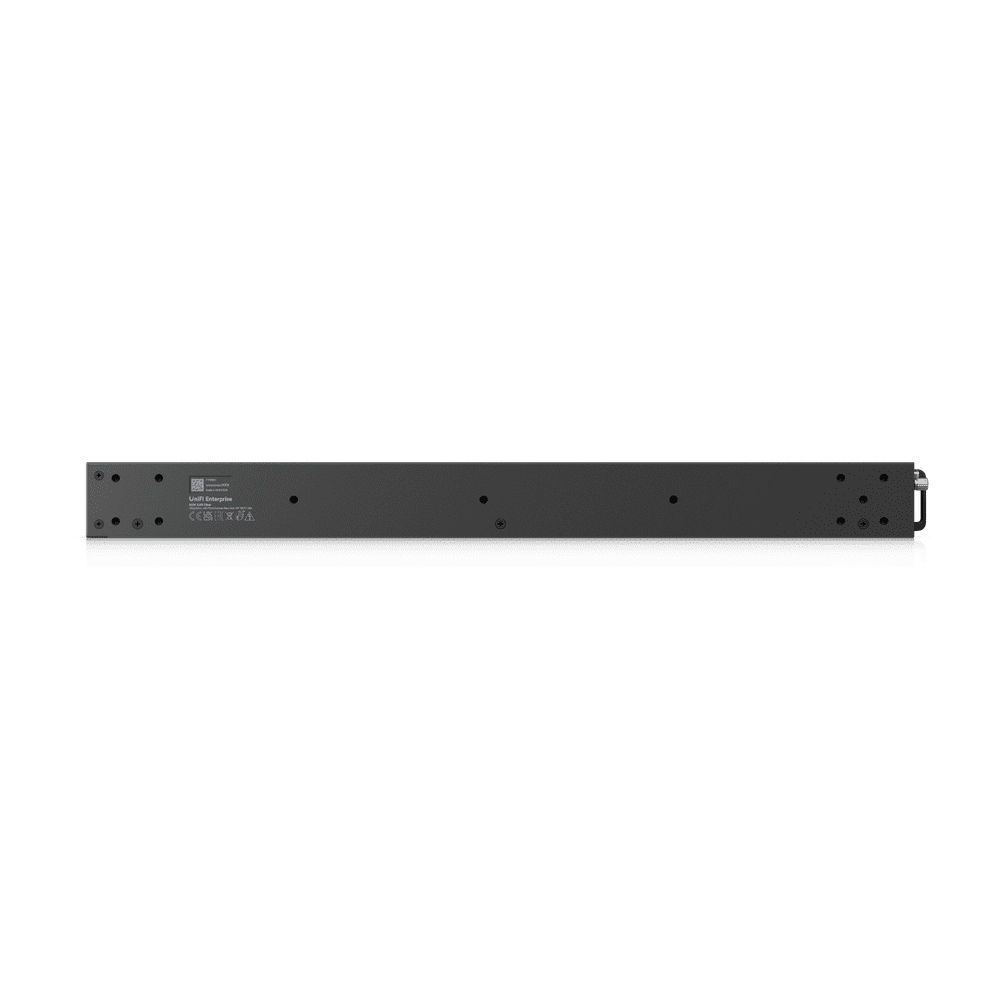

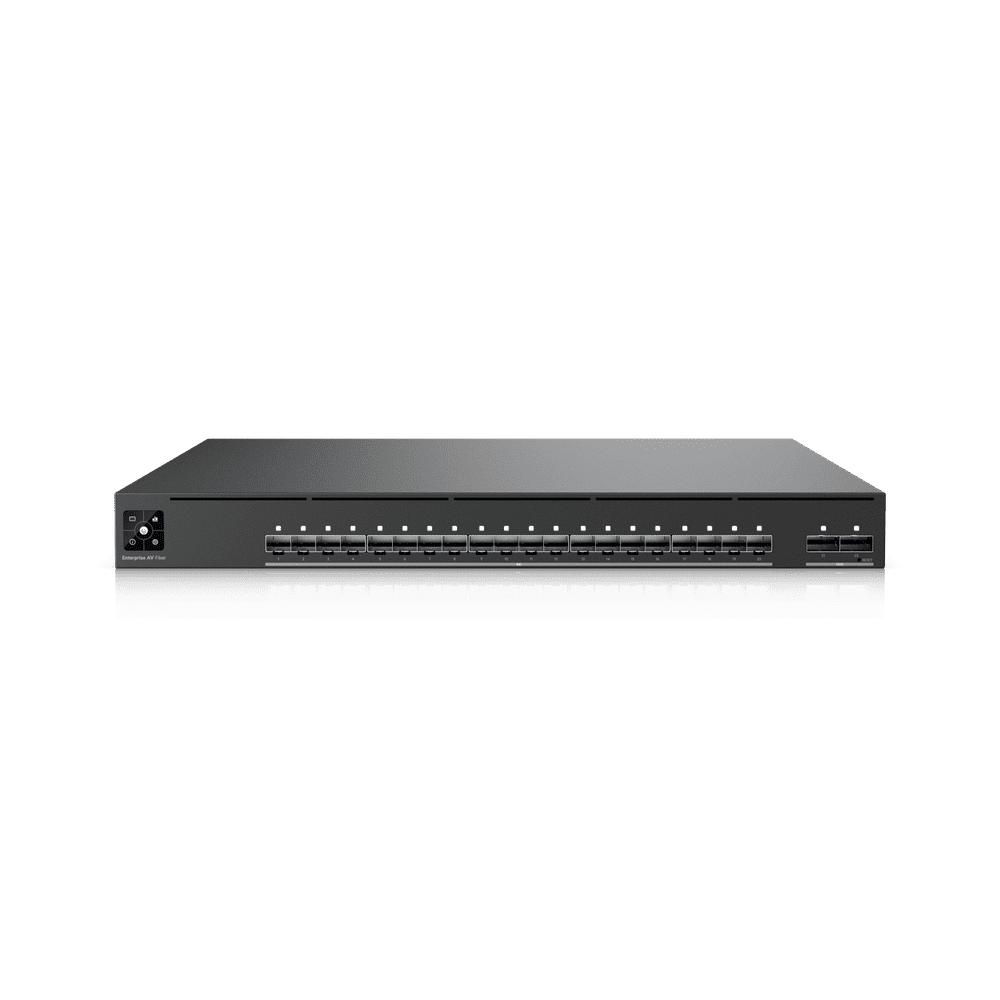

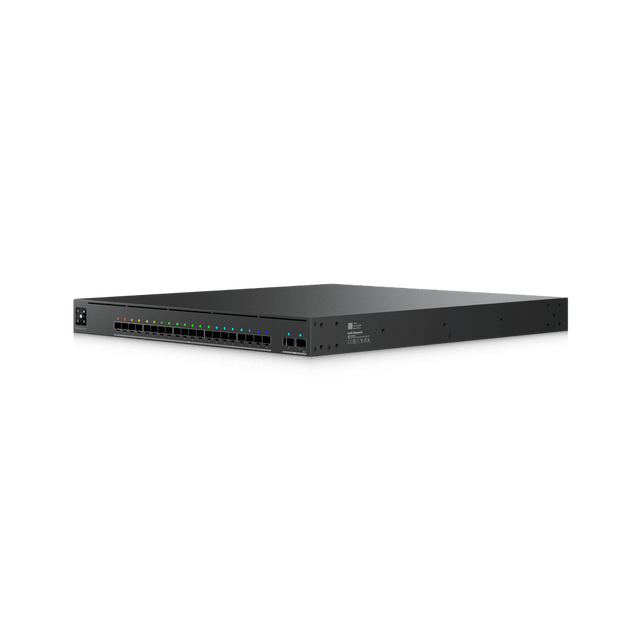

EAV-Fiber Ubiquiti UniFi Enterprise Audio/Video Fibre Switch
- Order today · 31 OctSupplier order placed the same day
- Date confirmedBy email, from the supplier ETA
- Delivered · by 30 Nov – 9 Dec21–28 working days from your order
Want the lead time confirmed first? Chat with us 7am–10pm, 7 days.
How special orders work
How special orders work
We are just not quite the same as many of the other online stores. I know it is easy to say that, but we just aren't.
The Tech Geeks, under their parent company Twelve Times (Worldwide) Pty Ltd trade in Australia, New Zealand and the United Kingdom.
This allows us to purchase stock from suppliers from locations where they have it available. We are then able to import those products directly, along with providing localised Warranty and Replacement as required.
We only list items that we know have been, or are about to be released to us and since we purchase only in small batches these are often flown in on short time frames.
We list on each product our expected shipments and ones that we have already sent out to customers. Please use these dates as a guideline as we always suggest 14-21 days just to allow for air freight or customs hold ups.
Want to know when new product stock is released? why not sign up here to our alerts.
Description
Description
The Ubiquiti EAV-Fiber is a high‑performance enterprise‑grade audio and video fibre switch designed for precision‑timed AV‑over‑IP environments. Built specifically for professional media networks, the EAV-Fiber delivers deterministic low‑latency switching with advanced PTP timing support, ensuring perfectly synchronised audio and video across large‑scale deployments.
Featuring 20 × 10G SFP+ ports and 2 × 100G QSFP28 uplinks, the EAV-Fiber provides exceptional throughput for demanding workflows such as SMPTE ST 2110, SDVoE and AES67 audio. A high‑precision OCXO clock and optional GPS grandmaster input allow for sub‑microsecond synchronisation, while Etherlighting™ offers instant visual port identification.
Key Features:
- 20 × 10G SFP+ and 2 × 100G QSFP28 fibre ports
- PTPv2, SyncE and professional AV profile support
- High‑precision OCXO clock with optional GPS input
- 800 Gbps switching capacity with non‑blocking throughput
- Hot‑swappable power supplies and fans
- UniFi Network management with advanced AV visibility
Ideal for:
Broadcast studios, live event venues, stadiums, theatres, corporate AV installations and any environment requiring perfectly synchronised audio and video over IP.
Compatible Products:
UniFi Enterprise Audio/Video Switches
UniFi AV‑over‑IP Endpoints
UniFi Network Controllers
Frequently asked questions2 questions
Does the EAV-Fiber support AV‑over‑IP standards?
Is the EAV-Fiber suitable for rack mounting?
Specifications34 specifications · 3 sections
| Overview | |
|---|---|
| Dimensions | 442.4 x 480 x 43.7 mm / (17.4 x 18.9 x 1.7") |
| Port Layout · 1 GbE RJ45 | 1 / (1G/100M/10M) |
| Port Layout · 10G SFP+ | 20 / (10G/1G) |
| Port Layout · 100G QSFP28 | 2 / (100G/40G) |
| Port Layout · Console | 1 |
| Port Layout · SMA | 1 |

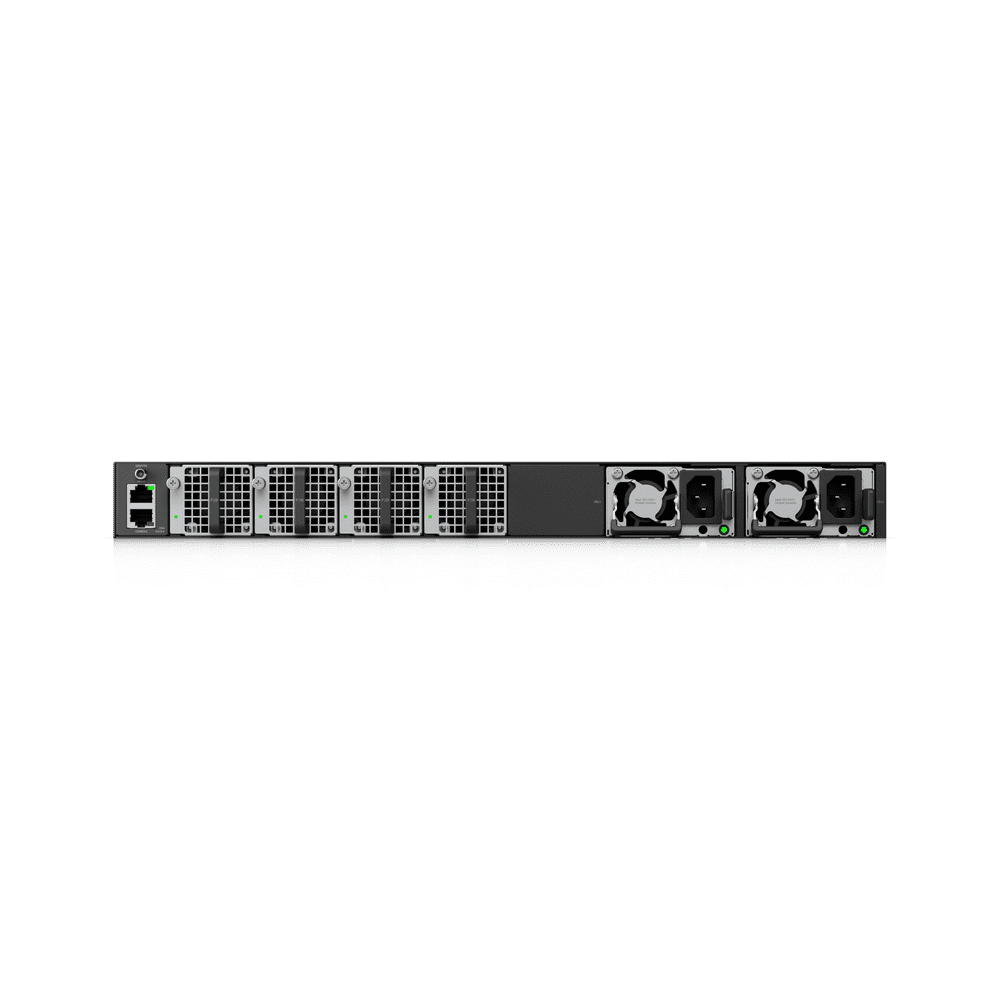

| Redundancy | (2) Hot-Swappable PSUs / (4) Hot-Swappable Fans |

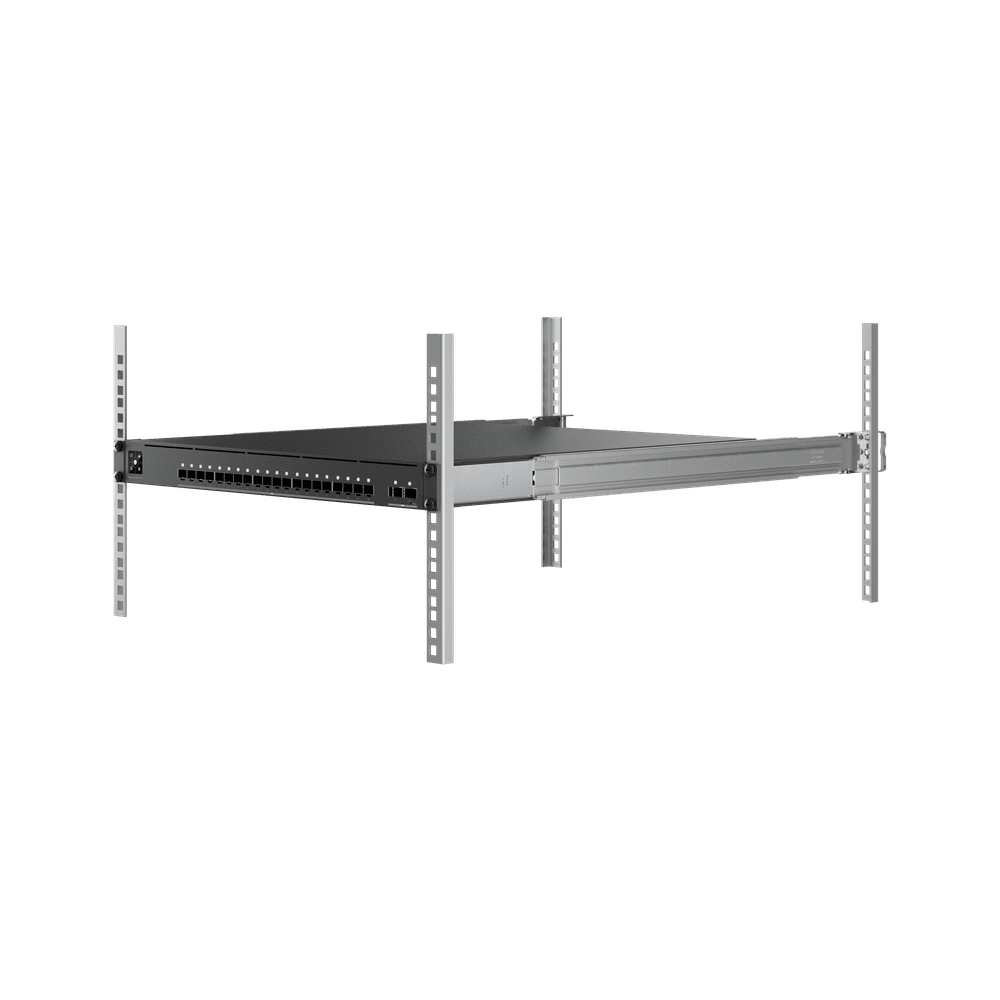

| Form Factor | Rack Mount (1U, Full-Depth) |
| Performance | |
| Switching Capacity | 800 Gbps |
| Total Non-Blocking Throughput | 400 Gbps |
| Forwarding Rate | 595 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| IPv4 Static Routes | 512 |
| Packet Buffer Size | 8 MB |
| Access Lists · IPv4 | 256 |
| Access Lists · MAC | 256 |
| Hardware | |
| Max. Power Consumption | 150W |
| Power Method | (2) Universal input, 100–240V AC, 50/60 Hz |
| Power Input Method | (2) AC input, Hot-swappable power modules |
| Power Supply | (2) Hot-swappable AC/DC 150W power modules |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet / AR / Serial Console |
| Heat Dissipation | 512 BTU/hr |
| Weight | Without mounting brackets: 8.95 kg (19.7 lb) / With mounting brackets: 9.05 kg (20 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 482.6 mm (19") four-post racks / Posts depths ranging from 650 to 1,000 mm (25.6–39.4”) |
| LCM Display | 1.3" touchscreen |
| Fan Method | (4) Hot-swappable fan modules |
| ESD Protection | Air: ± 12KV, contact: ± 8KV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
