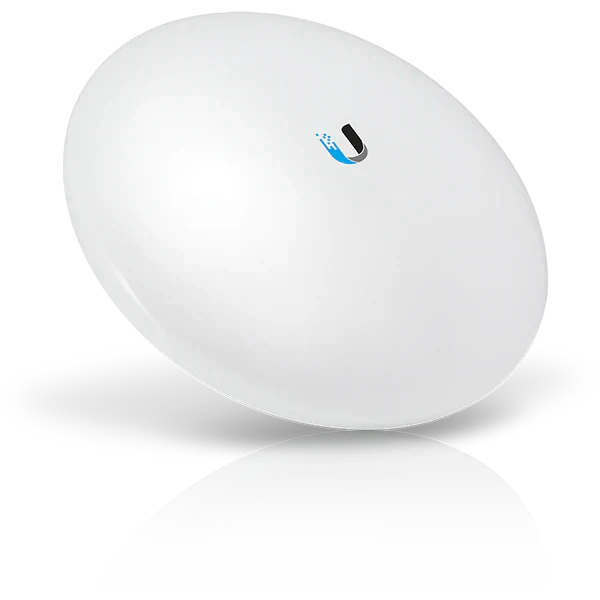

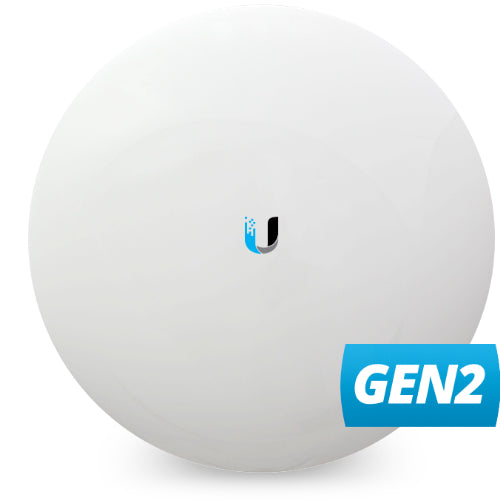

NBE-5AC-GEN2 NanoBeam 5AC Gen2
Description
Description
This High-Performance airMAX Bridge incorporates innovative industrial design with proprietary airMAX AC technology. The NanoBeam AC is ideal for CPE deployments requiring maximum performance from the smallest possible footprint.
The updated version has all the benefits of the old NBE-5AC-19, and the sleek NanoBeam design with proprietary airMAX ac chipset and dedicated management Wi-Fi provides easy UISP® mobile app support and fast setup with enhanced surge protection.

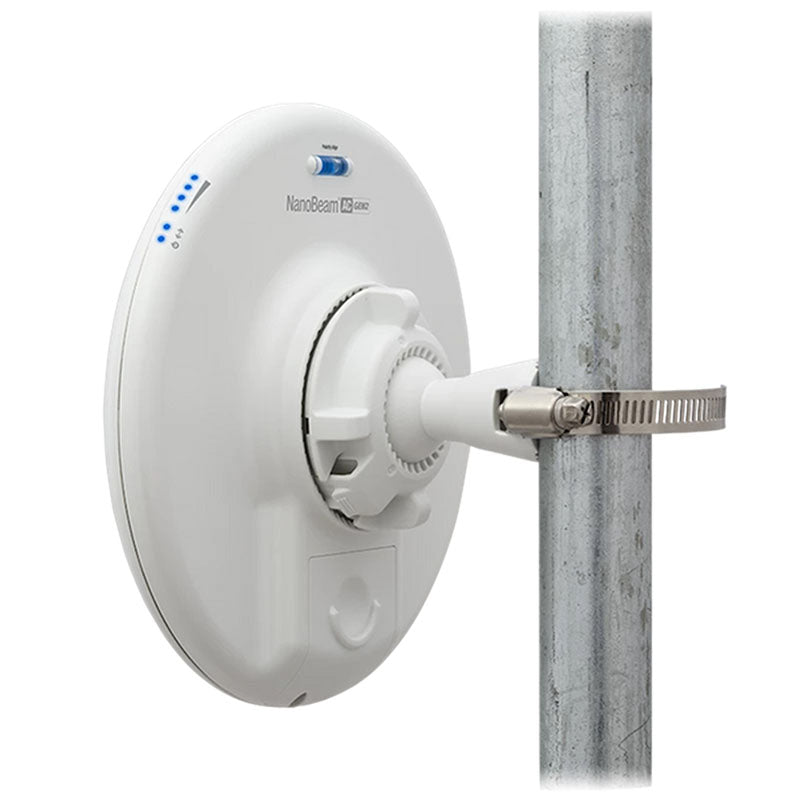

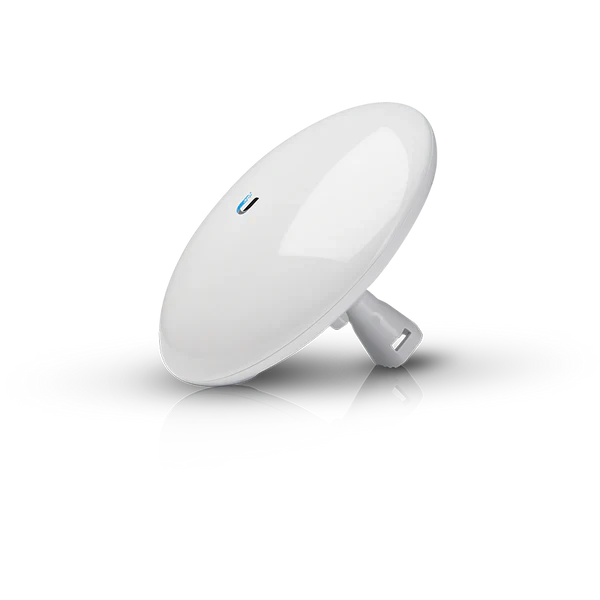

This airMAX ac CPE pivots on a ball joint for mounting and alignment flexibility.
Features:
Frequency 5 Ghz
Throughput 450+ Mbps
Range 15+ km
Improved Wide band width Antenna
Dedicated Wi-Fi Radio for Management
airMAX ac Processor for Superior Performance
Improved surge protection
PoE Included
Specifications28 specifications · 7 sections
| Mechanical | |
|---|---|
| Dimensions | 189 x 189 x 125 mm / (7.44 x 7.44 x 4.92") |
| Weight | 530 g (1.17 lb) |
| Enclosure Materials | UV-stabilized polycarbonate |
| Mounting | Pole Mount (Included) / Wall Mount (Optional) |
| Wind Loading | 45.4 N at 200 km/h (10.2 lbf at 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Hardware | |

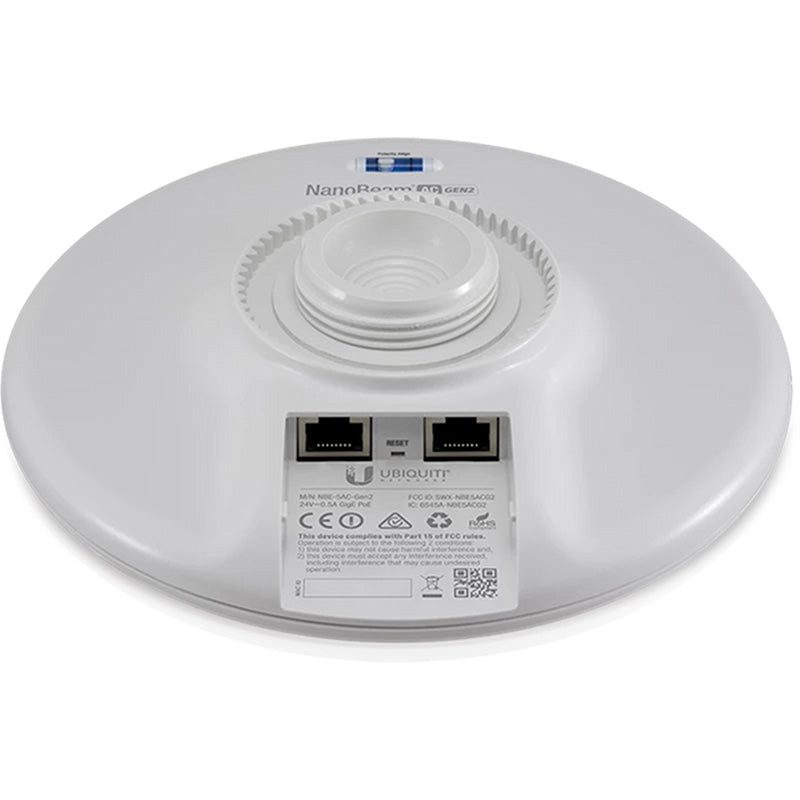

| Networking Interface | (2) GbE RJ45 ports |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power Supply | 24V, 0.5A gigabit PoE adapter (Included) |
| Supported Voltage Range | 20–27V DC |
| Max. Power Consumption | 8.5W |
| Ambient Operating Temperature | -40 to 80° C (-40 to 176 F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Qualifications | |
| Salt Fog Test | IEC 68-2-11 (ASTM B117) / Equivalent: MIL-STD-810 G method 509.5 |
| Temperature shock test | IEC 68-2-14 |
| UV test | IEC 68-2-5 at 40° C (104° F) / Equivalent: ETS 300 019-1-4 |
| Vibration test | IEC 68-2-6 |
| Wind-Driven Rain Test | ETS 300 019-1-4 / Equivalent: MIL-STD-810 G method 506.5 |
| Software | |
| Operating Modes | Access Point / Station |
| QoS | WMM packet classification with user-level priority: High, Medium, Low |
| System | |
| Channel Bandwidth | PtP Mode: 10/20/30/40/50/60/80 MHz / PtPM Mode:10/20/30/40 MHz |
| Antenna Gain | 19 dBi |
| Max. VSWR | 1.5:1 |
| Polarization | Dual-Linear |
| Radio Frequency | |
| Supported Frequency Range · Worldwide | 5150 - 5875 MHz |
| Supported Frequency Range · US/CA | U-NII-1: 5150-5250 MHz / U-NII-2A: 5250-5350 MHz / U-NII-2C: 5470-5725 MHz / U-NII-3: 5725-5850 MHz |
| Management Radio (MHz) | |
| Supported Frequency Range · Worldwide | 2412 - 2472 MHz |
