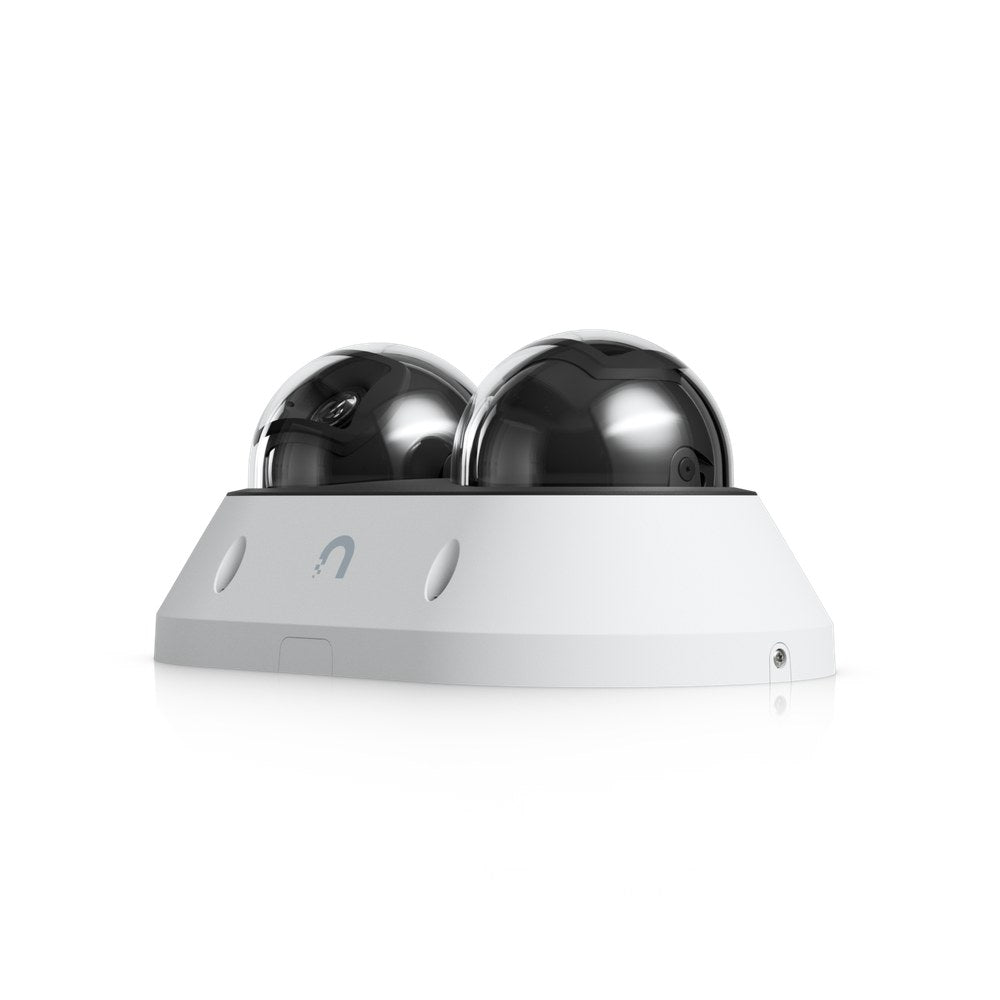

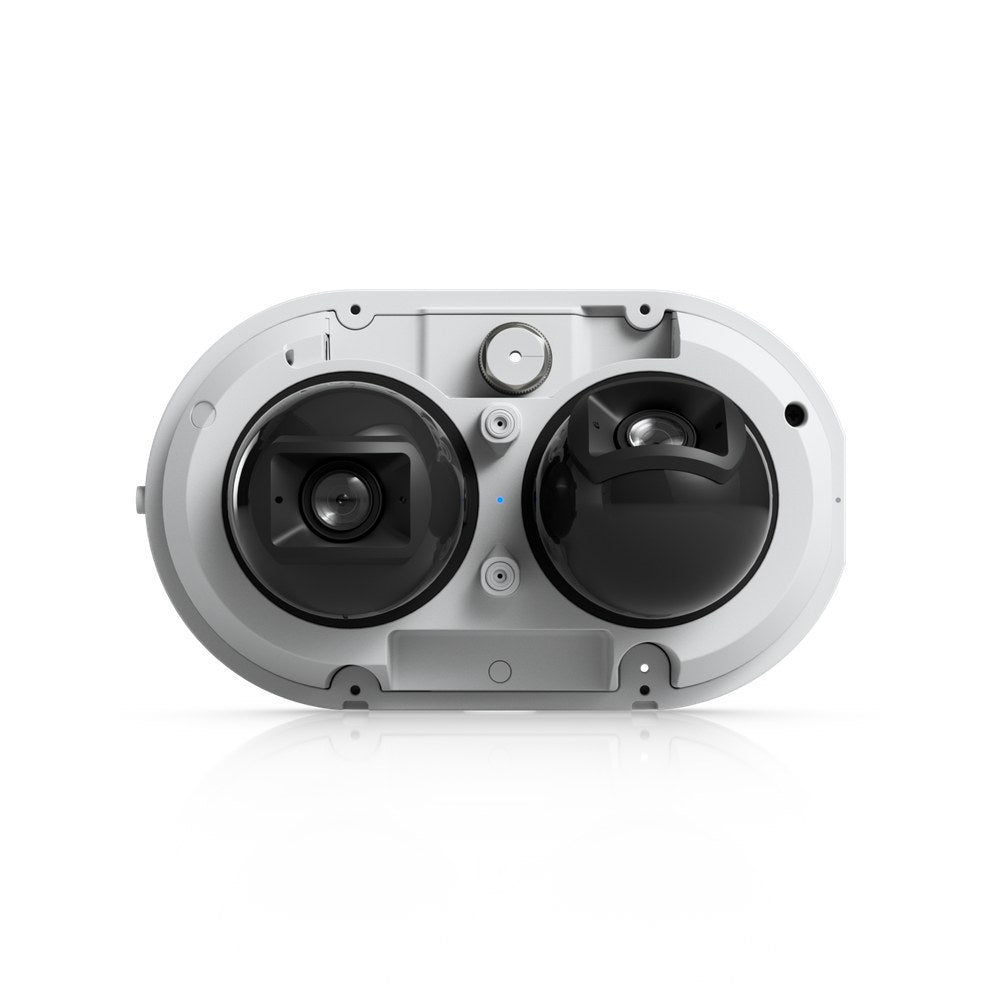

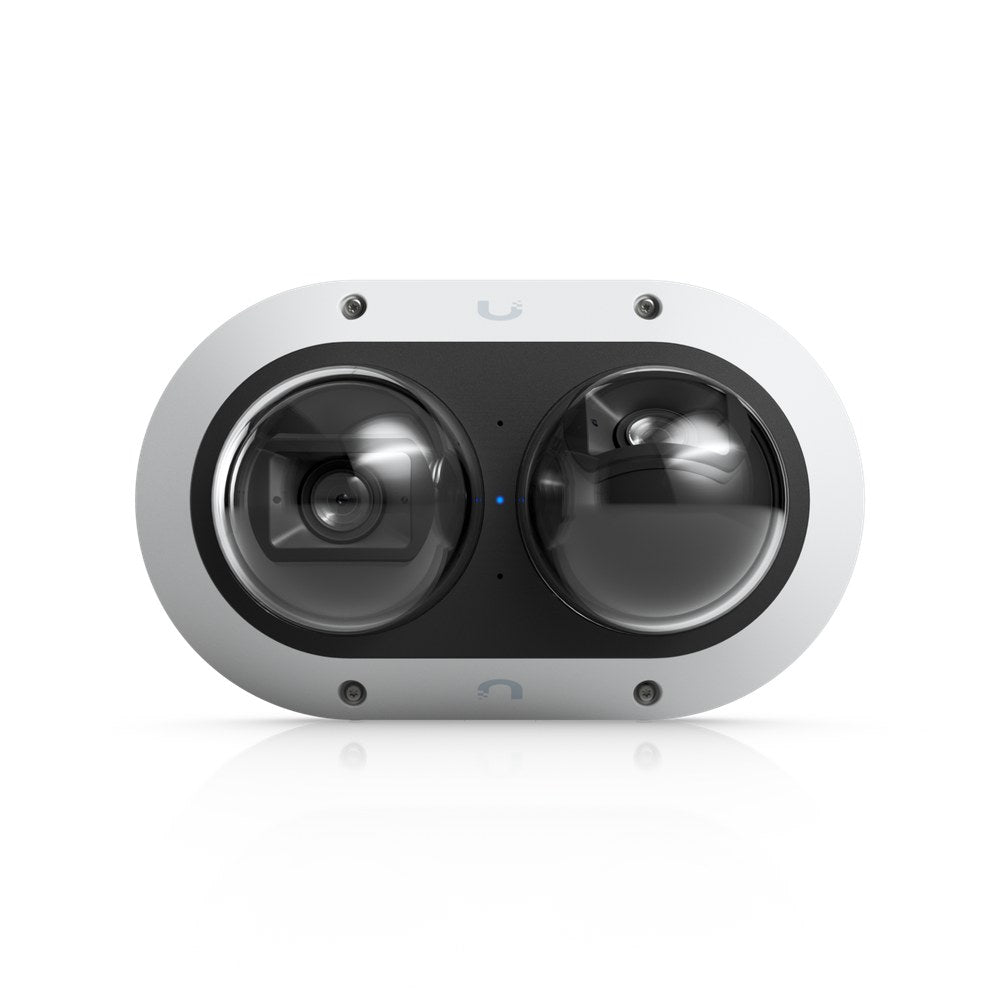

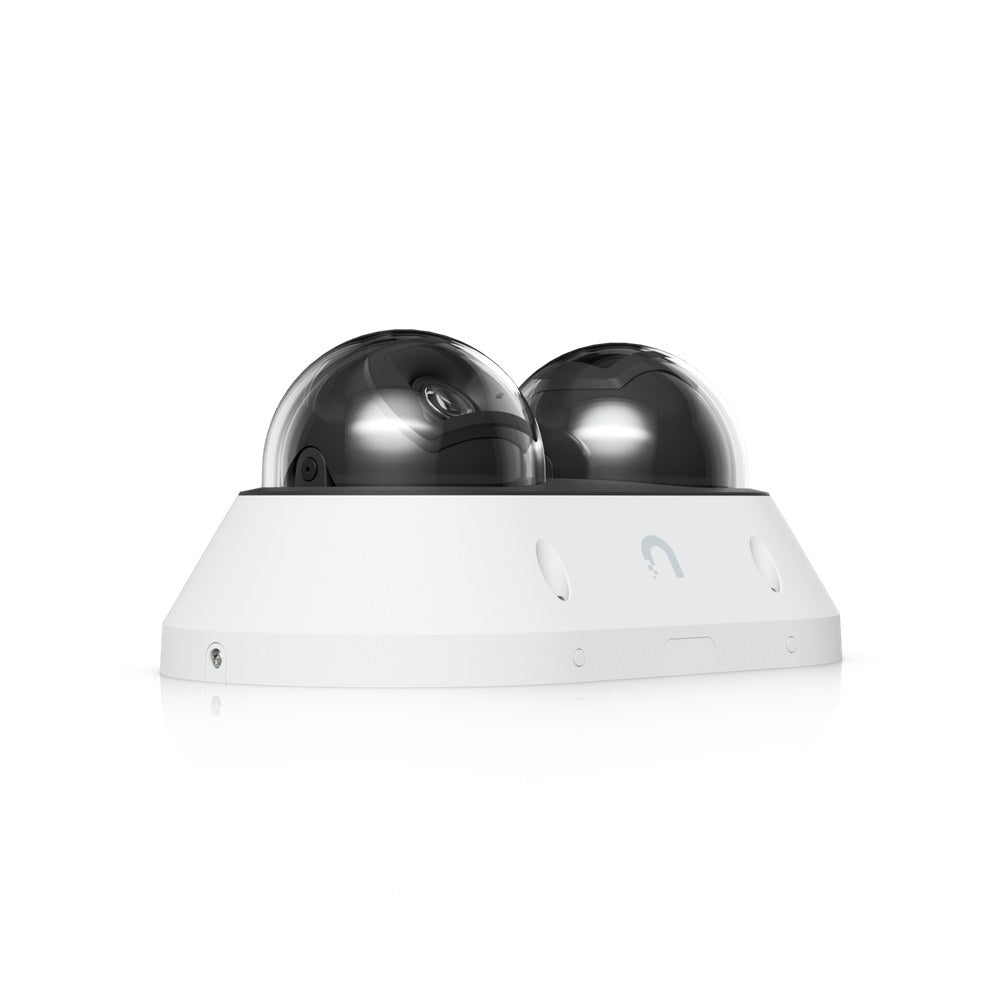

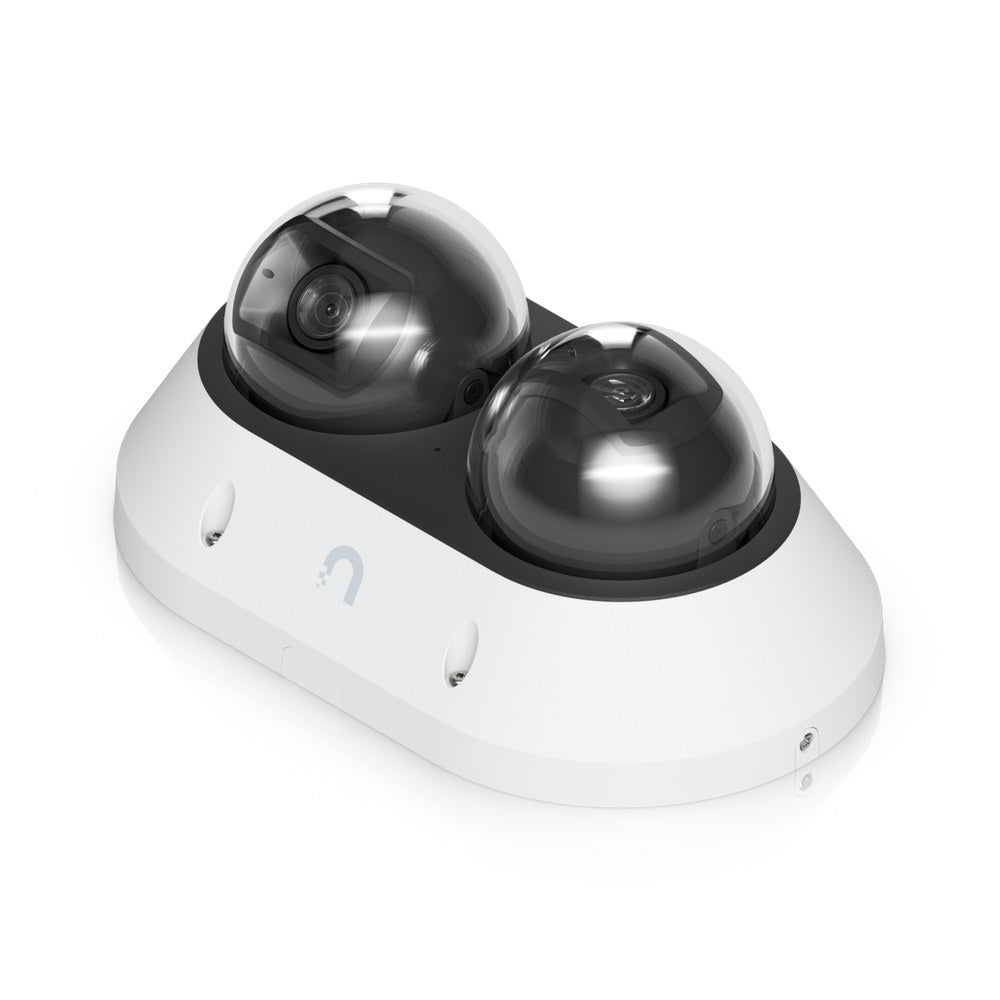

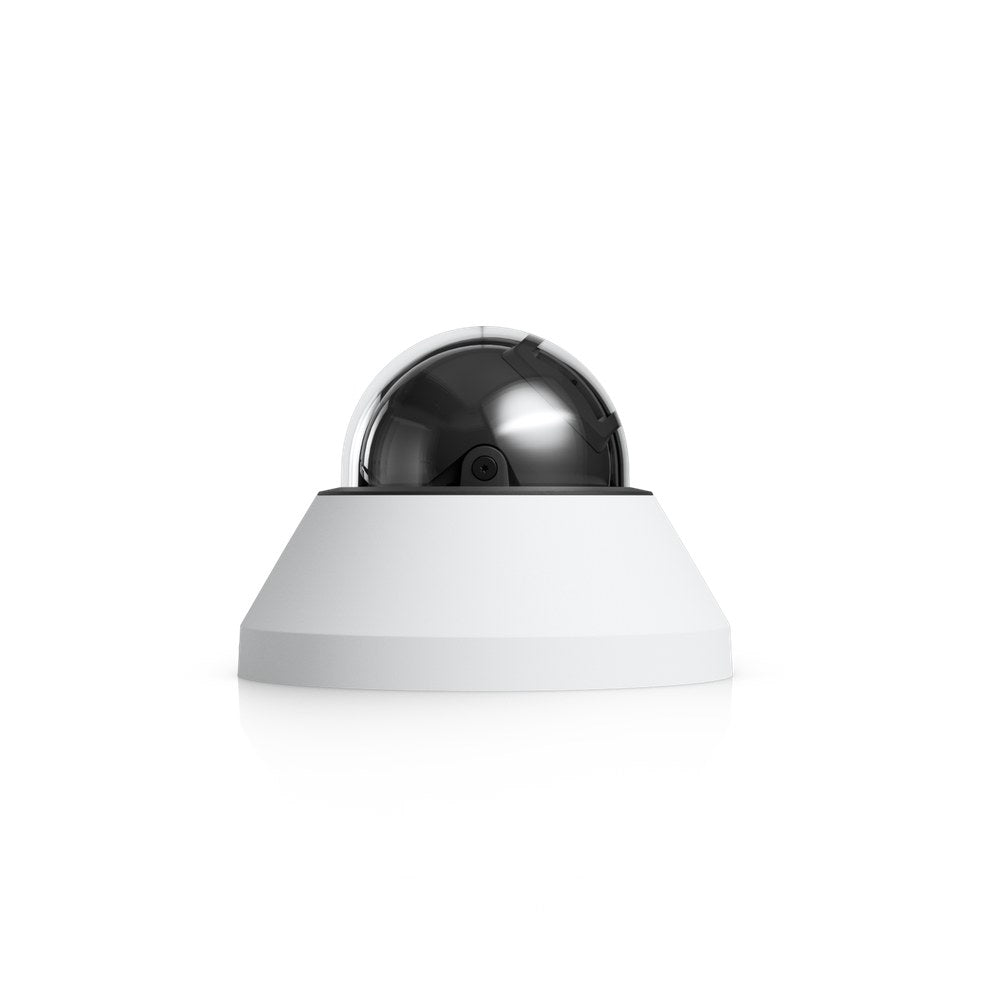

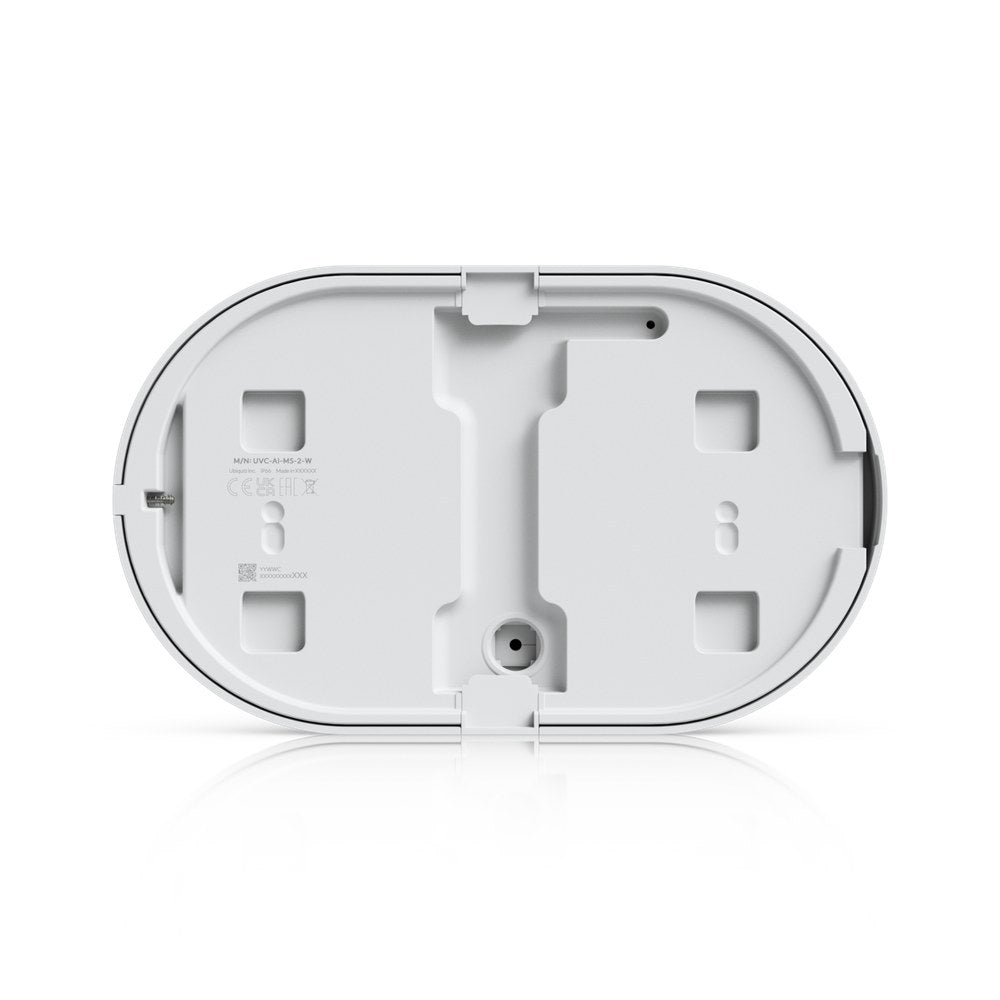

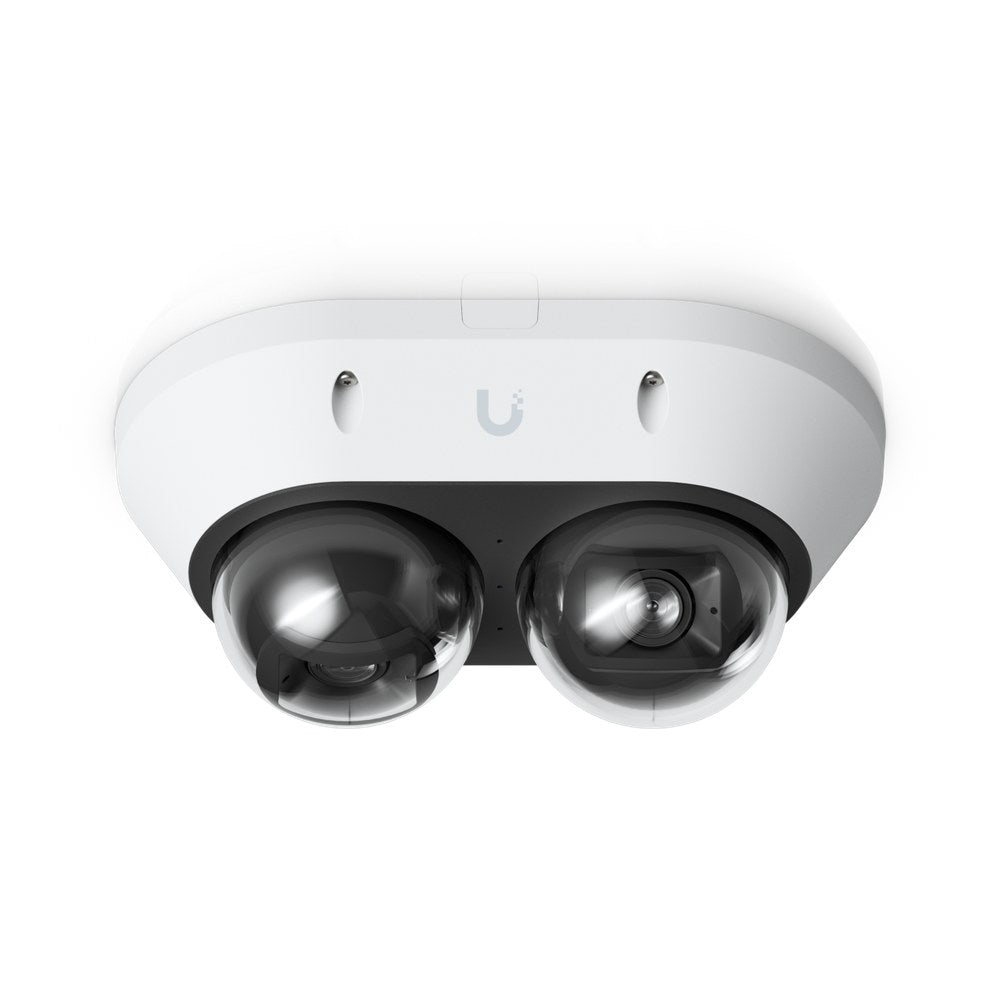

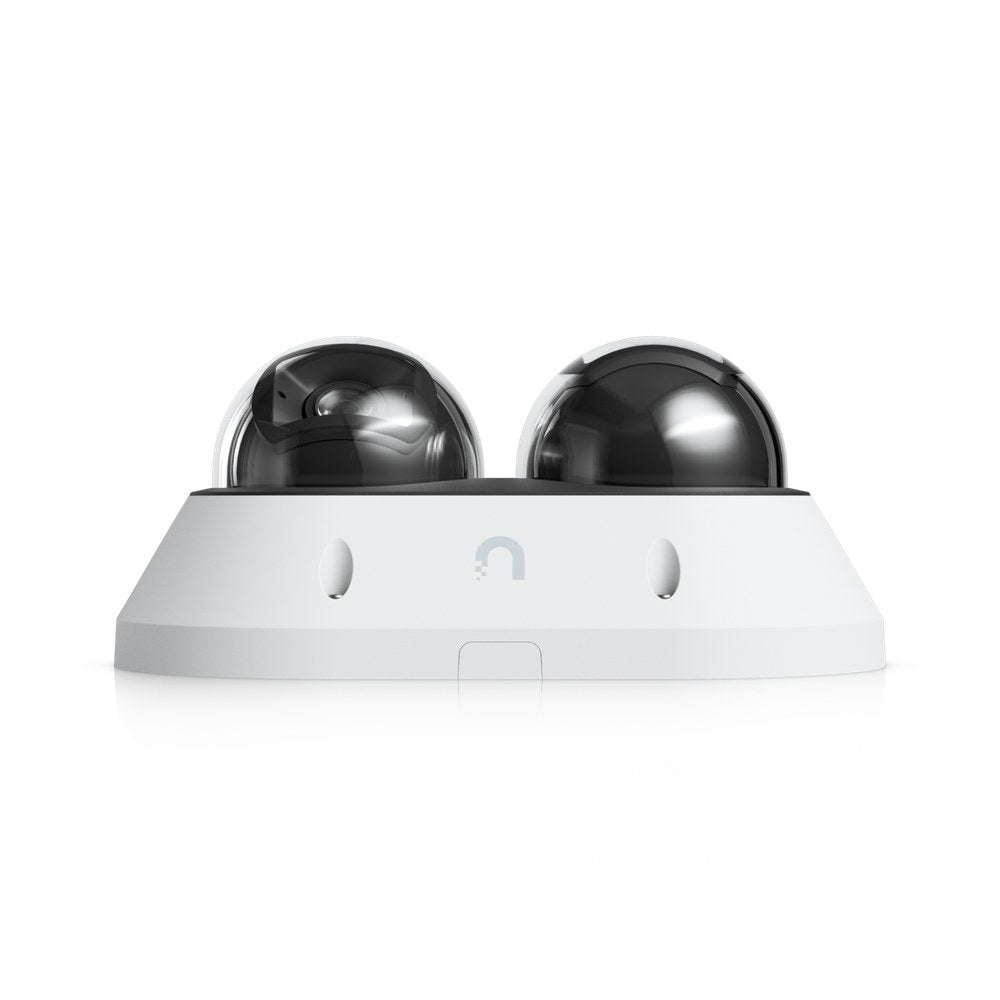

UVC-AI-MS-2-W - Ubiquiti UniFi Protect AI Multi Sensor 2 Camera (White)
Description
Description
The Ubiquiti UniFi Protect AI Multi Sensor 2 (UVC-AI-MS-2-W) is an all-weather PoE+ 16MP multi-sensor camera featuring a Multi-TOPS AI engine, 2.33× optical zoom, and 20 m IR night vision coverage. This advanced security camera features two independently adjustable lenses for seamless wide-area and close-up monitoring, making it ideal for comprehensive surveillance applications.
Designed for both wide-area coverage and detailed close-up monitoring, the AI Multi Sensor 2 delivers exceptional performance with enhanced AI detection capabilities including smart detections for people, vehicles, and animals. The camera's 4K resolution ensures crystal-clear footage for critical surveillance scenarios.
Key Features:
- 16MP resolution with two independently adjustable lenses
- Multi-TOPS AI engine for enhanced detection capabilities
- 2.33× optical zoom for flexible monitoring
- 20 m IR night vision range
- All-weather design with PoE+ power
- IK10 tamper resistance for vandal-proof operation
- Smart detections for people, vehicles, and animals
- Face recognition and license plate recognition capabilities
Ideal for: Commercial properties, car parks, retail environments, warehouses, and any application requiring comprehensive wide-area coverage combined with detailed close-up monitoring.
Compatible Products
UniFi Protect Network Video Recorders: The UVC-AI-MS-2-W integrates seamlessly with UniFi Protect NVRs including the UNVR-G2-Pro, UNVR-G2, UNVR-Pro, and UNVR for centralised video management and storage.
AI Enhancement Appliances: Expand detection capabilities with the AI Key or AI Port for advanced AI-driven threat detection and analytics across your deployment.
Mounting Accessories: Compatible with optional arm, pole, corner, and pendant mounting accessories for flexible installation in various environments.
Network Accessories: Pair with High Capacity microSD Cards for local storage backup, Ethernet Surge Protection for outdoor installations, and UniFi Patch Cables for reliable connectivity.
Specifications30 specifications · 3 sections
| Overview | |
|---|---|
| Dimensions | 218 x 132 x 93.5 mm / (8.6 x 5.2 x 3.7") |
| IR Night Vision | 20 m (65 ft) |
| Zoom Mode | 2.33x Optical |
| Resolution | 16 MP |
| Field of View | Wide: H:108.8°, V:57.6° , D:130.8° / Tele: H:42.8°, V:24.1° , D:49.1° |
| Audio | Microphone |
| Weatherproofing | IP66 |
| Tamper Resistance | IK10 |
| Mounting | Ceiling, Wall, Pole mount, Conduit pipe adapter (Included) / Weather Shield, Arm, Pendant mount / (Optional) |
| Performance | |
| Networking Interface | GbE RJ45 port |
| Video · Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR |
| Video · Max. Frame Rate | 30 FPS |
| Video · Resolution | (2) 8MP 3840 x 2160 (16:9) |
| Optics · Sensor | 1/2.8" 8MP |
| Optics · Lens | (2) F 3.18-7.42 mm; ƒ/1.8-ƒ/2.8 |
| Optics · Night Mode | Built-in adaptive IR LED illumination and IR cut filter |
| Hardware | |
| Max. Power Consumption | 25W |
| Supported Voltage Range | 42.5–57V DC |
| Power Method | PoE+ |
| Processor | Dual-core Arm® Cortex®-A76 based chip |
| Weight | 1.3 kg (3 lb) |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Mount Material | Polycarbonate, stainless steel |
| Expansion Slot | MicroSD card |
| Button | (1) Factory-reset |
| LEDs | Status LED |
| Cable · Cable Diameter | Max. 6.5 mm (0.26") |
| Ambient Operating Temperature | -20 to 50º C (-4 to 122º F) |
| Ambient Operating Humidity | 0 to 90% noncondensing |
| Certifications | CE, FCC, IC |
