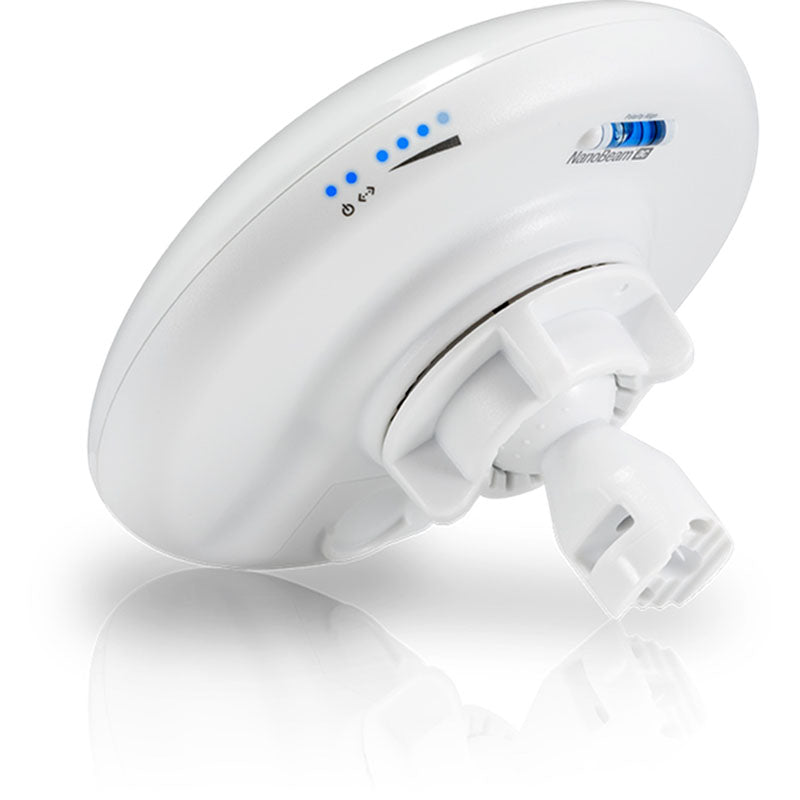

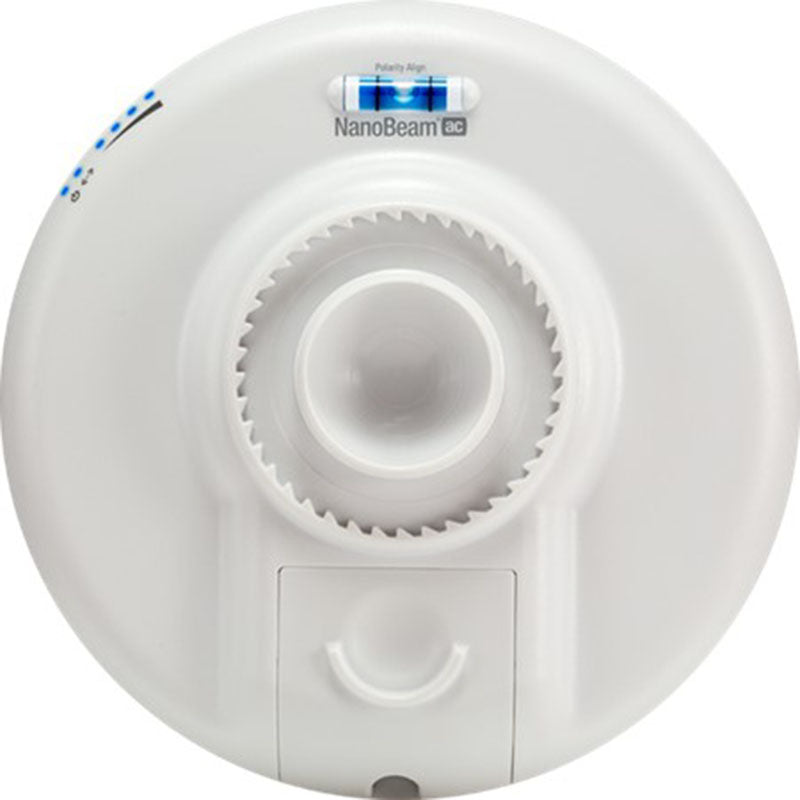

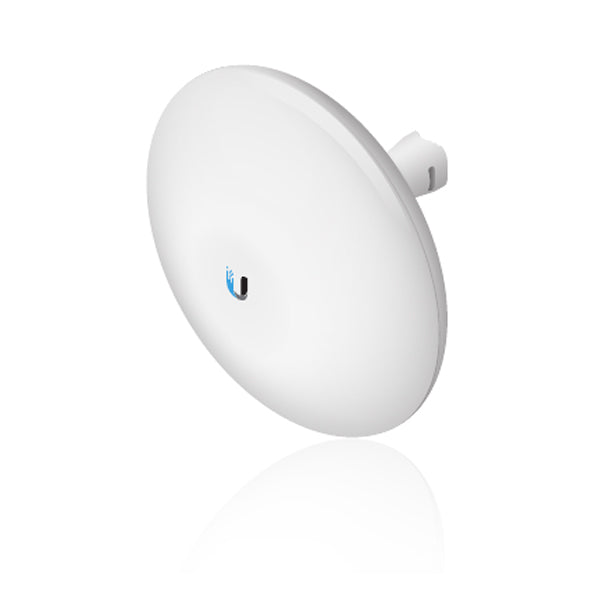

NBE-2AC-13 Ubiquiti airMAX NanoBeam AC 2.4GHz Station
Description
Description
The NanoBeam directs RF energy in a tighter beamwidth. With the focus in one direction, the NanoBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.
The mounting bracket conveniently offers 20° of uptilt and up to 20° of downtilt.

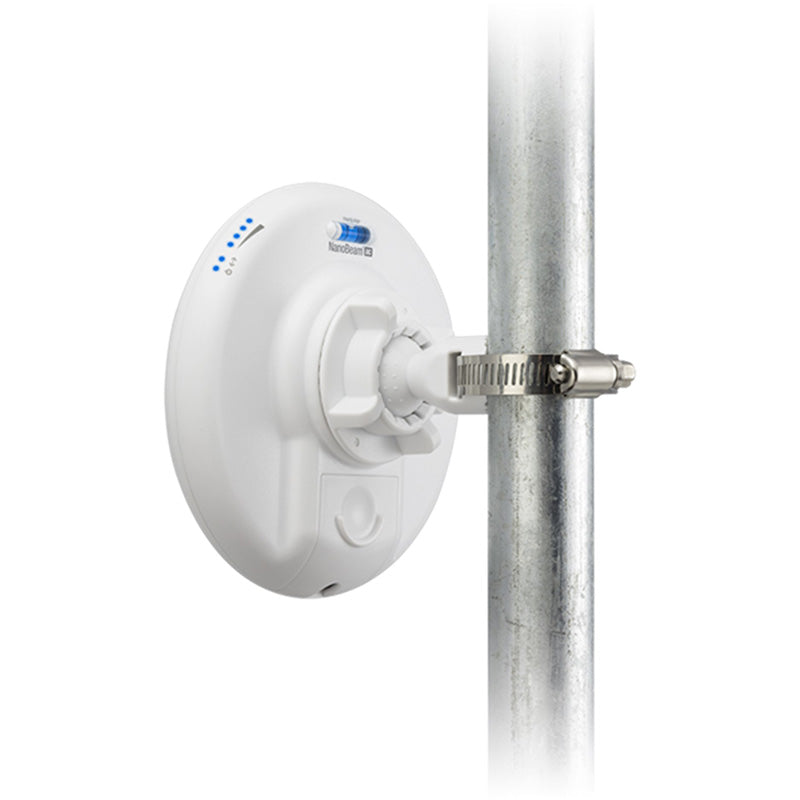

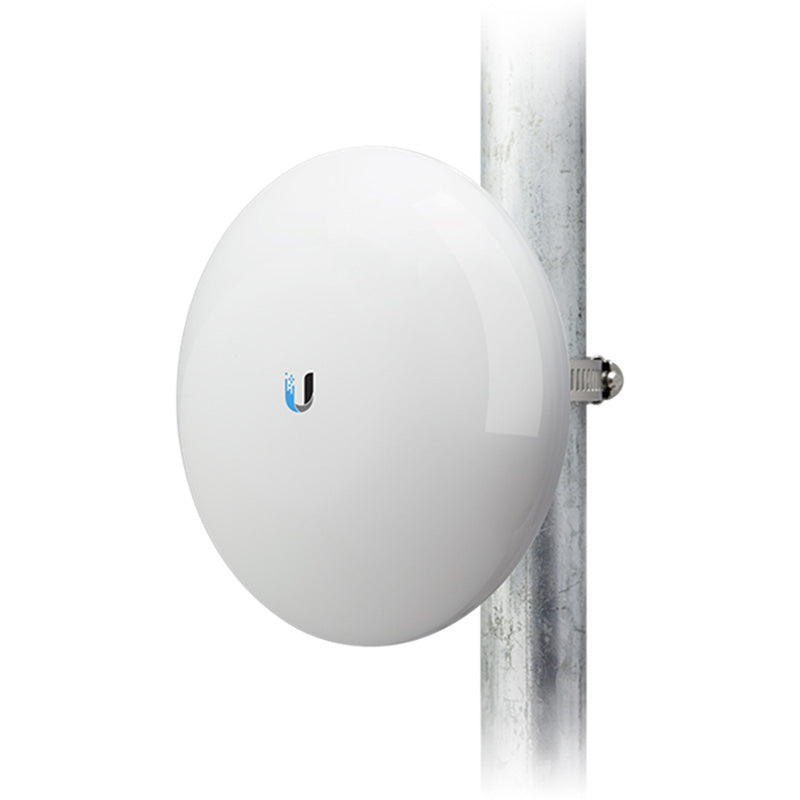

The number of fasteners was reduced to simplify assembly. Tools are required only when the technician mounts the NanoBeam on the pole. The antenna feed can be detached with the push of a button.
Fasteners GEOMET®-coated for improved corrosion resistance when compared with zinc-plated fasteners.
Features:
New antenna
Improved design
Management WiFi Radio/UISP mobile app
Specifications30 specifications · 5 sections
| Mechanical | |
|---|---|
| Dimensions | ⌀189 x 125 mm / (⌀7.4 x 4.9") |
| Weight | 530 g (1.2 lb) |
| Enclosure Materials | UV-stabilized plastic |
| Mounting | Pole mount kit (Included) / Wall mount (Not included) / Window mount (Not included) |
| Wind Loading | 45.4 N at 200 km/h (10.2 lbf at 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Hardware | |
| Networking Interface | (1) GbE RJ45 port |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power Supply | 24V, 0.5A gigabit PoE adapter (Included) |
| Supported Voltage Range | 20–27V DC |
| Max. Power Consumption | 7.5W |
| ESD Protection | Air/contact: ± 24kV |
| Buttons | (1) Factory reset |
| Ambient Operating Temperature | -40 to 80° C (-40 to 176° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Qualifications | |
| Salt Fog Test | IEC 68-2-11 (ASTM B117) / Equivalent: MIL-STD-810 G method 509.5 |
| Temperature shock test | IEC 68-2-14 |
| UV test | IEC 68-2-5 at 40° C (104° F) / Equivalent: ETS 300 019-1-4 |
| Vibration test | IEC 68-2-6 |
| Wind-Driven Rain Test | ETS 300 019-1-4 / Equivalent: MIL-STD-810 G method 506.5 |
| System | |
| Total Throughput | 150+ Mbps |
| Channel Bandwidth | 10/20/40 MHz |
| Antenna Gain | 13 dBi |
| Max. VSWR | 1.5:1 |
| Polarization | Dual linear |
| Operating Frequency · Worldwide | 2412 - 2472 MHz |
| Operating Frequency · US/CA | 2412 - 2462 MHz |
| Management Radio (MHz) | |
| Supported Frequency Range · Worldwide | 5150 - 5250 MHz |
| Supported Frequency Range · US/CA | U-NII-3: 5725 - 5850 MHz |
