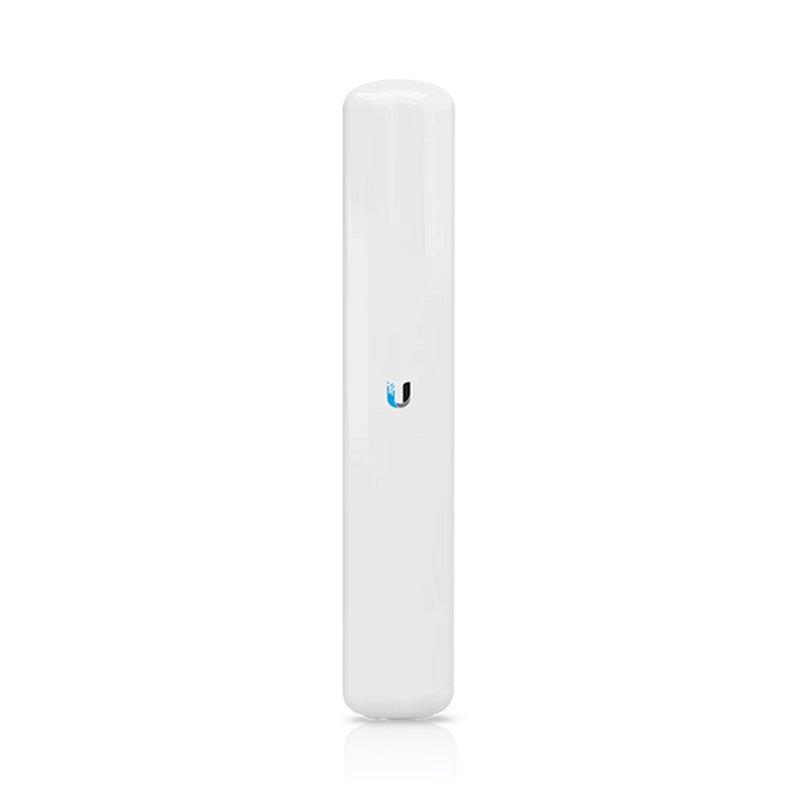

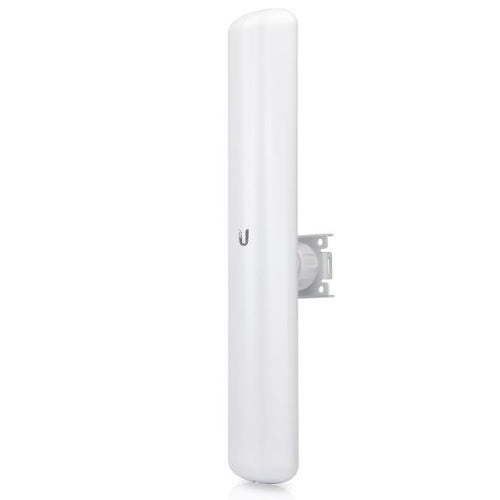

LAP-120 Ubiquiti airMAX LiteAP
Regular price
£82.26 GBP
Unit price
Description
Description
The LAP-120 is a 5 GHz, 16 dBi, 120° airMAX® AC AP featuring an ultra-lightweight form factor. It was designed to be an affordable cost/performance solution for long-distance, wireless broadband bridging.

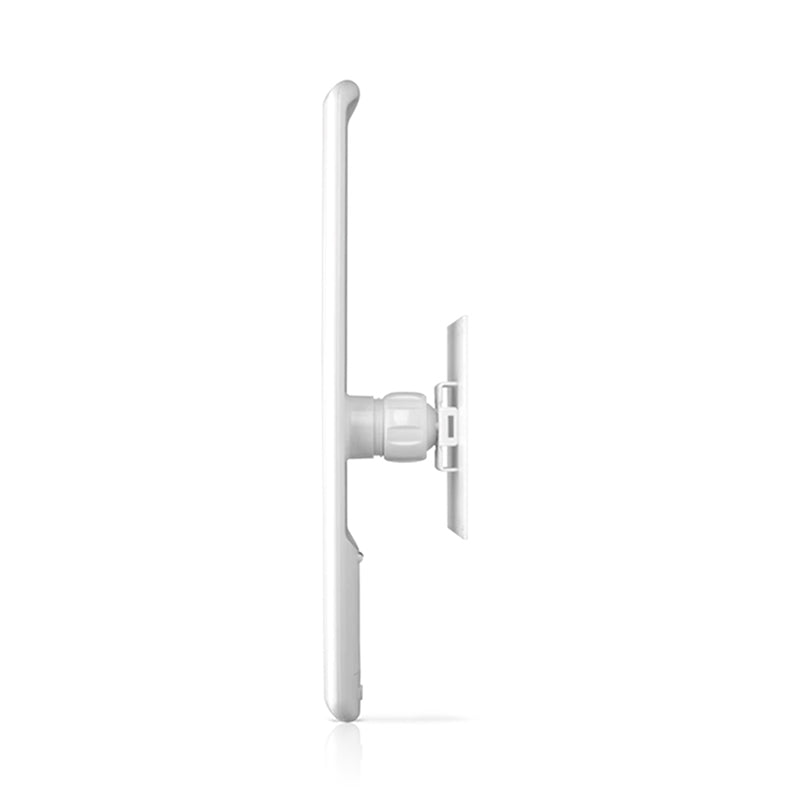

The ball-joint mount provides adjustment flexibility for versatile mounting options. Minimal fasteners simplify installation. No tools are needed; only a single wrench is required for pole-mounting.
Specifications18 specifications · 5 sections
| Mechanical | |
|---|---|
| Dimensions | 452.3 x 78.7 x 54.4 mm / (17.8 x 3.1 x 2.14") |
| Weight | 420 g (14.82 oz) |
| Wind Loading | 77 N at 200 km/h (17.3 lbf at 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Hardware | |
| Networking Interface | (1) GbE RJ45 port |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power Supply | 24V, 0.5A gigabit PoE adapter (Included) |
| Supported Voltage Range | 20—27V DC |
| Max. Power Consumption | 8W |
| Ambient Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Shock and Vibration Certification | ETSI300-019-1.4 |
| Certifications | CE, FCC, IC |
| Software | |
| Operating Modes | Access Point / Station |
| QoS | WMM packet classification with user-level priority: High, Medium, Low |
| System | |
| Antenna Gain | 16 dBi |
| Radio Frequency | |
| Supported Frequency Range · Worldwide | 5150 - 5875 MHz |
| Supported Frequency Range · US/CA | U-NII-1: 5150 – 5250 MHz / U-NII-2A: 5250 – 5350 MHz / U-NII-2C: 5470 – 5725 MHz / U-NII-3: 5725 – 5850 MHz |
Source: Ubiquiti technical specifications, checked 28 Oct 2026.Model LAP-120 · Ubiquiti's spec sheet
