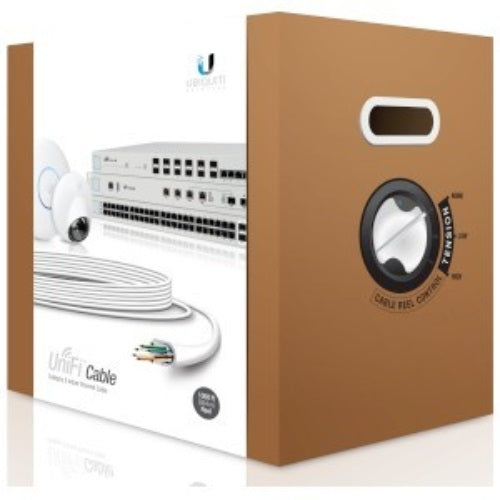

U-Cable-C6-CMR Ubiquiti UniFi Indoor Cable CMR (304m)
Description
Description
Ubiquiti UniFi Cable Cat6, CMR, 1000' (304m) length
Ubiquiti Networks introduces UniFi® Category 6 Indoor Ethernet Cable for your high-speed UniFi and general indoor network deployments.
Available in lengths of 1000 ft (304 m), UniFi Cable is Category 6 UTP (Unshielded Twisted Pair) cabling that supports speeds of up to 10G Ethernet. It uses 23 AWG solid copper conductor pairs and an anti-crosstalk divider, which improves pair isolation.
CMR (Communications Multipurpose cable, Riser) cabling is flame-retardant and can be run vertically between floors in non-plenum areas. UniFi Cable is CMR fire-rated (also called riser-rated), making it suitable for in-wall and riser cabling applications.
We recommend using Category 6 Ethernet connectors to optimize performance and accommodate the size of the 23 AWG conductors.
Features:
Category 6 Unshielded Twisted Pair (UTP) cable
Communications Multipurpose Cable, Riser (CMR)-rated, fire-resistant jacket
1,000 ft (305 m)
23 AWG solid copper, twisted pair conductor
Anti-crosstalk divider
For 1000BASE-T Ethernet applications
Click HERE to access the Datasheet
Specifications20 specifications · 1 sections
| Overview | |
|---|---|
| Length | 305 m (1,000 ft) |
| Type | Category 6 |
| Flame Rating | CMR |
| Operating Environment | Indoor |
| Box Dimensions | 476 x 306 x 419 mm / (18.7 x 12 x 16.5") |
| Box Weight | 14.6 kg (32.2 lb) |
| Cable · Jacket Color | White |
| Cable · Jacket Diameter | 5.9 ± 0.2 mm |
| Cable · Jacket Material | Flame retardant polyvinyl chloride (FRPVC) |
| Cable · Shielding Type | UTP |
| Cable · Conductor Type | Solid bare copper |
| Cable · Conductor Wire Gage | 23 AWG |
| Cable · Bend Radius | Min. 24 mm |
| Cable · Twisting | 4 Twisted pairs with color code. / Pair 1: white-blue / blue / Pair 2: white-orange / orange / Pair 3: white-green / green / Pair 4: white-brown / brown |
| Standards · Electrical Transmission | ANSI/TIA-568.2-D / ISO/IEC 11801 (Edition 2.2) / IEC 61156-5 (Edition 2.1) |
| Standards · Flame Test | UL 1666 (CMR) |
| Standards · Material and Construction | UL 444 / CSA 22.2 NO.214 / EU Directive 2011/65/EU (RoHS2) / EU Directive 2006/95/EC (LVD) |
| Installation Temperature | 0 to 60°C (32 to 140°F) |
| Ambient Storage Temperature | -20 to 75°C (-4 to 167°F) |
| Ambient Operating Temperature | -20 to 60°C (-4 to 140°F) |
