Manufacturer's photos. Where a power lead is pictured, a UK one is provided.
SKU:
UNAS-Pro

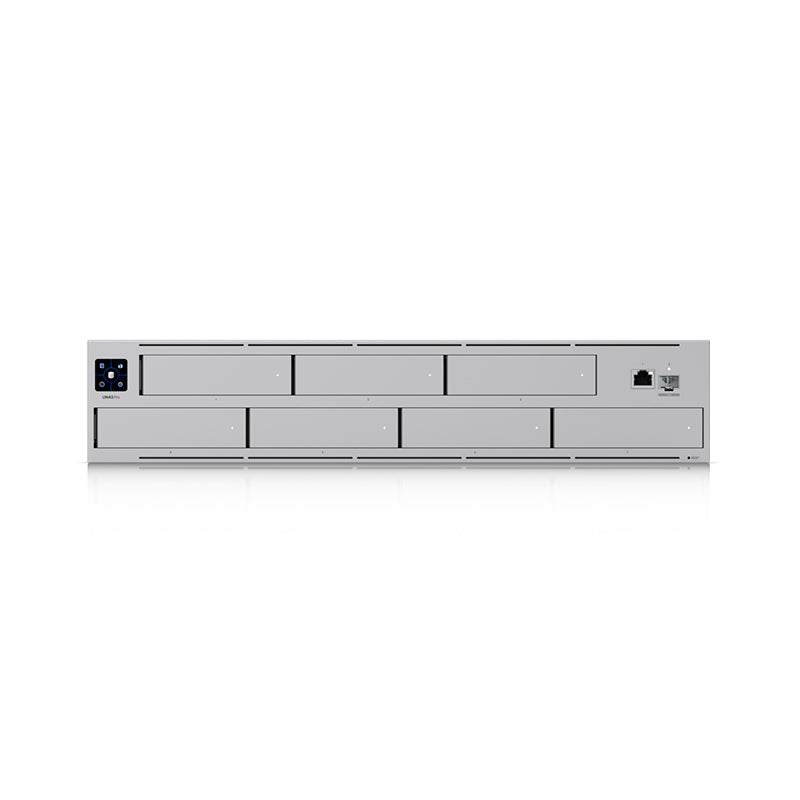

UNAS-Pro Ubiquiti UniFi UNAS Pro
Regular price
£518.13 GBP
Unit price
Description
Description
2U rack-mount Network Attached Storage with (7) 2.5/3.5" drive bays and 10 Gbps performance designed for large-scale file storage and sharing.
Features:
(7) 2.5/3.5" HDD / SSD support
(1) 10G SFP+ uplink and (1) GbE RJ45 port
Data protection with RAID storage technology
UniFi Power Backup ready
1.3" touchscreen for management
Specifications24 specifications · 3 sections
| Overview | |
|---|---|
| Dimensions | 442.4 x 325 x 87.4 mm / (17.4 x 12.8 x 3.4") |
| Storage Capacity | (7) 2.5/3.5" drive bays |
| Networking Interface | (1) 10G SFP+ (10G/1G) / (1) GbE RJ45 (1G/100M/10M) |
| Form Factor | Rack mount (2U) |
| Hardware | |
| Hard Drive Capacity | (7) 2.5/3.5" HDD / SSD support |
| Max. Power Budget for Drives | 135W |
| Max. Power Consumption | 160W |
| Power Method | (1) Universal AC input, 100–240V AC, 3A Max., 50/60 Hz / (1) USP-RPS DC input, 11.5V DC, 13.91A |
| Power Supply | AC/DC, internal, 200W |
| Processor | Quad-Core ARM® Cortex®-A57 at 1.7 GHz |
| Memory | 8 GB |
| Management | Ethernet |
| RF Interface | Bluetooth 4.1 |
| Display | 1.3" touchscreen |
| Weight | Without mounting brackets: 9.2 kg (20.3 lb) / With mounting brackets: 9.5 kg (20.8 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 482.6 mm (19") four-post racks / Posts depths ranging from 650 to 1,000 mm (25.6–39.4”) |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, CE, IC, Anatel: 01886-25-08356 |
| Software | |
| Application Requirements · UniFi Drive | Version 1.16.0 and later |
| Supported features on unifi.ui.com · RAID Type | RAID 5 / RAID 6 / RAID 10 |
| Supported features on unifi.ui.com · RAID Group | Multiple |
Source: Ubiquiti technical specifications, checked 28 Oct 2026.Model UNAS-Pro · Ubiquiti's spec sheet
