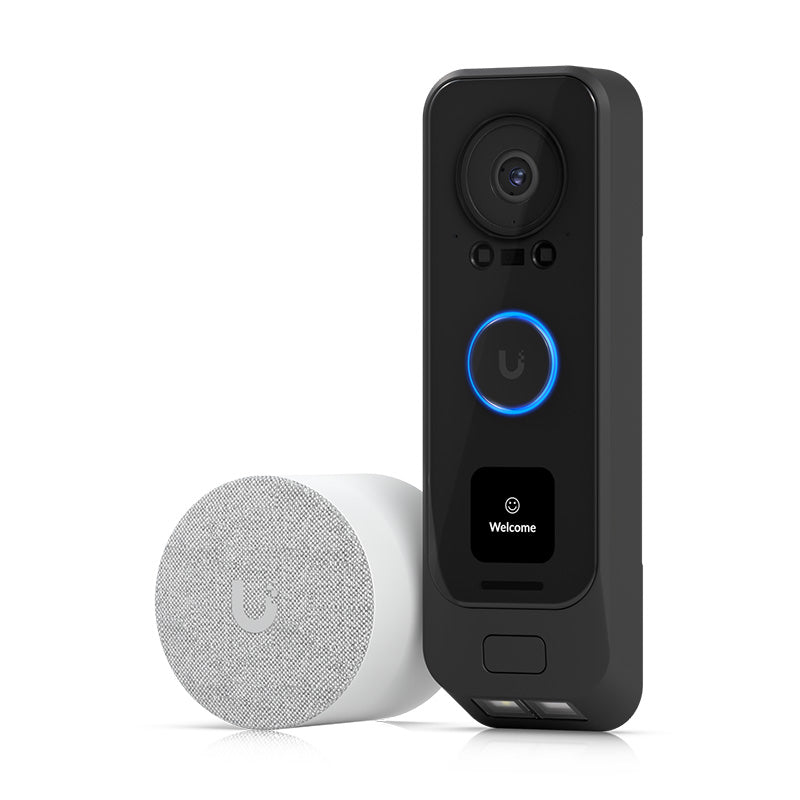

UVC-G4-Doorbell-Pro-PoE-Kit Ubiquiti UniFi G4 Doorbell Professional PoE Kit (Black)
Description
Description

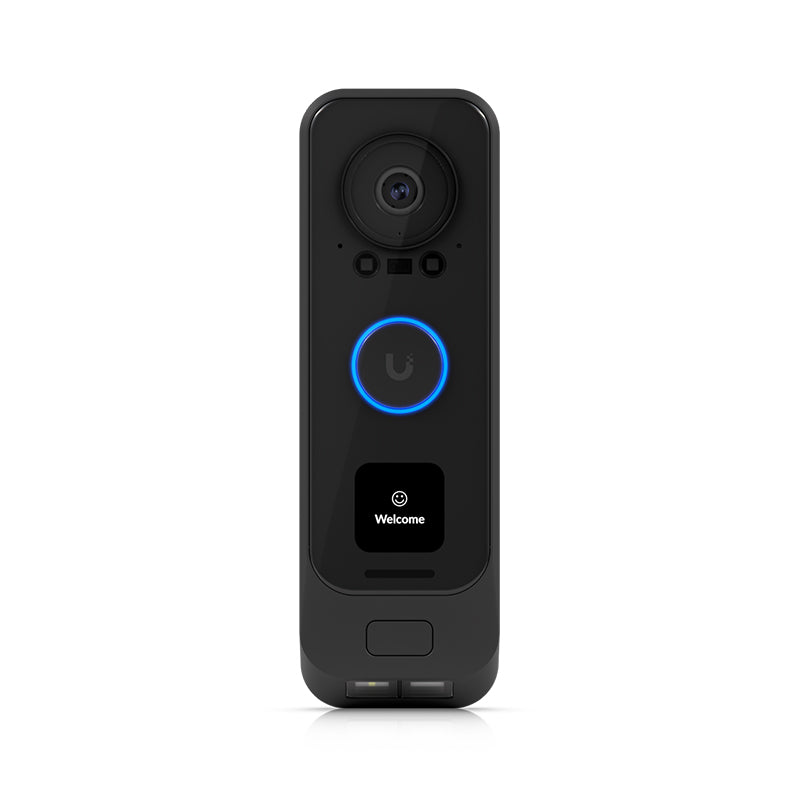

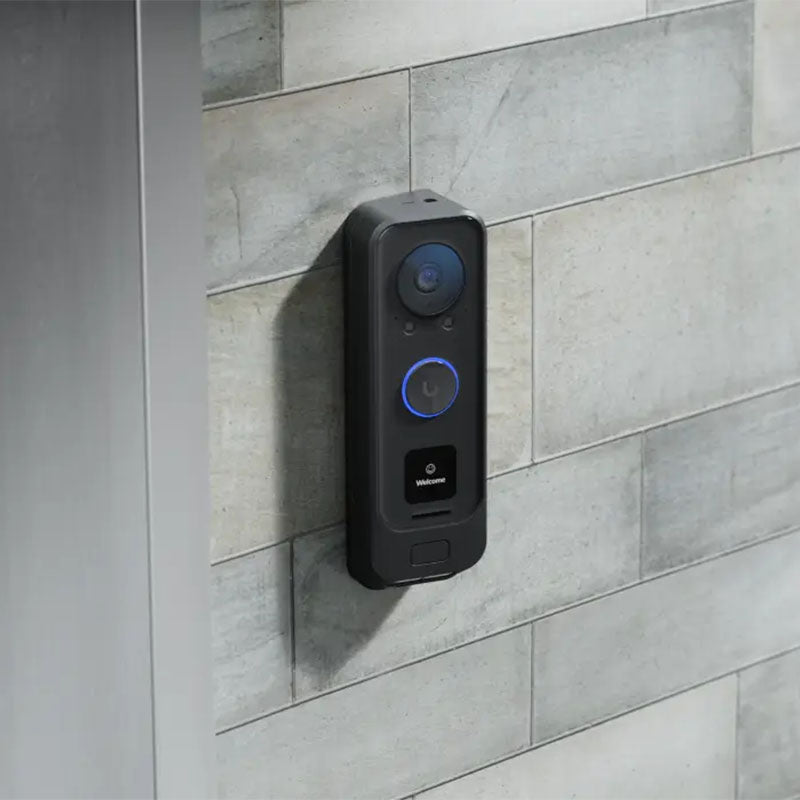

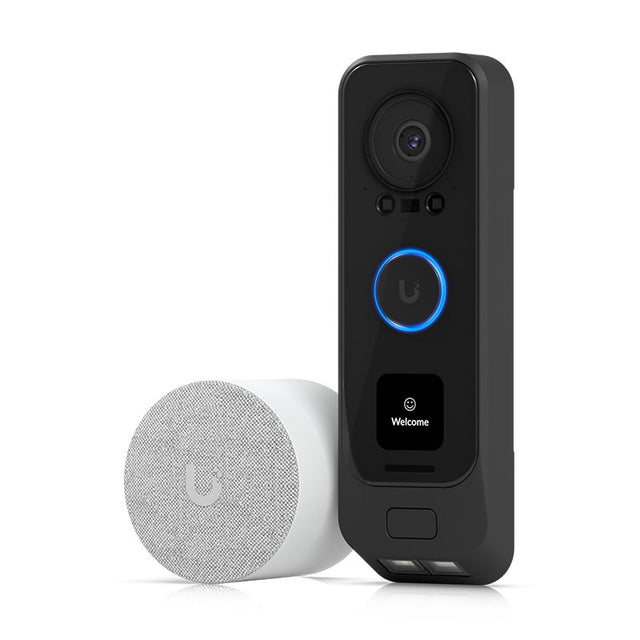

Your premium UniFi doorbell with integrated PoE and included PoE chime for plug-and-play installation.
Please note this model of the G4 Doorbell Pro does NOT have wireless.

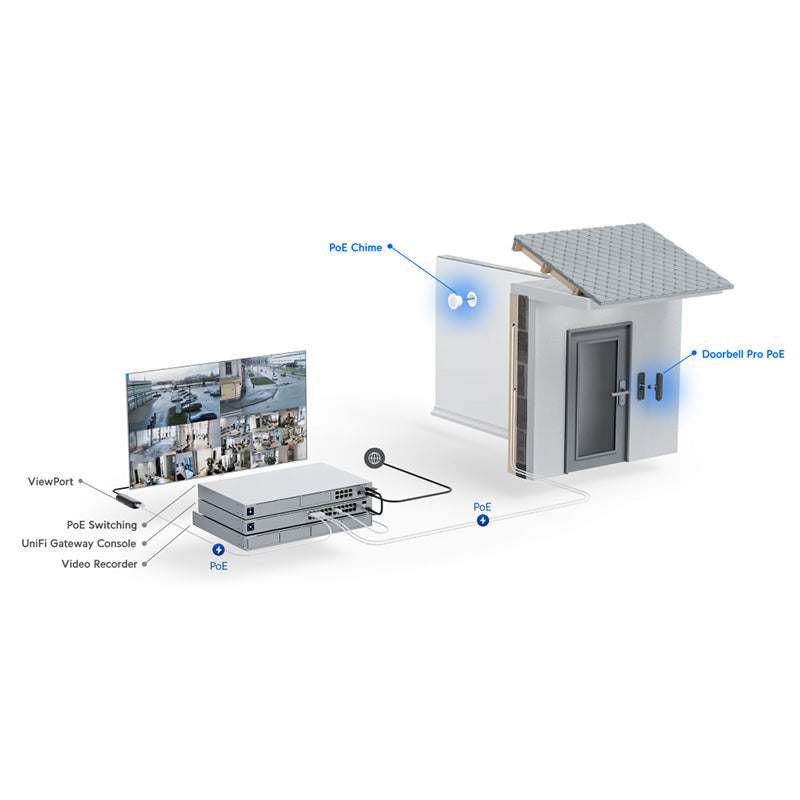

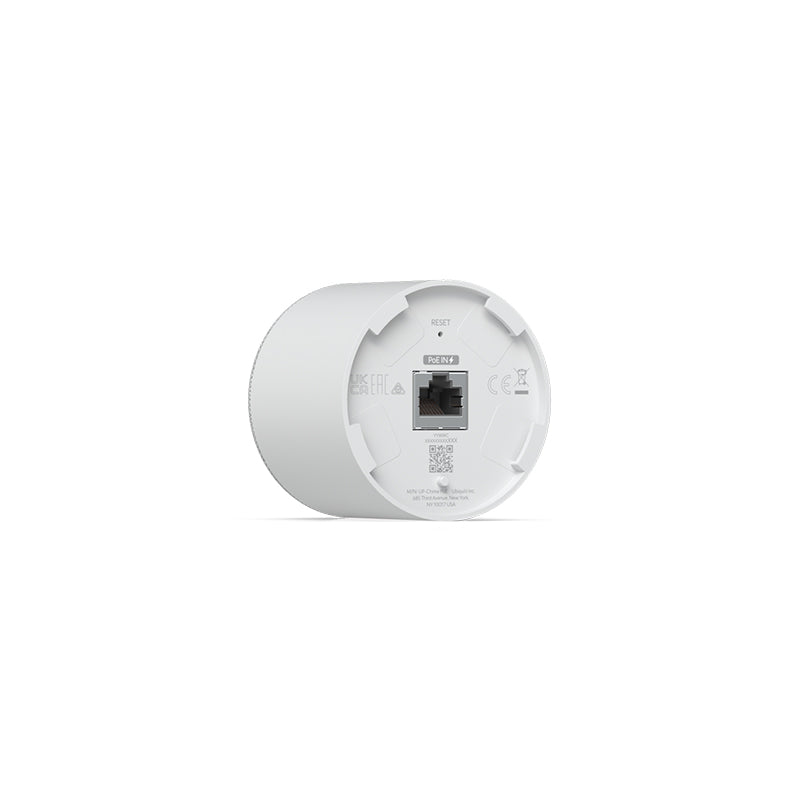

The build we have been waiting for! - Ubiquiti G4 Doorbell Pro with built in RJ45. Ready for direct connection to a PoE source without the need for further adapters. Kit also includes a Chime with built in RJ45, also ready for easy connection direct to a PoE source.
Features:
Improved HDR and low-light performance

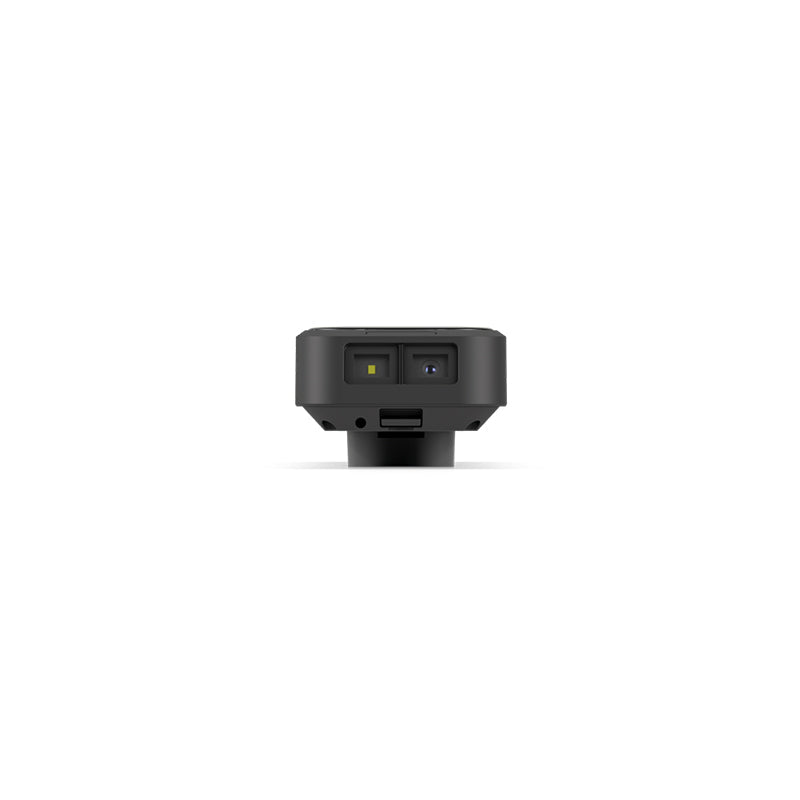

Programmable welcome display and secondary package-detection camera
AI event detections

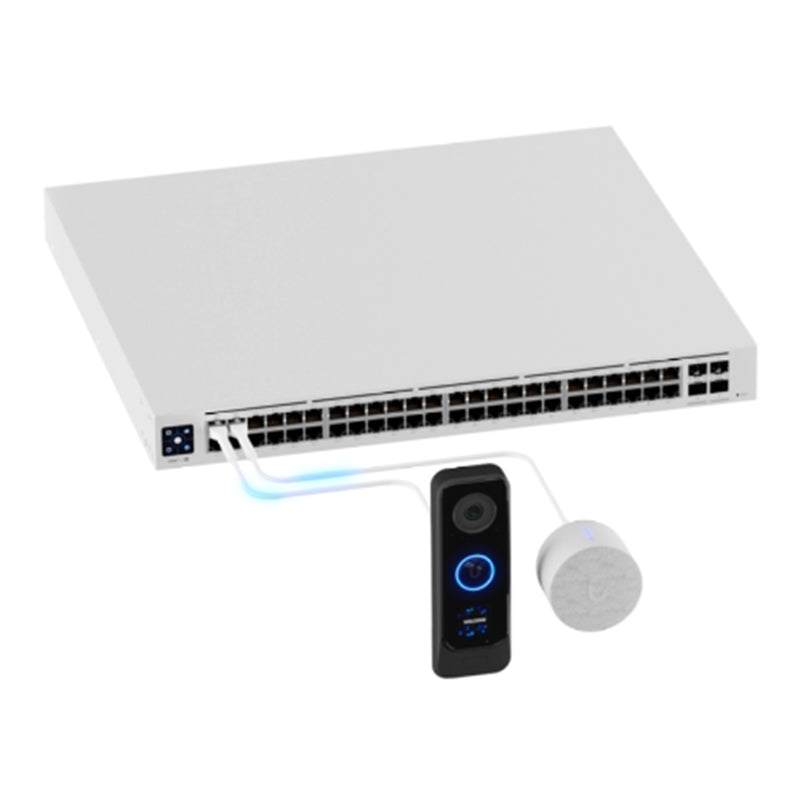

Connect and power using PoE
Integrated 2-way audio

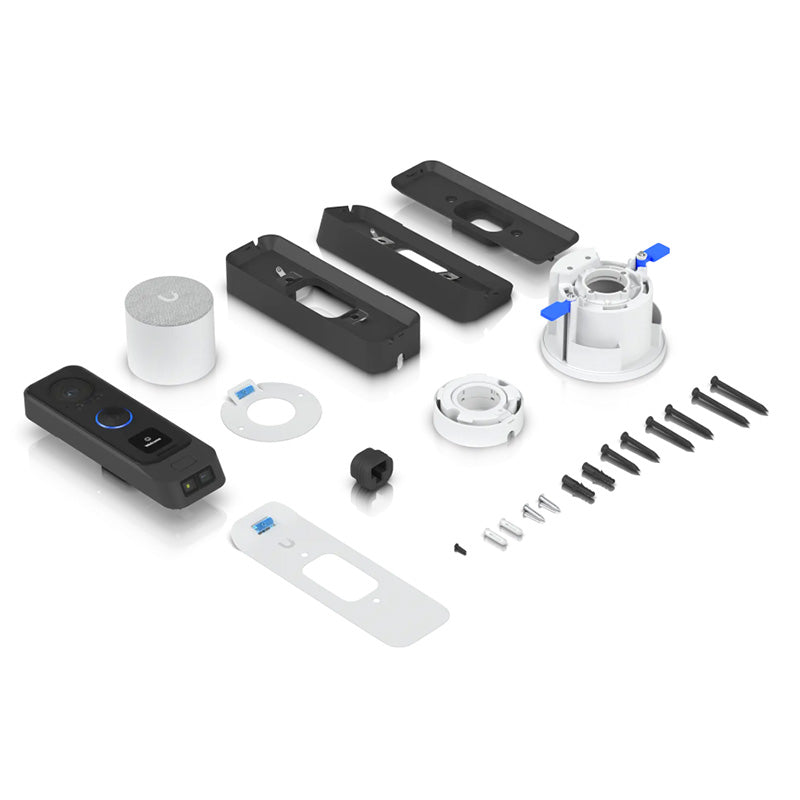

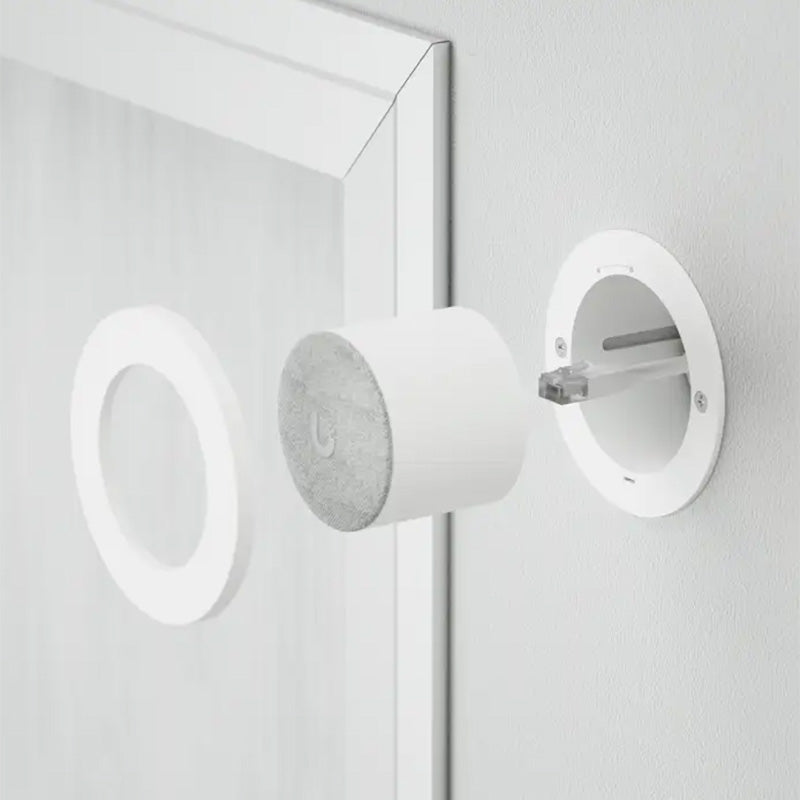

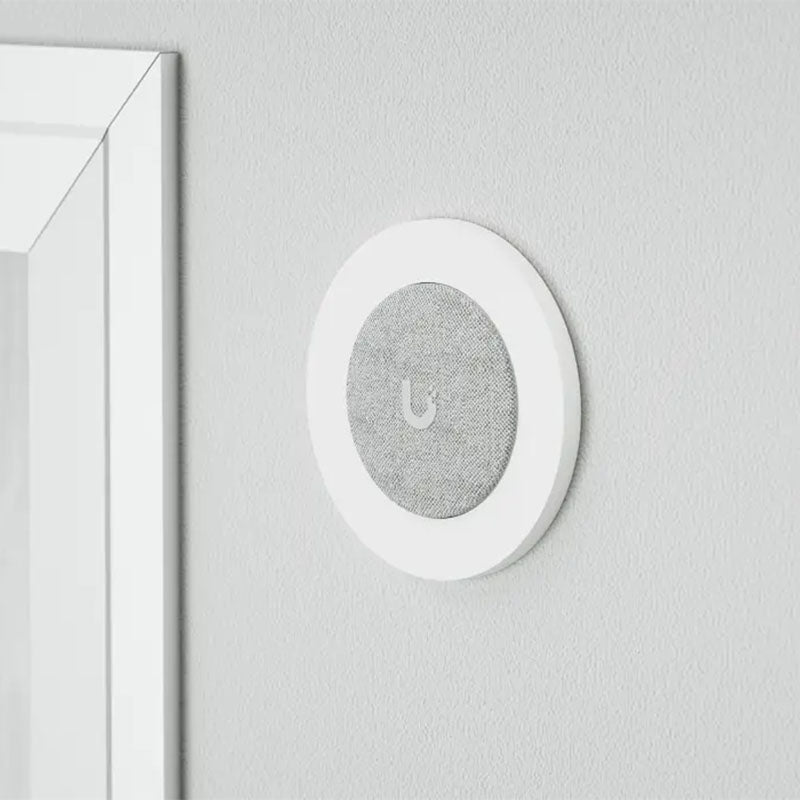

Includes PoE Chime
Weather-resistant (outdoor covered)
Specifications40 specifications · 5 sections
| Overview | |
|---|---|

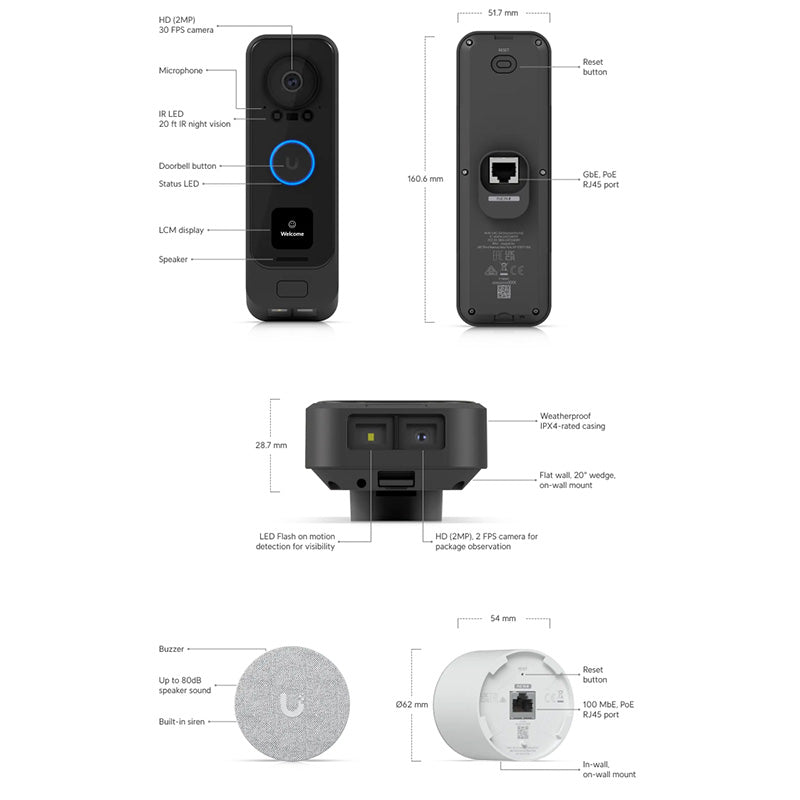

| Dimensions | Device: 160.6 x 51.7 x 35.1 mm (6.3 x 2 x 1.4") / Wall mount: 159.3 x 50.3 x 17.5 mm (6.3 x 1.9 x 0.7") / Wedge: 161.1 x 52.1 x 25.7 mm (6.3 x 2.1 x 1") / On-wall mount: 161.1 x 52.1 x 25.75 mm (6.3 x 2.1 x 1") |
| IR Night Vision | 6 m (20 ft) |
| Resolution | FHD |
| Field of View | Main camera: H: 138°, V: 114°, D: 155° (LDC On) / Main camera: H: 160°, V: 117°, D: 160° (LDC Off) / Package camera: H: 97.5°, V: 79.4°, D: 118.2° |
| Audio | Two-way audio |
| Weatherproofing | IPX4 |

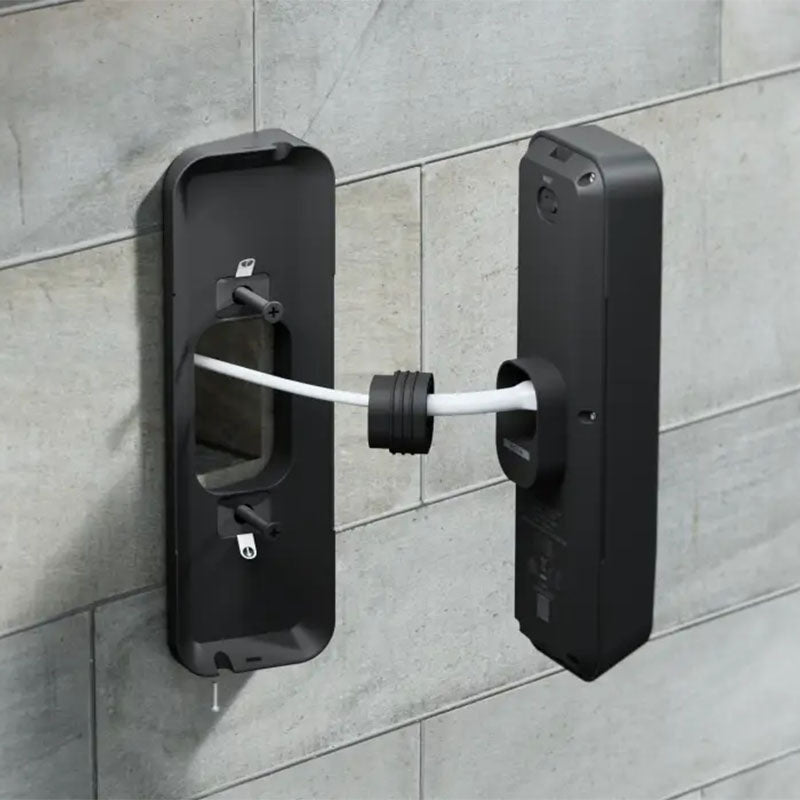

| Mounting | Wall, wedge (Included) / Gang box, junction box (Optional) |
| Performance | |

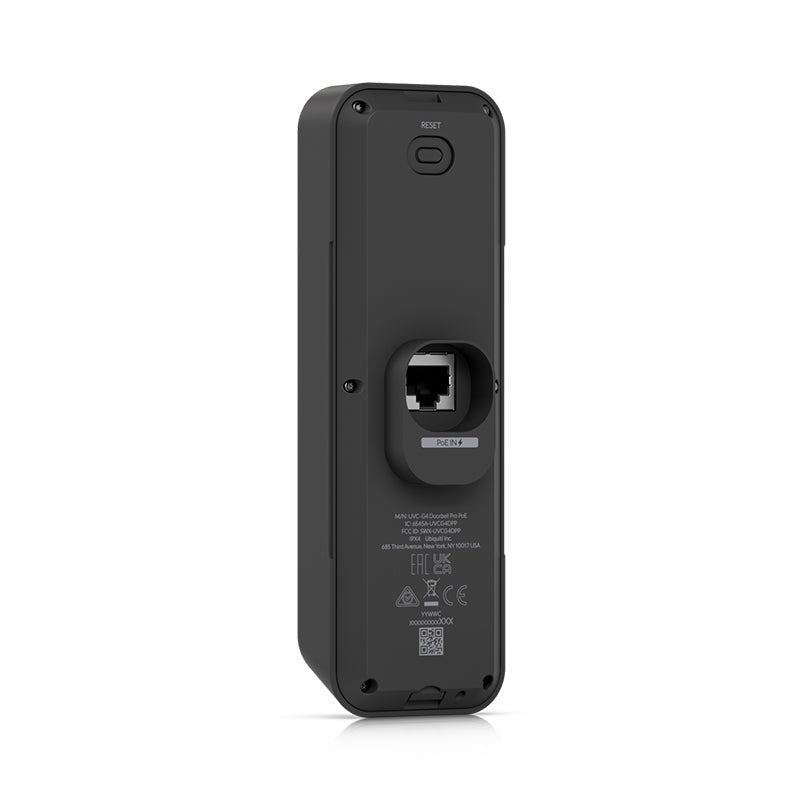

| Networking Interface | GbE RJ45 port |
| Video · Max. Frame Rate | 30 FPS |
| Video · Resolution | Main camera: 2MP 1600 x 1200 (4:3) / Package camera: 2MP 1600 x 1200 (4:3) |
| Optics · Sensor | Main camera: 5MP CMOS / Package camera: 8MP CMOS |
| Optics · Lens | Fixed focal length |
| Optics · Night Mode | Built-in IR LED illumination and IR cut filter |
| Hardware | |
| Max. Power Consumption | 7W |
| Supported Voltage Range | 37—57V DC |
| Power Method | PoE |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| Weight | Device: 264 g (9.3 oz) / Wall mount: 56 g (2 oz) / Wedge: 33 g (1.2 oz) / On-wall mount: 53 g (1.9 oz) |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Flat wall mount: aluminum alloy / 20° wedge mount: polycarbonate |
| Button | (1) Ring button / (1) Factory reset |
| Ambient Operating Temperature | -30 to 40º C (-22 to 104º F) |
| Ambient Operating Humidity | 0 to 90% noncondensing |
| Certifications | CE, FCC, IC, SRRC |
| Software | |
| Mobile app | UniFi Protect iOS™ and Android™ |

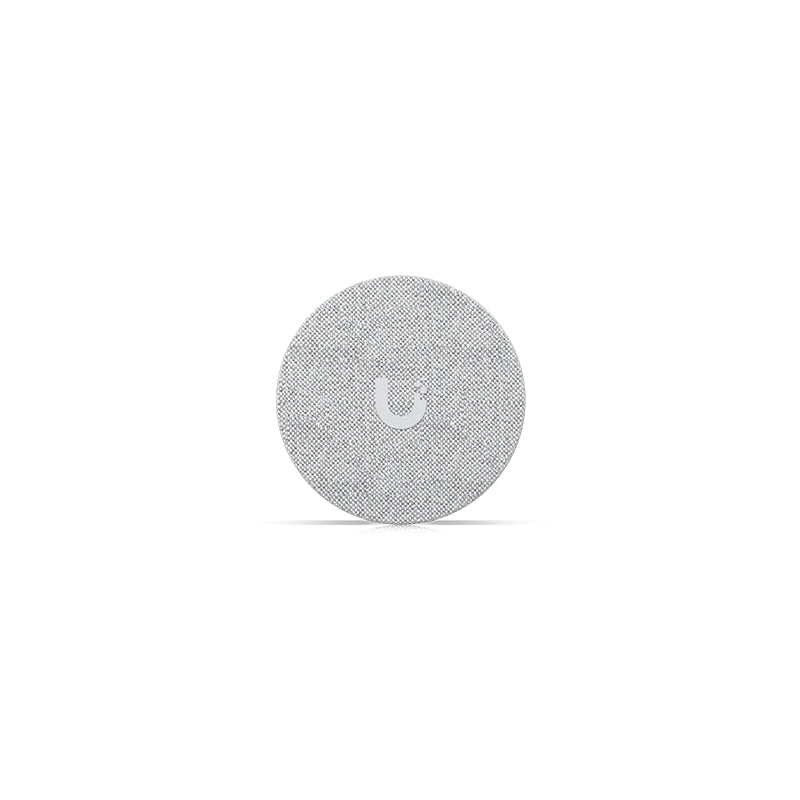

| Chime | |
| Dimensions | Device: ⌀62 x 54 mm (⌀2.5 x 2.1") / In-wall mount: ⌀89 x 63.1 mm (⌀3.5 x 2.5") / On-wall Mount: ⌀62 x 20.2 mm (⌀2.5 x 0.8") |
| Weight | Device: 158 g (5.6 oz) / In-wall mount: 91 g (3.2 oz) / On-wall mount: 28 g (1 oz) |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Polycarbonate, zinc alloy |
| Networking Interface | 10/100 MbE port |
| Power Method | PoE |
| Supported Voltage Range | 44–57V DC |
| Max. Power Consumption | 3W |
| LED | R/G/B/W |
| Buttons | (1) Factory reset |
| Speaker | Yes |
| Buzzer | Yes |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
