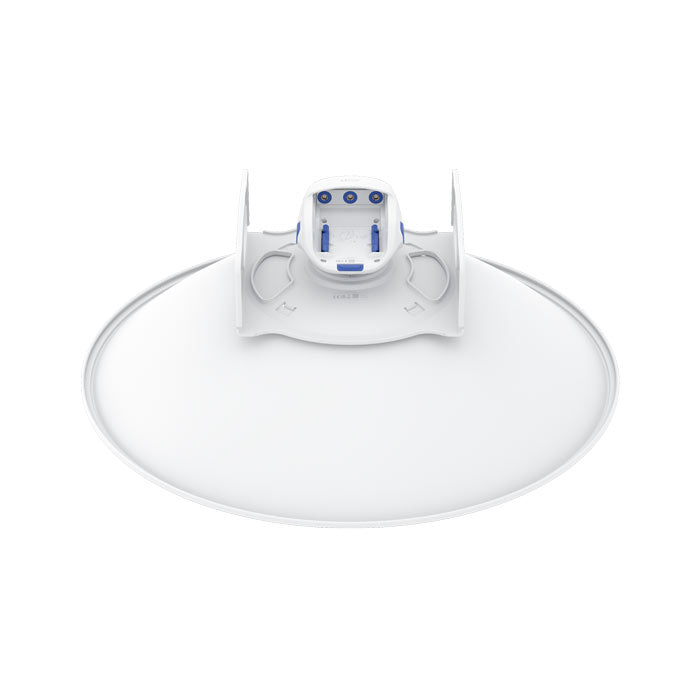

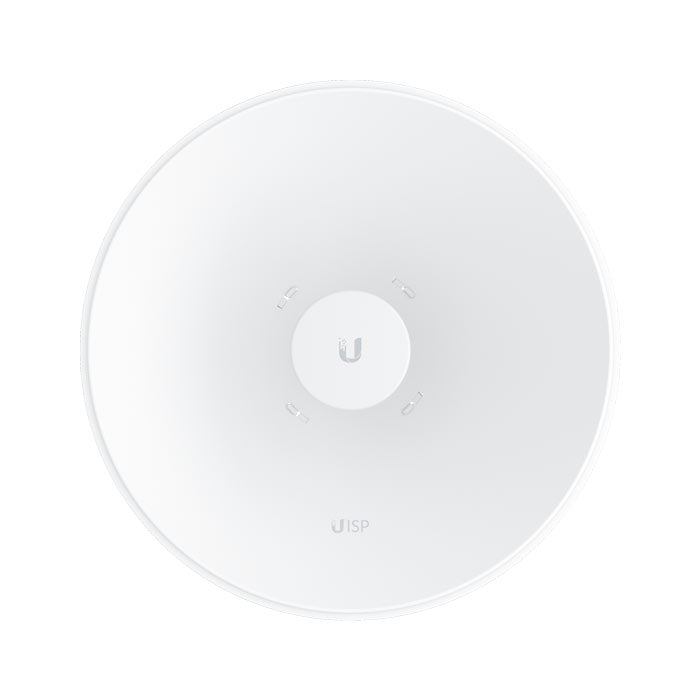

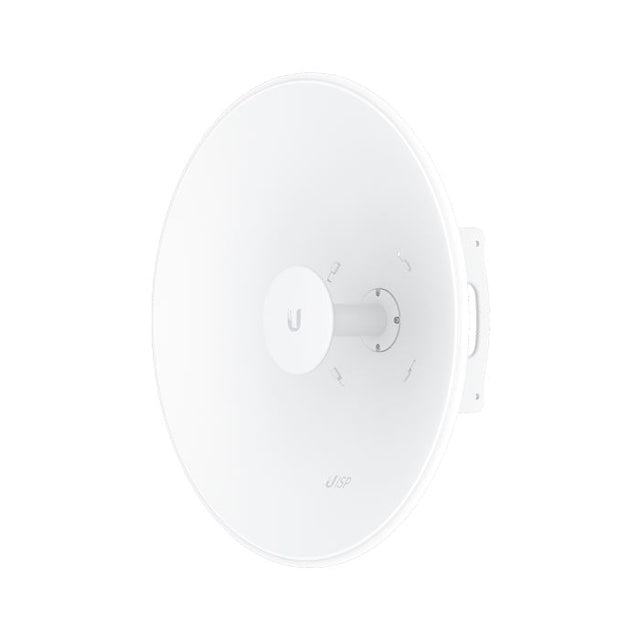

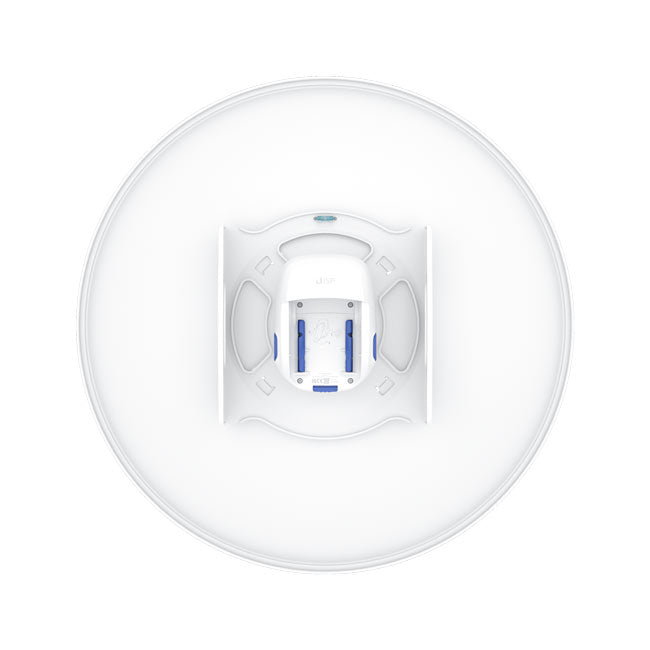

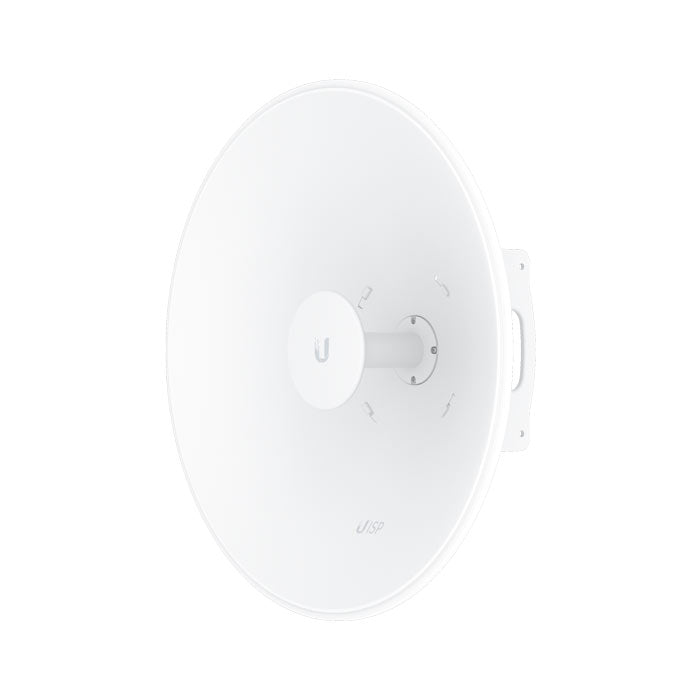

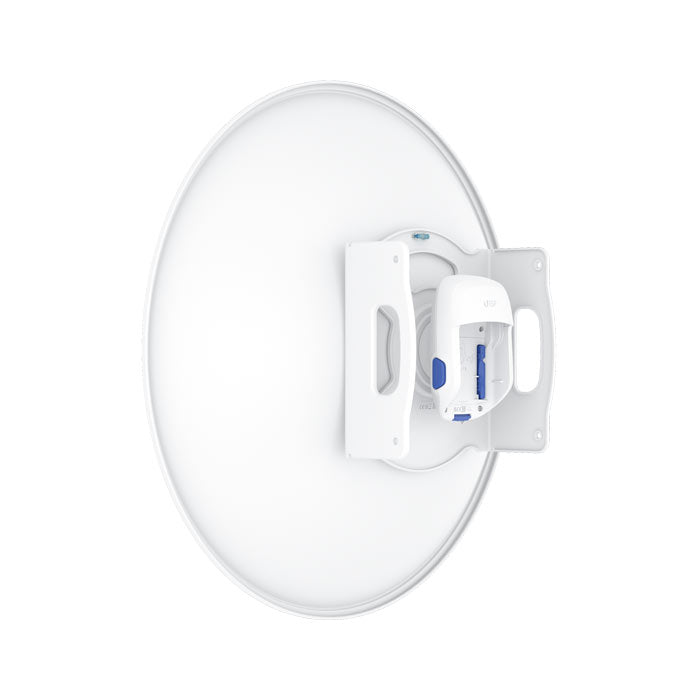

UISP-Dish Ubiquiti UISP Dish, 30 dBi Dish Antenna

Name: UISP-Dish Ubiquiti UISP Dish, 30 dBi Dish Antenna
Brand: Ubiquiti
SKU: UISP-Dish
Price: 181.99 GBP
Availability: InStock

£181.99 GBP

Description

Point-to-point (PtP) dish antenna that covers a wide operating frequency range.

Compatibility:

Wave-MLO5

RP-5AC-Gen2

AF-5XHD

Click HERE to access the Datasheet

Click HERE to access the Installation Guide

Specifications15 specifications · 2 sections

Mechanical
Dimensions	⌀650 x 200 mm (⌀25.6 x 7.9")
Weight	Device: 4.54 kg (10 lb) / Mount: 3.1 kg (6.8 lb)
Enclosure Material	Powder-coated galvanized steel, UV stabilized polycarbonate, aluminum alloy
Wind Survivability	Up to 200 km/h (124 mph)
Wind Loading	860 N at 200 km/h (193 lbf at 124 mph)

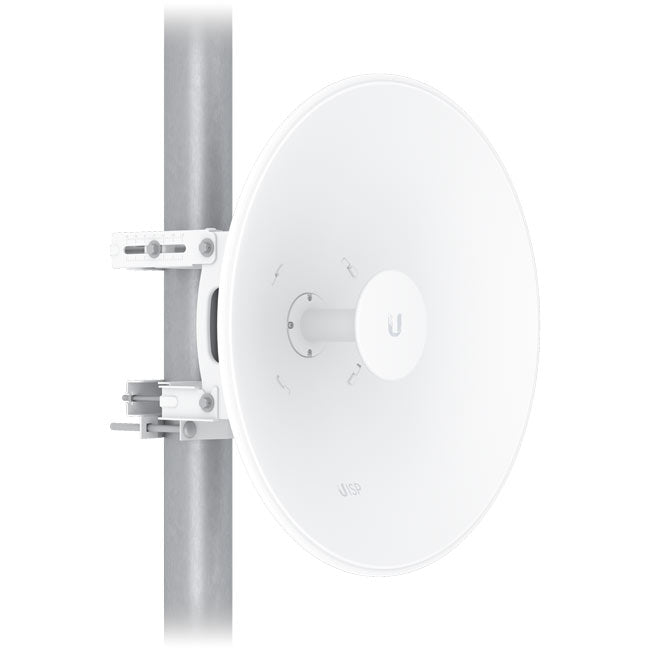

Mounting	Pole Mount / Alignment Mount Included) / Mechanical adjustment: ±15° elevation
Pole Mount Diameter	⌀1.57 to 3.5" (⌀40 to 90 mm)
Weatherproofing	IPX6
Hardware
Frequency Range	5.15 to 6.875 GHz
Gain	30 dBi
Beamwidth	Azimuth: 5 to 6° (3 dB) / 6.5 to 8° (6 dB) / Elevation: 5 to 6° (3 dB) / 6.5 to 8° (6 dB)
Electrical Downtilt	0°
Max. VSWR	2:1
Polarization	Dual-linear
Cross-Pol Isolation	20 dB

Source: Ubiquiti technical specifications, checked 28 Oct 2026.Model UISP-Dish · Ubiquiti's spec sheet
