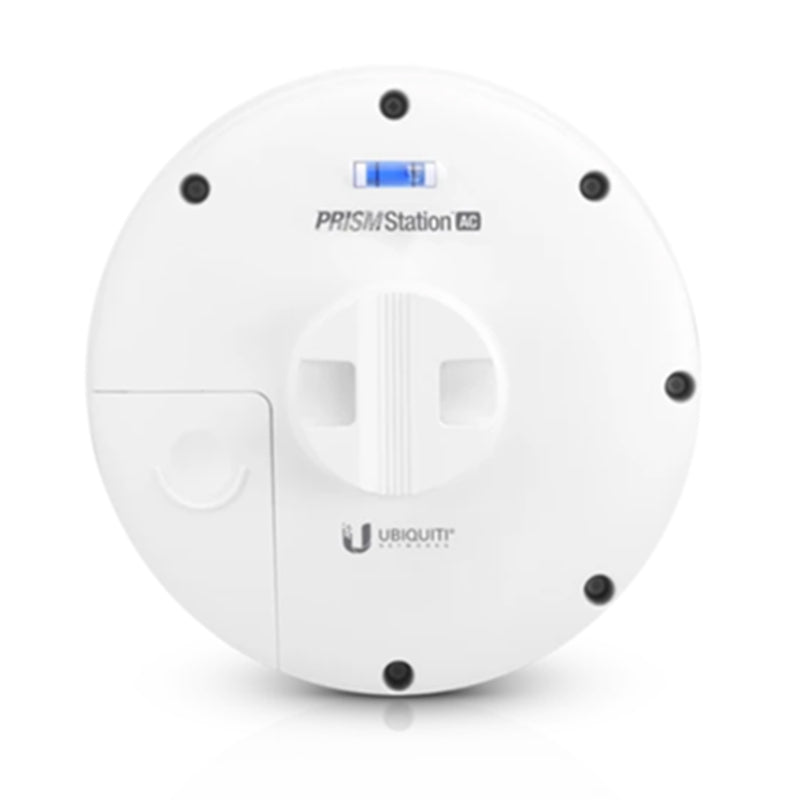

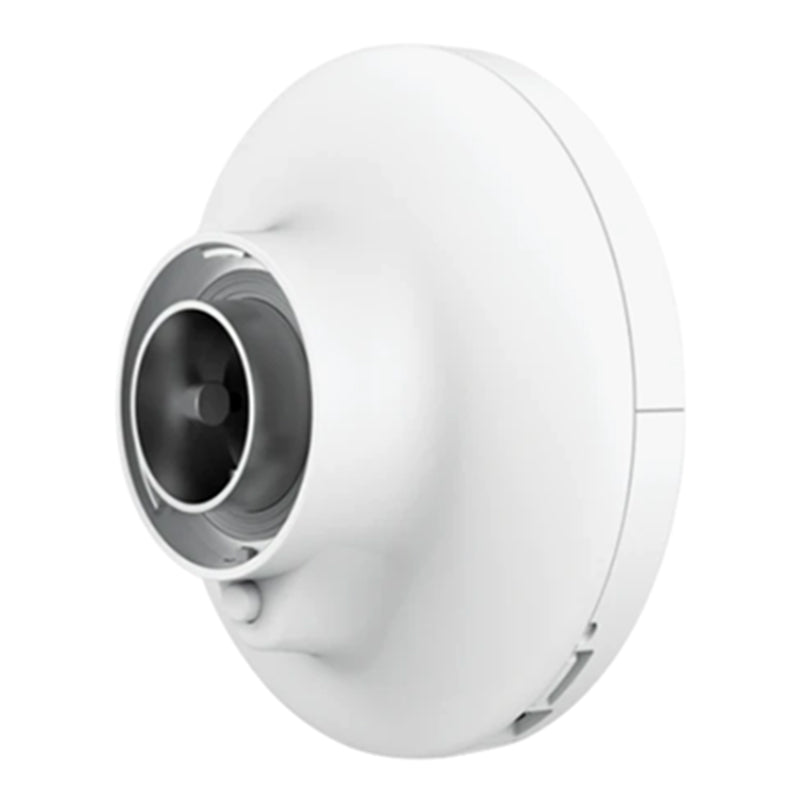

PS-5AC Ubiquiti UISP airMAX PrismStation 5AC
Description
Description
Ubiquiti 5Ghz Prism Base Station - No Antenna
The Ubiquiti PS-5AC PrismStation Outdoor 5GHz WiFi 5 PoE Point-to-Point Link features a die-cast aluminium base and interchangeable horn antenna (antennas sold separately).
The PrismStation 5AC, with proprietary airMAX ac chipset and dedicated management WiFi, isolates beam communications between your devices. Ideal as an AP in crowded RF environments such as urban areas.
Features:
Designed to deliver maximum spectral efficiency with up to 500Mbps+ throughput.
Next-generation airMAX ac technology boosts the advantages of TDMA protocol.
Designed to support high data rates which require dense modulation.
Features multi-radio architecture to power revolutionary RF analytics.
Can be deployed for PtP or PtMP links in high RF noise environments.
Utilises the latest ESD protection to help protect against power surges.
Comprehensive array of diagnostic tools including RF Diagnostics.
Robust die cast aluminium casing to protect against electromagnetic interference.
Intelligent QoS to allow priority to be assigned to voice for seamless streaming.
Specifications21 specifications · 6 sections
| Mechanical | |
|---|---|
| Dimensions | Device: / 155 x 155 x 104 mm (6.1 x 6.1 x 4.1") / Mounting: / 83 x 117 x 69 mm (3.3 x 4.6 x 2.7") |
| Weight | Device: 0.8 kg (1.7 lb) / Mounting: 0.8 kg (1.7 lb) |

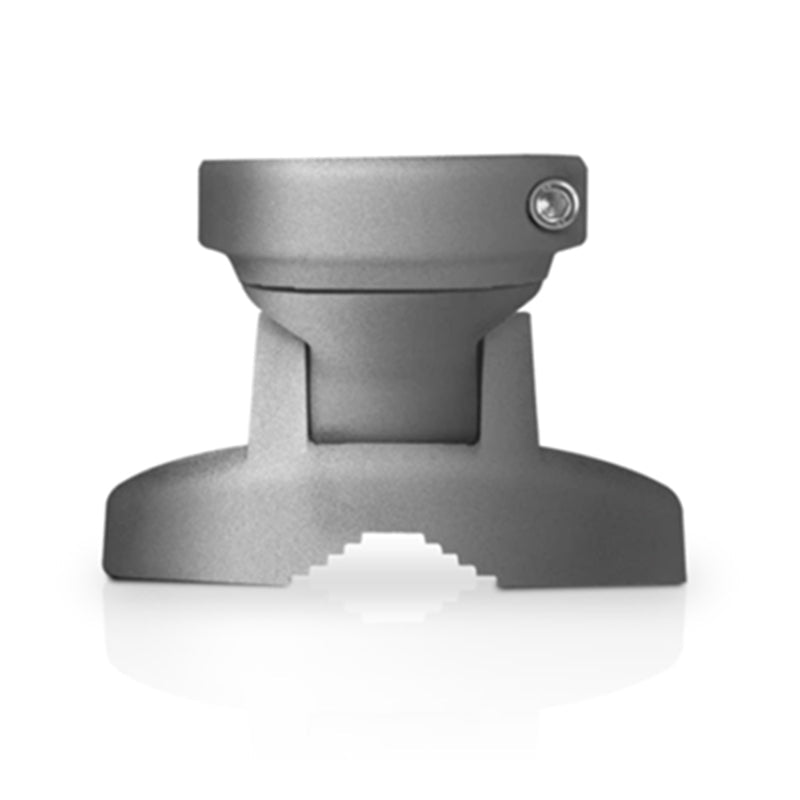

| Mounting | Pole Mount (Included) |
| Wind Loading | 31 N at 200 km/h (7 lbf at 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Hardware | |
| Networking Interface | (1) GbE RJ45 port |
| Power Method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power Supply | 24V, 1A gigabit PoE adapter (Included) |
| Supported Voltage Range | 20—27V DC |
| Max. Power Consumption | 10W |
| RF Connections | (1) GPS |
| Ambient Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 05157-18-08356 |
| Software | |
| QoS | WMM packet classification with user-level priority: High, Medium, Low |
| System | |
| Max. VSWR | 2:1 |
| Polarization | Dual-Linear |
| Radio Frequency | |
| Supported Frequency Range · Worldwide | 5150 - 5875 MHz |
| Supported Frequency Range · US/CA | U-NII-1: 5150-5250 MHz / U-NII-2A: 5250-5350 MHz / U-NII-2C: 5470-5725 MHz / U-NII-3: 5725-5850 MHz |
| Management Radio (MHz) | |
| Supported Frequency Range · Worldwide | 2412 - 2472 MHz |
| Supported Frequency Range · US/CA | 2412 - 2462 MHz |
