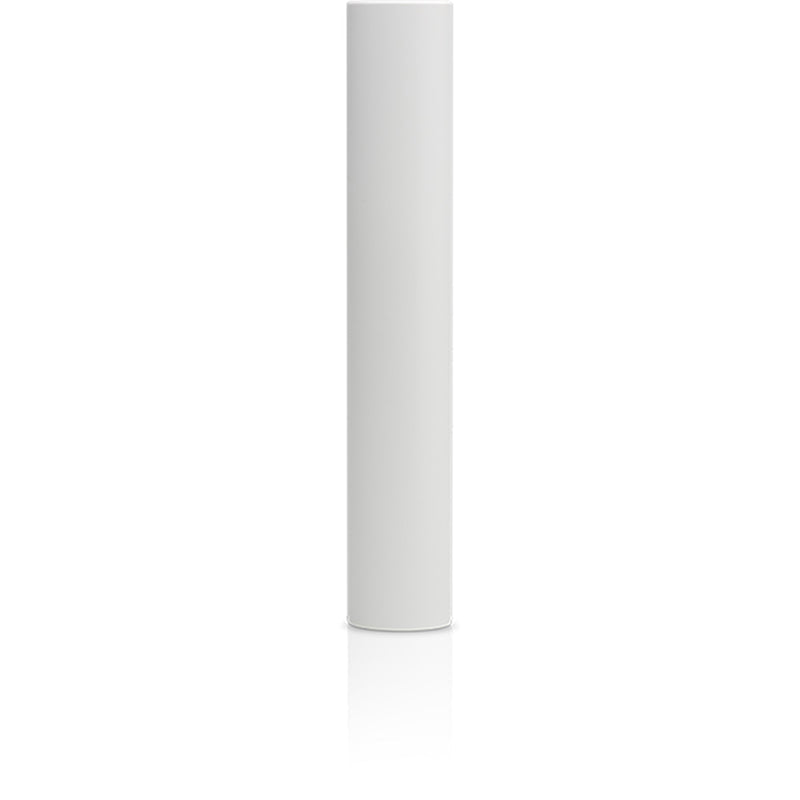

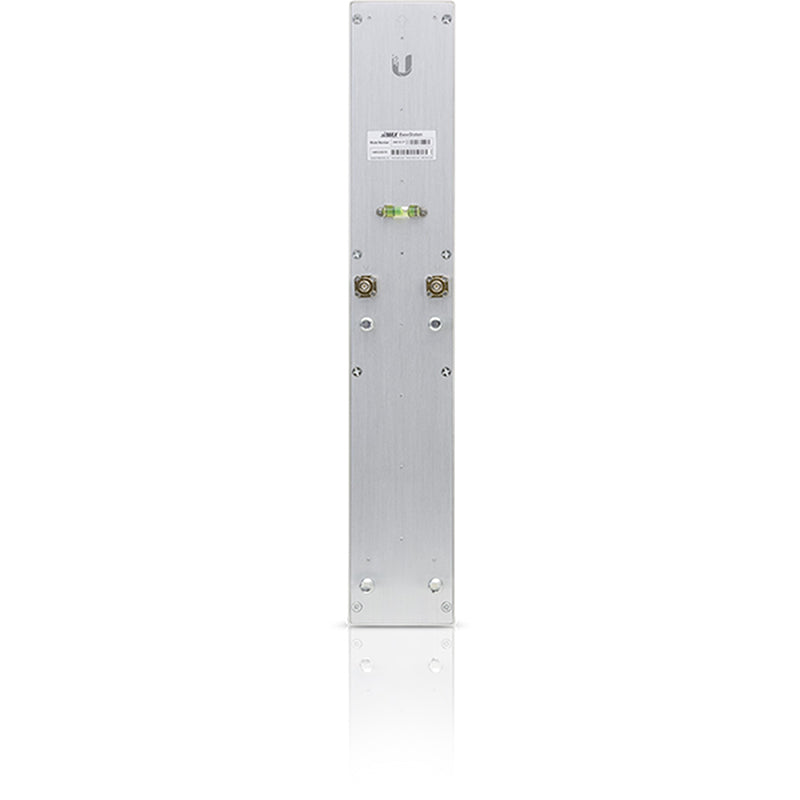

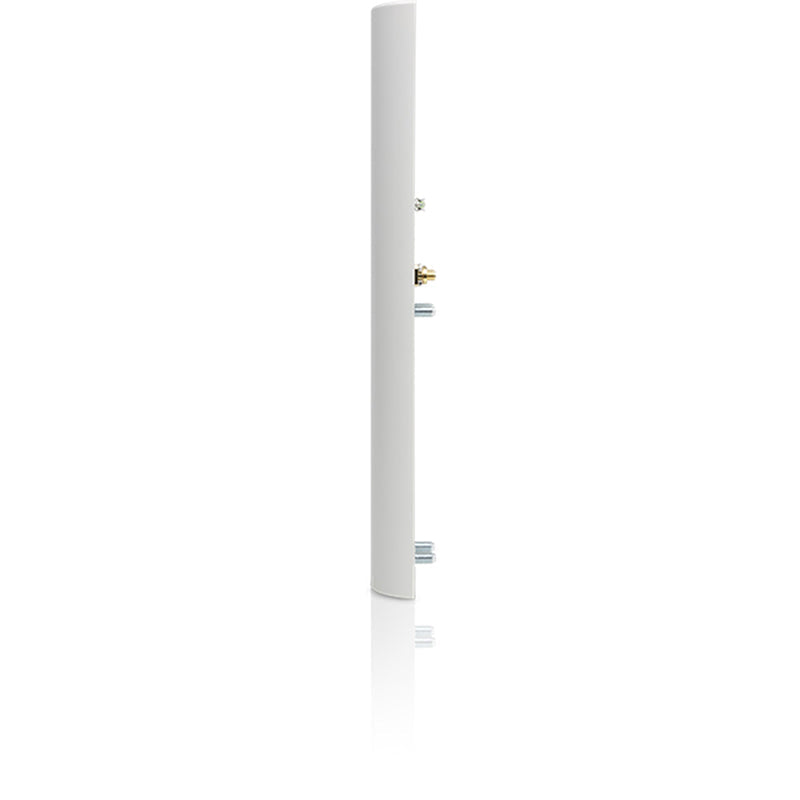

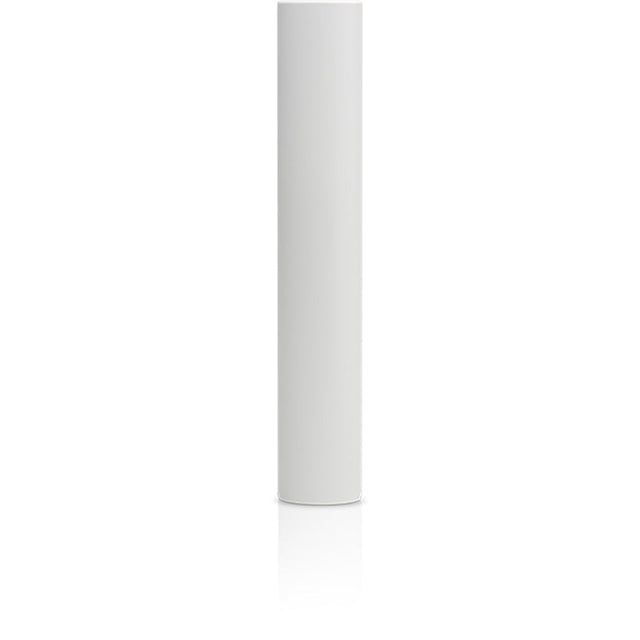

AM-5G17-90 - Ubiquiti airMAX 5 GHz, 17 dBi, 90º Sector Antenna

£64.55 GBP

Description

The Ubiquiti AM-5G17-90 is a high-performance 5 GHz sector antenna designed for Point-to-MultiPoint (PtMP) networks. Operating across a frequency range of 4.90 - 5.85 GHz, this airMAX 2x2 MIMO BaseStation antenna delivers 16.1 - 17.1 dBi gain with a 90º beamwidth, making it ideal for providing sector coverage in wireless deployments.

Pair the airMAX Sector Antenna with a Rocket M BaseStation to create robust wireless infrastructure. The AM-5G17-90 features dual linear polarization and 22 dB minimum cross-pol isolation, ensuring reliable performance in demanding RF environments. Built to withstand harsh outdoor conditions, this antenna offers 200 km/h (125 mph) wind survivability.

Key Features:

Frequency: 4.90 - 5.85 GHz
Gain: 16.1 - 17.1 dBi
90º sector beamwidth
8° elevation beamwidth
4° electrical downtilt
Dual linear polarization
22 dB minimum cross-pol isolation
Dimensions: 367 x 63 x 41 mm (14.45 x 2.48 x 1.61")
Weight: 1.1 kg (2.43 lb) with mount included
Wind survivability: 200 km/h (125 mph)
Maximum VSWR: 1.5:1
Universal pole mount, Rocket bracket, and weatherproof RF jumpers included

Ideal for: WISPs, enterprise networks, and network operators requiring reliable sector coverage in 5 GHz wireless networks, particularly for base station deployments in Point-to-MultiPoint architectures.

Compatible Products

Rocket M5 BaseStation: 5 GHz frequency band with 150+ Mbps throughput and plug-and-play integration with airMAX antennas.

Rocket 5AC Lite: airMAX AC Technology for up to 500+ Mbps throughput.

Frequently asked questions5 questions

What is the AM-5G17-90 used for?

It is a 5 GHz sector antenna for Point-to-MultiPoint (PtMP) networks, providing sector coverage from a base station. It suits WISPs, enterprise networks and network operators running 5 GHz wireless deployments.

What frequency range, gain and coverage does it offer?

It operates from 4.90 to 5.85 GHz with 16.1 to 17.1 dBi gain. Beamwidth is 90º horizontally and 8° in elevation, with 4° electrical downtilt.

Which radios can I pair it with?

It is designed to be paired with a Rocket M BaseStation. Compatible products include the Rocket M5 BaseStation and the Rocket 5AC Lite.

What mounting hardware is included?

A universal pole mount, a Rocket bracket and weatherproof RF jumpers are included. The antenna weighs 1.1 kg (2.43 lb) with the mount fitted.

Can it handle harsh outdoor conditions?

It is built for outdoor use and has a wind survivability rating of 200 km/h (125 mph). It also features dual linear polarization with 22 dB minimum cross-pol isolation for demanding RF environments.
